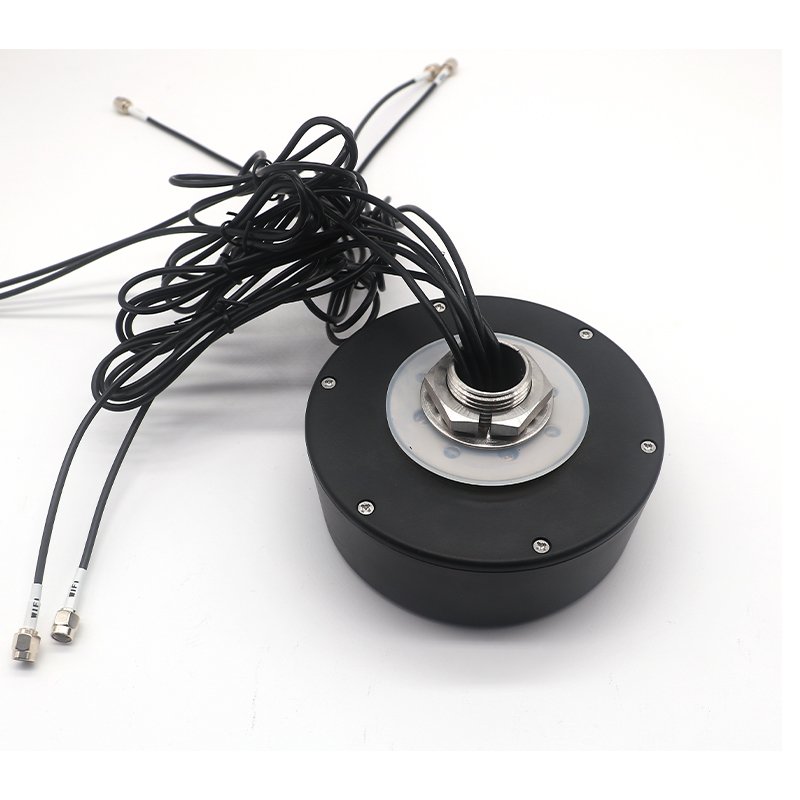

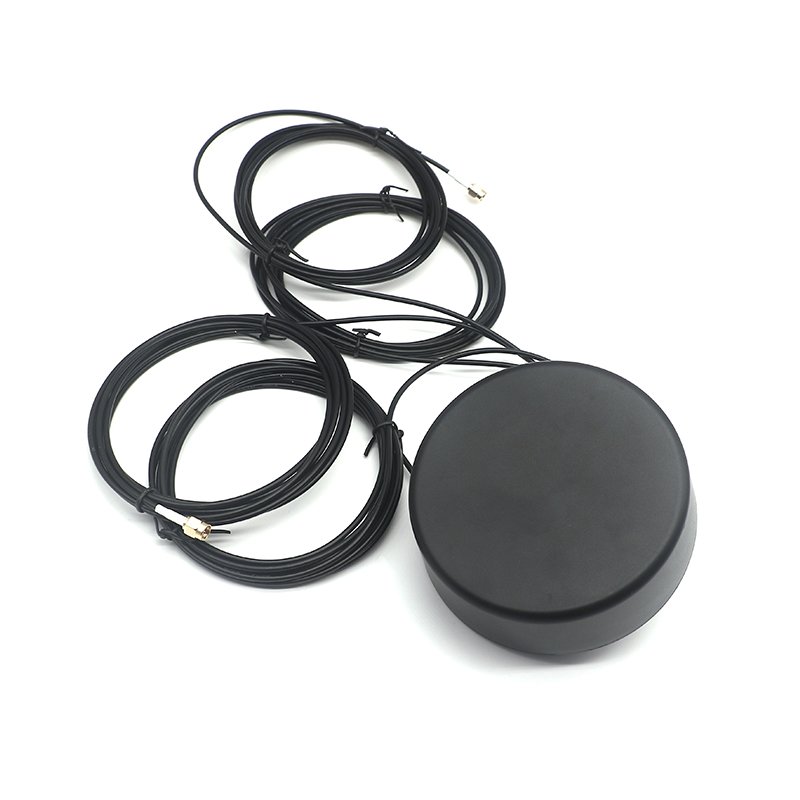

120*43.4mm Factory Manufacturer High-gain Waterproof Cabinet Antenna 5G/4G/LTE/2.4G/WIFI Combination Outdoor Omni Directional Antenna
120*43.4mm Factory Manufacturer High-gain Waterproof Cabinet Antenna 5G/4G/LTE/2.4G/WIFI Combination Outdoor Omni Directional Antenna
Feature:
● Metal-resistant antenna, suitable for installation on metal surfaces.
● Invisible antenna, designed with a small footprint.
● Large magnet design prevents slipping when installed on metal sides.
● UV material shell, resistant to outdoor wind and rain.
● Easy to install or replace, with slotted locking nuts and metal bolts for installation.
● Omni-directional radiation pattern
● Invisible antenna, designed with a small footprint.
● Large magnet design prevents slipping when installed on metal sides.
● UV material shell, resistant to outdoor wind and rain.
● Easy to install or replace, with slotted locking nuts and metal bolts for installation.
● Omni-directional radiation pattern
product details
|
Frequency Range (MHz)
|
2.4g/4g/5g/customized
|
|
Gain (dBi)
|
5
|
|
Horizontal Beamwidth (°)
|
360
|
|
VSWR
|
≤1.5
|
|
Input Impedance (Ω)
|
50
|
|
Maximum Power (W)
|
50
|
|
Lightning Protection
|
DC grounding
|
|
Mechanical Characteristics
|
|
|
Connector type
|
SMA-J
|
|
Cable Type
|
RG174 or can be customized
|
|
Cable length (Meter)
|
1.5 (customizable)
|
|
Material
|
ABS
|
|
Mount way
|
Screw
|
|
Dimensions (mm)
|
14*80mm
|
|
Weight (g)
|
25
|
