PCB Antenna

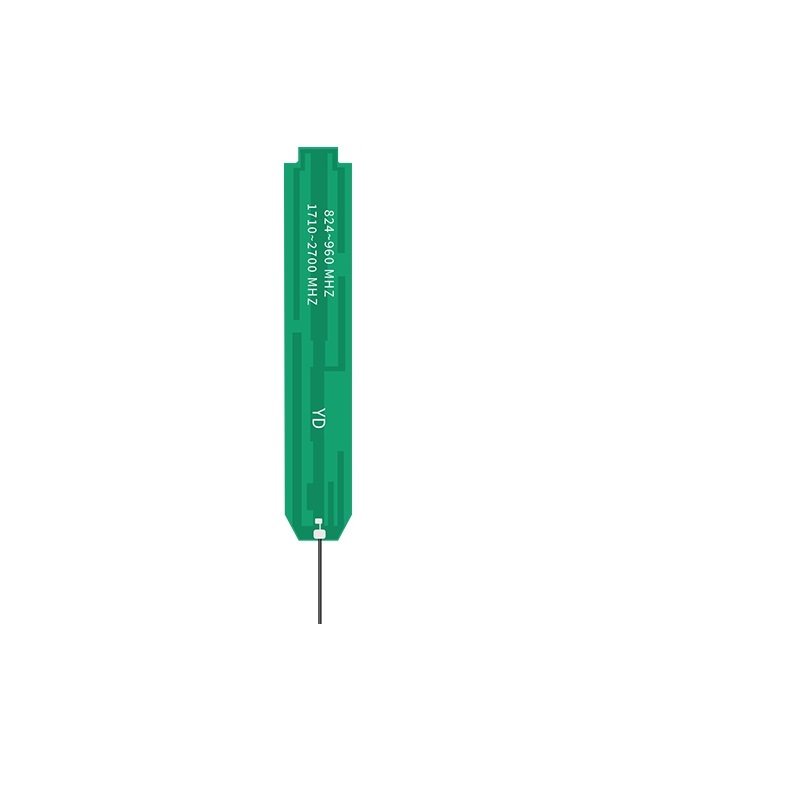

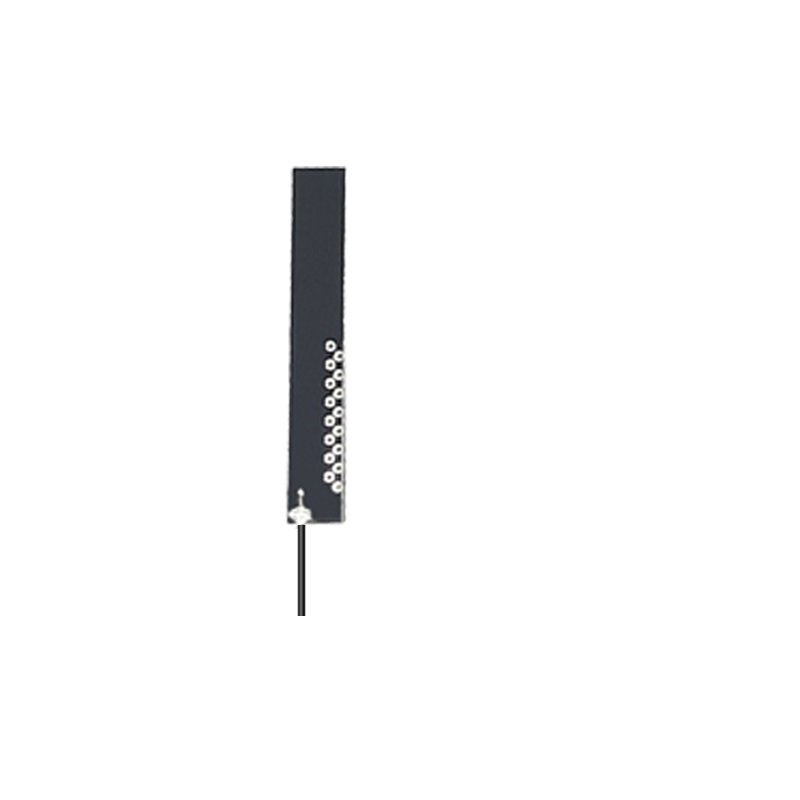

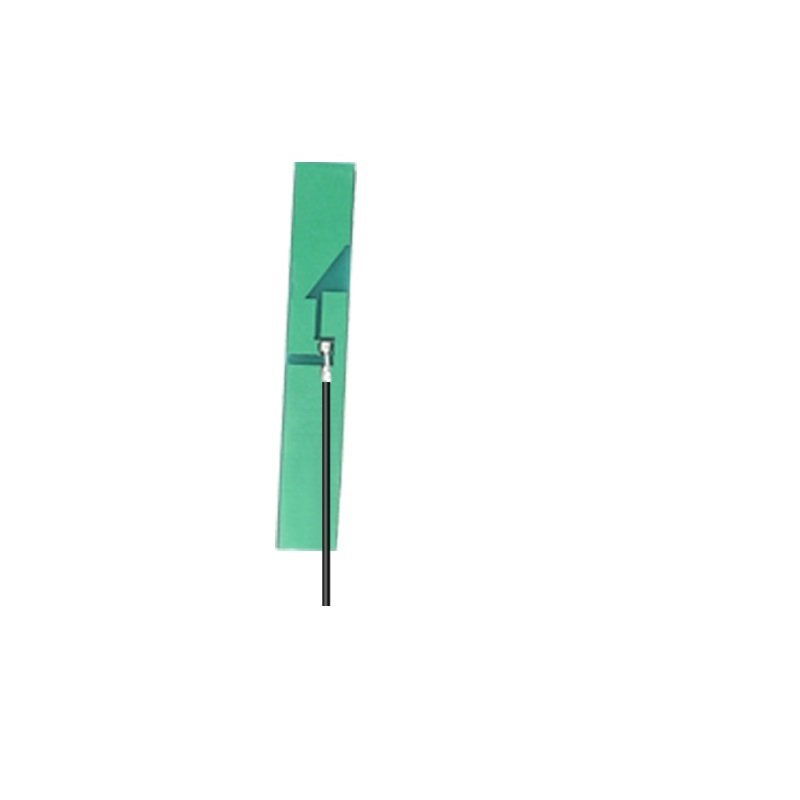

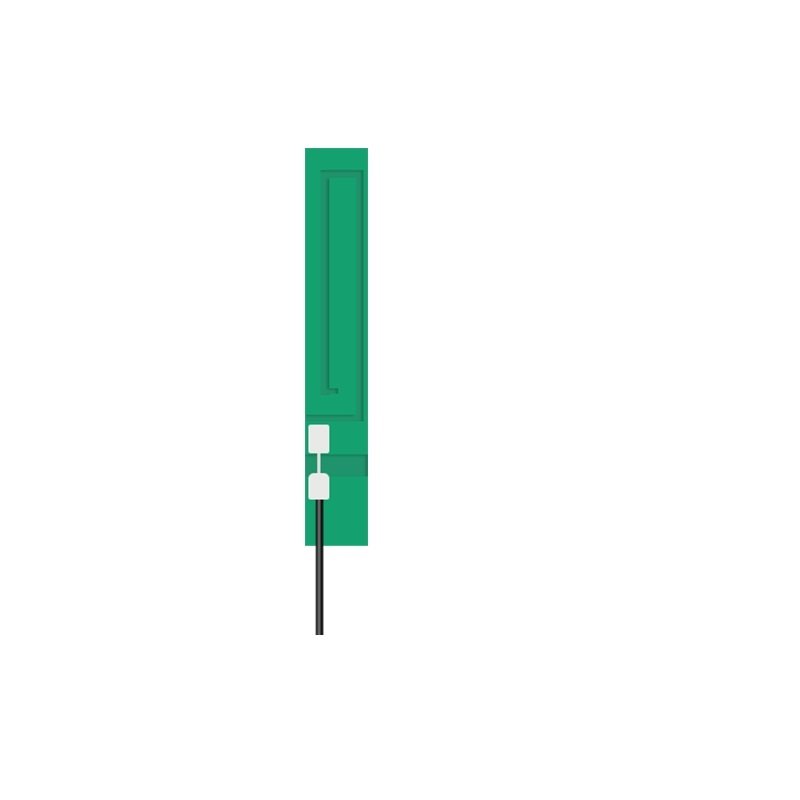

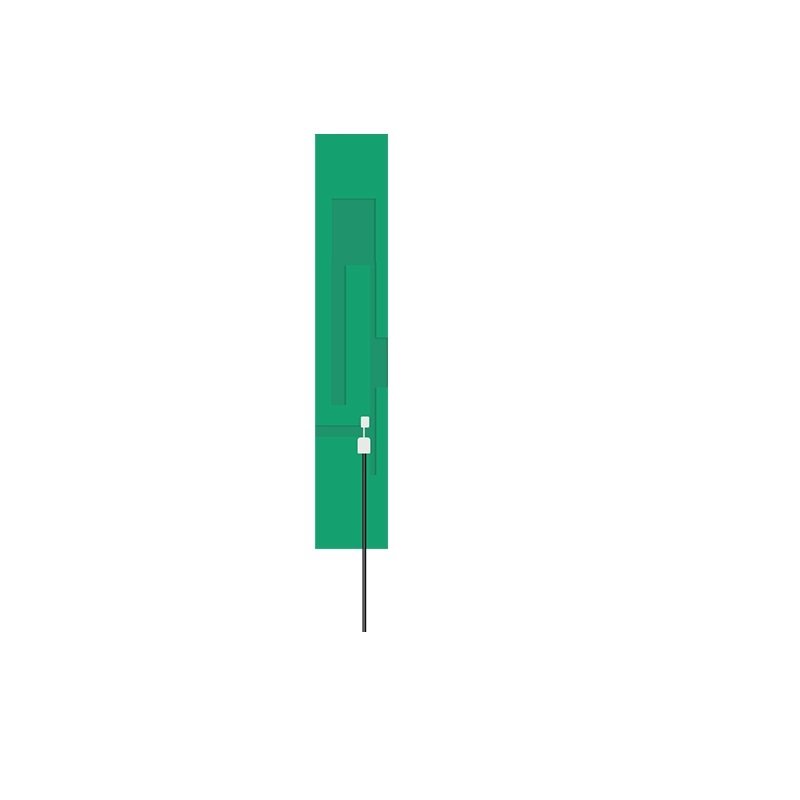

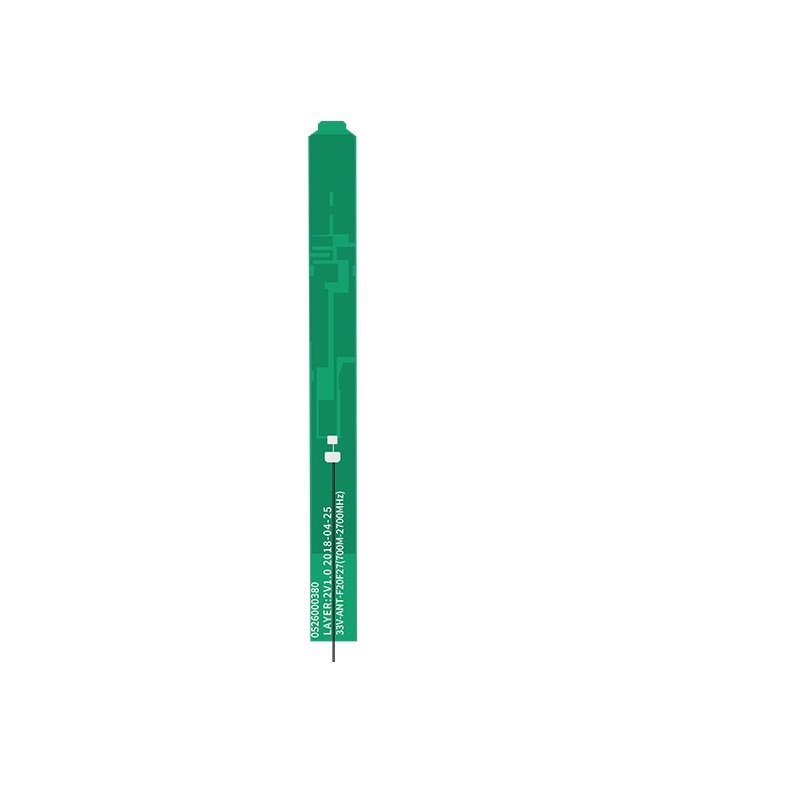

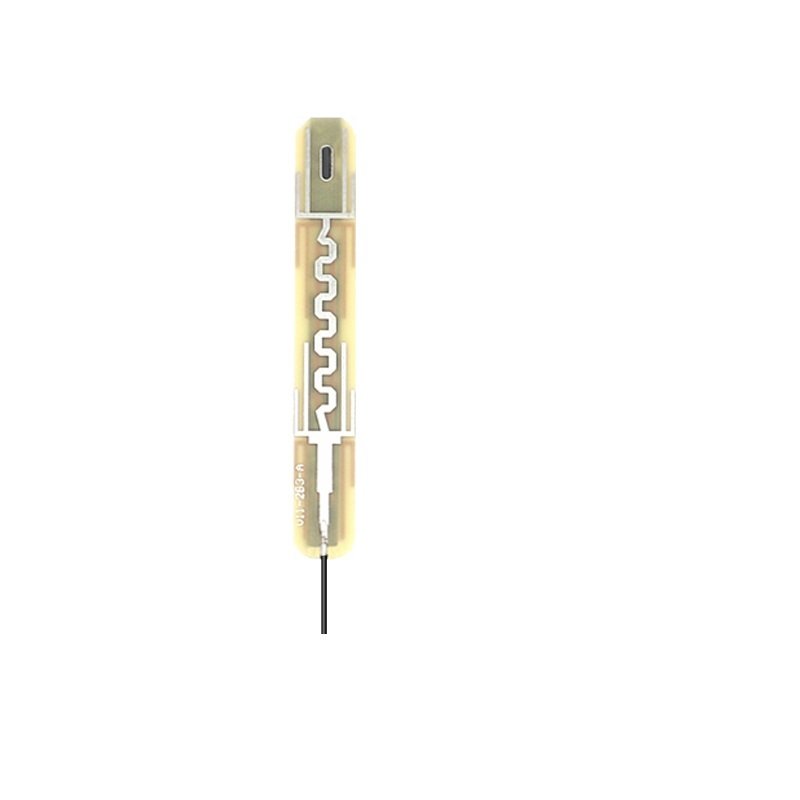

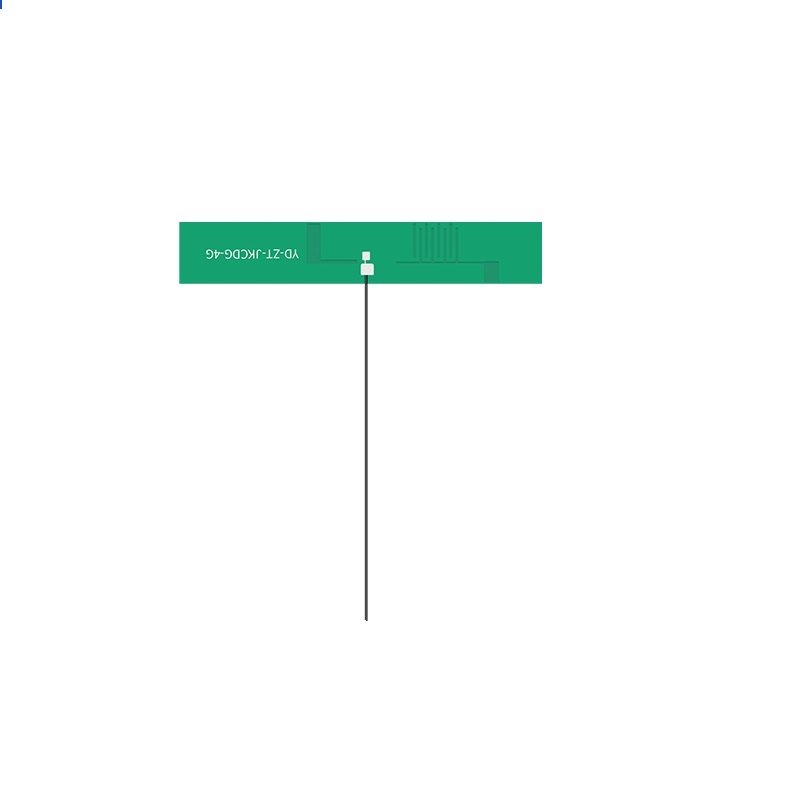

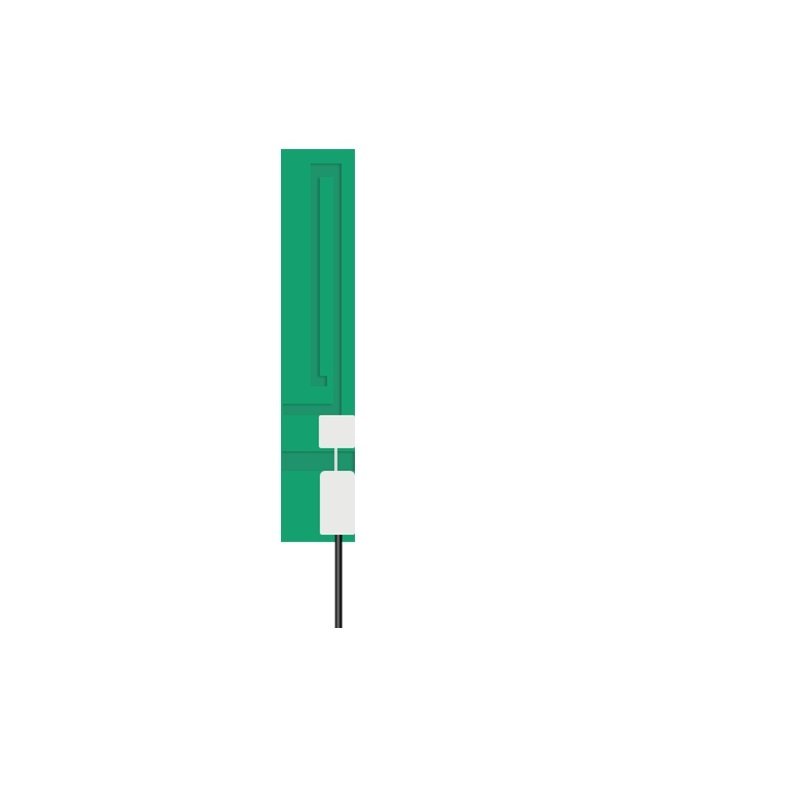

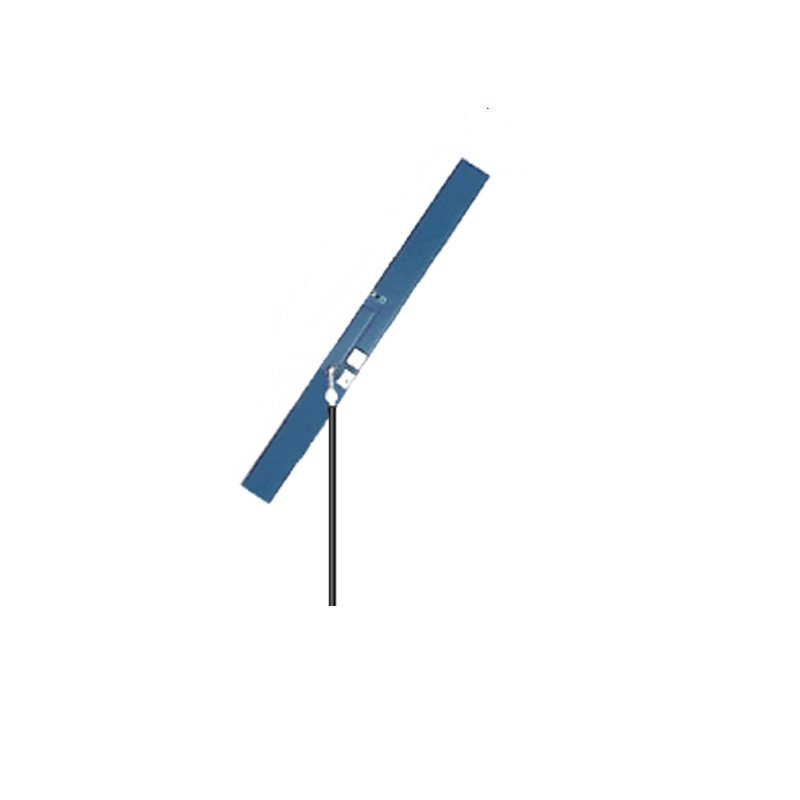

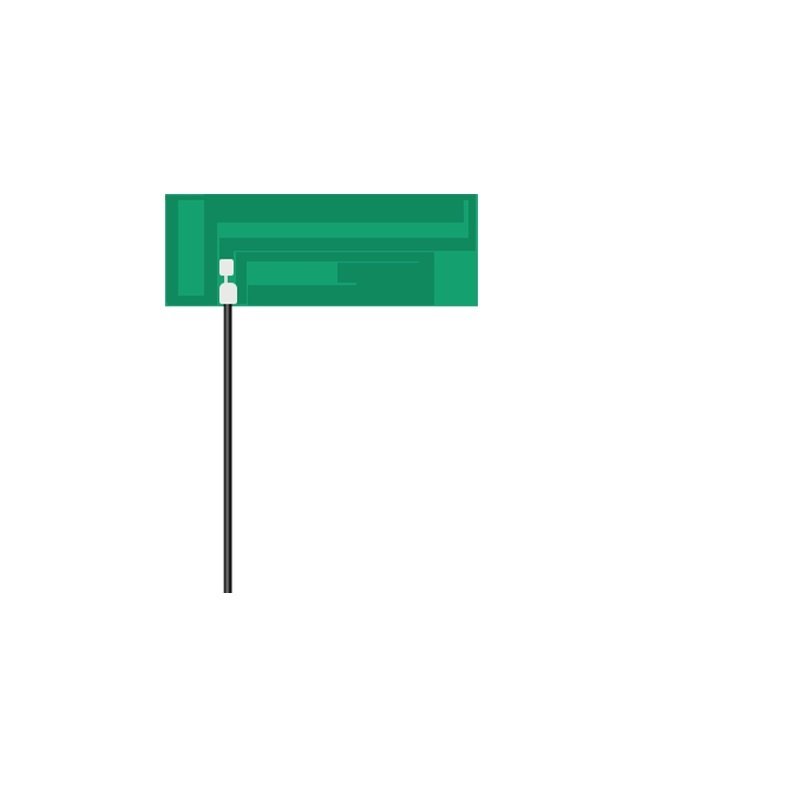

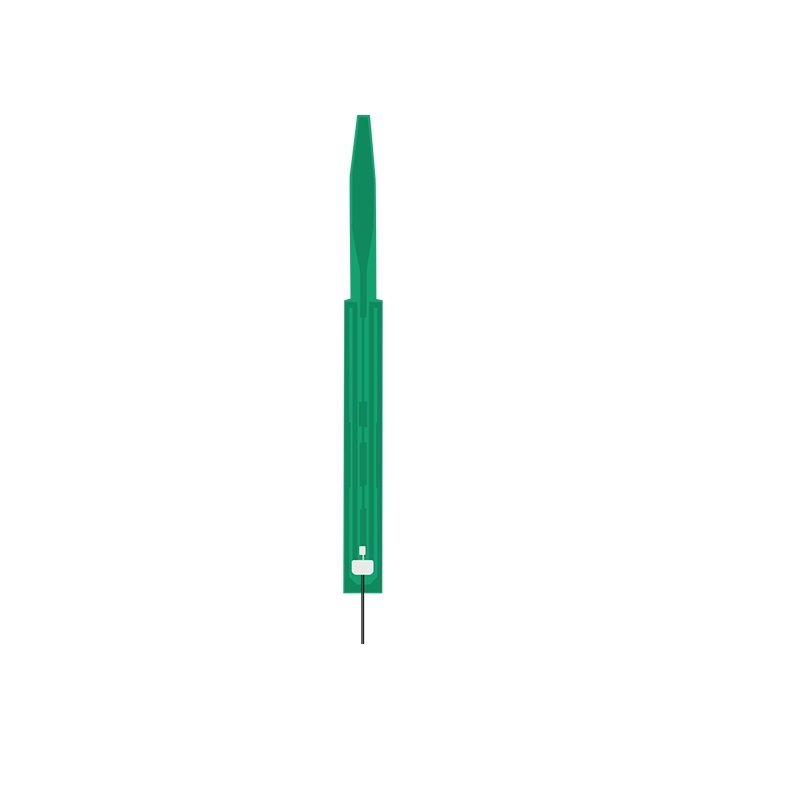

The PCB antenna range covers internal circuit-board antennas for GSM, 4G LTE, 3G, 2.4G and 5.8G WiFi, Bluetooth, LoRa and 433MHz modules. Flexible PCB versions with adhesive backing mount directly inside the housing, and wide-band models cover 698-2700MHz for full-band LTE devices. Gain options reach 5dBi on dual-band smart home module models, and patch dimensions span compact 35mm parts up to 154mm flexible designs.

Most PCB antenna models connect through RF1.13 cable with IPX or U.FL interfaces, and U.FL, W.FL, MHF3 or MHF4 terminations can be customized together with cable length; a 433MHz version ships with a 15cm 1.13 cable at 5dBi gain. Special versions include a temperature-stable wide-band PCB antenna for medical implantable communication. Band, size and connector can all be tailored to the host module layout.
