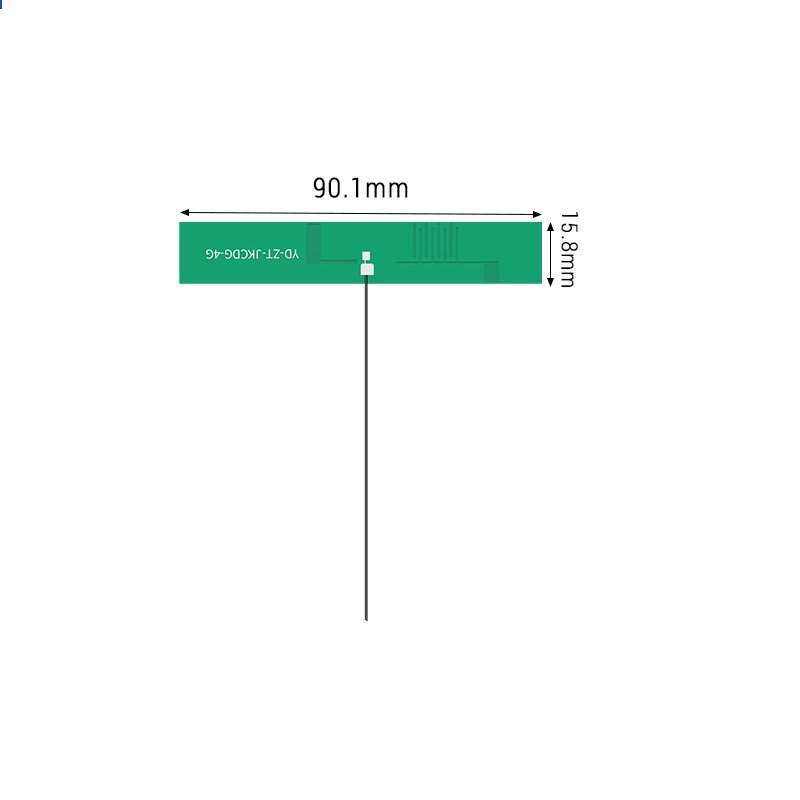

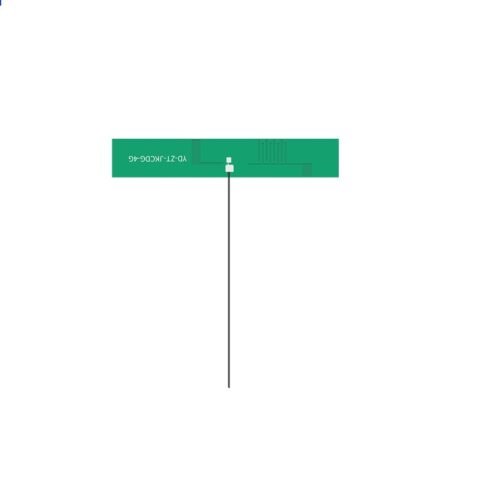

90.1X15.8mm Factory Price Adhesive Tape 4G PCB Antenna Internal Antenna Flexible Antenna 698-2700mhz With RF Connectors
90.1X15.8mm Factory Price Adhesive Tape 4G PCB Antenna Internal Antenna Flexible Antenna 698-2700mhz With RF Connectors
- The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
- Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning
product details
90.1X15.8mm adhesive-tape flexible PCB antenna covering 698-2700 MHz for 4G applications, with 5 dBi gain and an RF connector for internal device placement.
Specifications
- Frequency Range: 4G
- Gain: 5dBi
- V.S.W.R: ≤1.5
- Impedance: 50Ω
- Polarization: linearity
- Antenna Name: PCB internal antenna
- Connector type: IPEX/Direct welding( Customized)
- Antenna material: Pure copper
- Antenna cable: RG1.13 or Customized
- Operating Temperature: -30℃~+75℃
- Application field: Wireless monitoring/WIFI/ZIGBEE/Bluetooth module/Smart home/Smart wear
Applications
Supports the 698-2700 MHz range used by 4G LTE routers, gateways, telematics and wireless monitoring equipment, with a peel-and-stick layout for internal mounting.
Custom OEM/ODM orders are supported.
