49.8×8.4mm Factory Wholesales Wifi Dual Band 2.4g&5.8g FPC Internal Antenna Customized UFL Connector Built-in Antenna

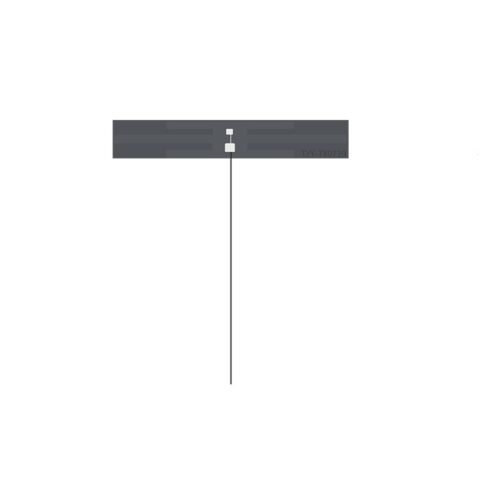

Rectangular black FPC antenna with a thin center-mounted cable

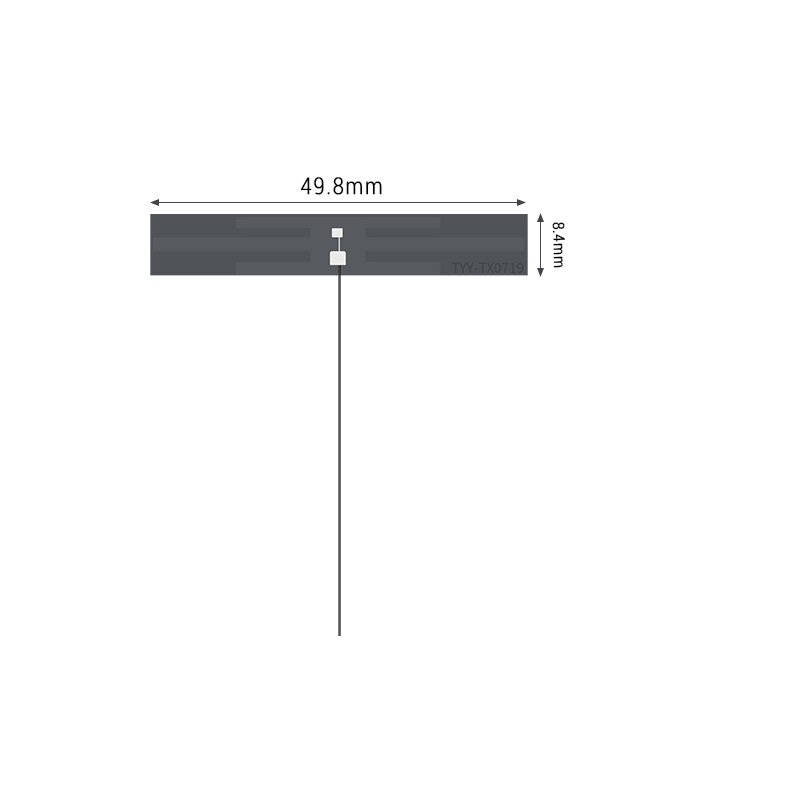

Wide flat FPC antenna 49.8mm long and 8.4mm tall with centre coax lead

49.8×8.4mm Factory Wholesales Wifi Dual Band 2.4g&5.8g FPC Internal Antenna Customized UFL Connector Built-in Antenna

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This 49.8×8.4mm FPC internal antenna is a compact dual-band WiFi antenna covering 2.4GHz and 5.8GHz, fitted with a UFL connector for direct connection inside routers, modules, and other embedded wireless products.

Specifications

Frequency Range: 2400-2500MHz / 5100-5800MHz
Gain: 4dBi
V.S.W.R: ≤1.5
Impedance: 50Ω
Polarization: Linear
Type: FPC internal antenna
Connector: IPEX / direct welding (customized)
Material: Pure copper
Cable: RG1.13 or customized
Operating Temperature: -30℃~+75℃

Applications

Suitable for wireless monitoring, WiFi routers, ZigBee and Bluetooth modules, smart home gateways, and smart wearables requiring a small dual-band internal antenna.

Yunding supports OEM and ODM orders; connector, cable, and dimensions can be customized for specific projects.
