29.4×14.8mm Yunding 2.4GHz 3dBi Internal WIFI Flexible FPC with UFL Connector

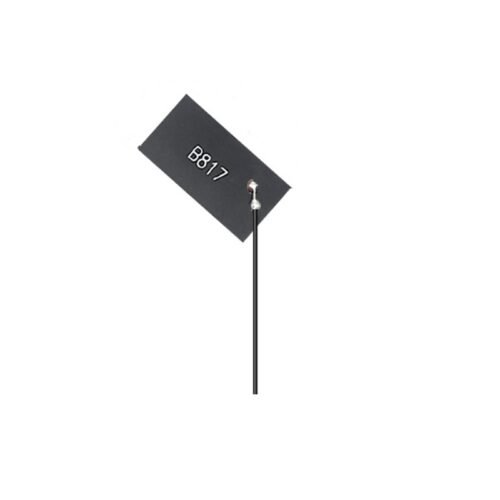

Black rectangular FPC antenna labeled B817 with attached black cable

Angled FPC antenna 29.4mm by 14.8mm labelled B817 with coax tail

29.4×14.8mm Yunding 2.4GHz 3dBi Internal WIFI Flexible FPC with UFL Connector

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This flexible FPC antenna measures 29.4×14.8mm and operates across the 2.4GHz band with a nominal gain of 3dBi. Terminated with a UFL connector, it is intended for internal installation inside wireless hardware, close to the radio board.

Specifications

Frequency Range: 2400-2500MHz; Gain: 3dBi
V.S.W.R: ≤1.5; Impedance: 50Ω; Polarization: Linear
Antenna Name: FPC internal antenna
Connector Type: IPEX/Direct welding (Customized)
Antenna Material: Pure copper; Antenna Cable: RG1.13 or Customized
Operating Temperature: -30℃~+75℃

Applications

Typical uses include WiFi modules, ZigBee and Bluetooth radios, smart home gateways, and wireless monitoring equipment. As an internal FPC antenna, it suits products that cannot accommodate an external antenna.

Customized cable and connector options are available through Yunding’s OEM and ODM services.
