22.5X18mm Flexible Antenna Wireless Buil-in Antenna Internal 2.4G FPC Dual Band Antenna Soft Wifi Antenna

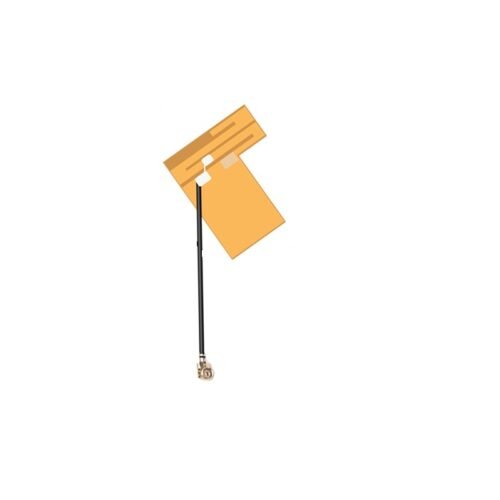

Rectangular copper FPC antenna with black cable and small gold connector

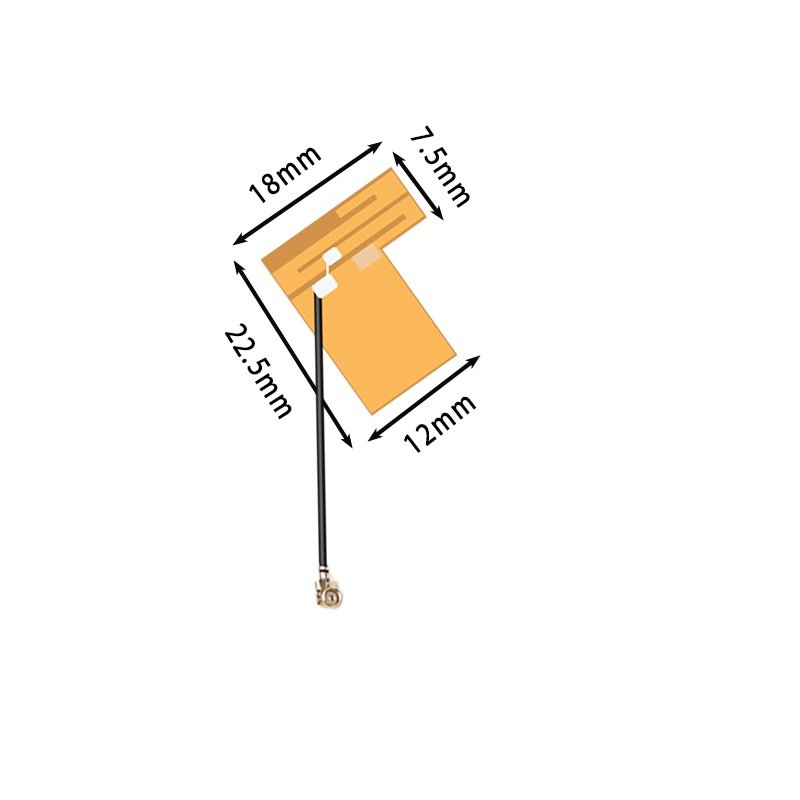

Copper flexible antenna 22.5mm by 18mm folded with U.FL connector lead

22.5X18mm Flexible Antenna Wireless Buil-in Antenna Internal 2.4G FPC Dual Band Antenna Soft Wifi Antenna

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

A compact soft FPC antenna for the 2400-2500MHz band, this model measures 22.5x18mm and is intended for internal placement inside WiFi-enabled devices. The flexible film construction and pure copper radiator suit low-profile product designs.

Specifications

Frequency Range: 2400-2500MHz; Gain: 3dBi
V.S.W.R: ≤1.5; Impedance: 50Ω; Polarization: Linear
Antenna Name: FPC internal antenna
Connector Type: IPEX/Direct welding (Customized)
Antenna Material: Pure copper; Antenna Cable: RG1.13 or Customized
Operating Temperature: -30℃~+75℃

Applications

Well matched to wireless monitoring, ZigBee modules, Bluetooth modules, smart home appliances, and smart wearables that require a thin internal antenna. The flexible form factor supports positioning in confined or non-planar spaces.

This antenna can be customized through Yunding’s OEM and ODM services, including connector and cable configuration.
