35.9X12.1mm 2.4G and 5.8G Built-in Flexible FPC Antenna Dual-band and WiFi Module Router Gain Patch Antenna

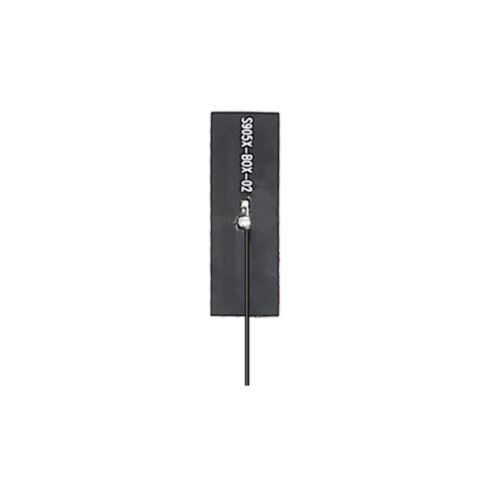

Black rectangular FPC antenna with a soldered coaxial cable

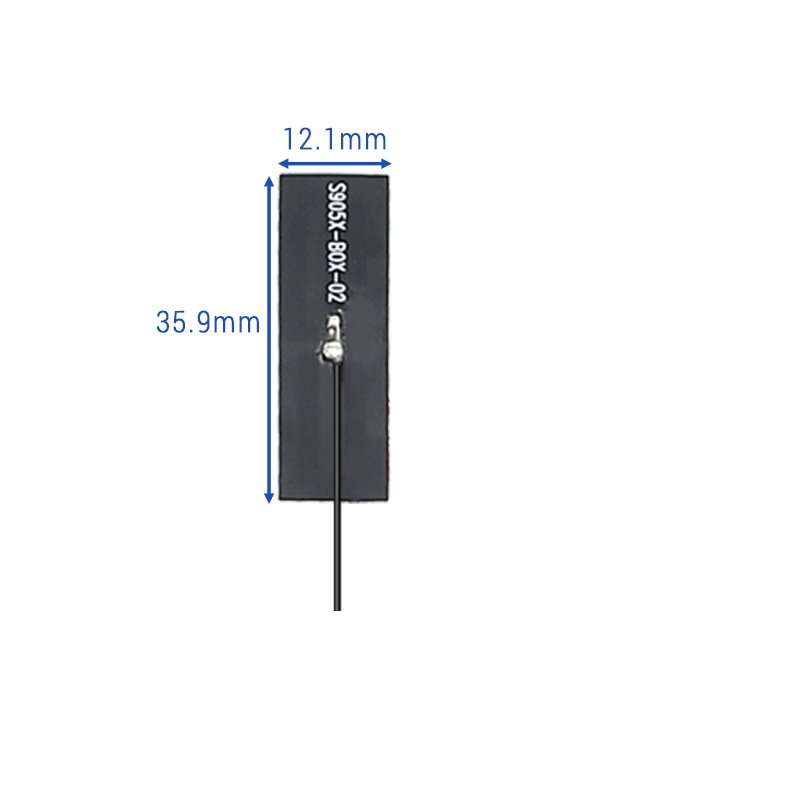

Black dual band FPC antenna 35.9mm tall and 12.1mm wide with coax tail

35.9X12.1mm 2.4G and 5.8G Built-in Flexible FPC Antenna Dual-band and WiFi Module Router Gain Patch Antenna

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

Designed as a built-in flexible patch antenna for Wi-Fi modules and routers, this 35.9×12.1 mm FPC antenna covers the 2.4 GHz and 5.8 GHz bands. The pure copper radiator and RG1.13 cable feed sit on a thin flexible substrate, so the antenna can be taped into the final product without changing the outer shell design.

Specifications

Antenna name: FPC internal antenna
Frequency range: 2400-2500 MHz / 5100-5800 MHz
Gain: 3.5 dBi
V.S.W.R: <=1.5
Impedance: 50 Ohm
Polarization: linear
Connector type: IPEX / direct welding (customized)
Antenna material: pure copper
Antenna cable: RG1.13 or customized
Operating temperature: -30 deg C ~ +75 deg C

Applications

It fits wireless monitoring, Wi-Fi, ZigBee, Bluetooth module, smart home, and smart wearable applications, giving module makers a simple drop-in radiator for 2.4 GHz and 5.8 GHz radio designs.

Custom lengths, connectors, and cables can be arranged under the Yunding Antenna OEM and ODM program.
