41.8×11.8mm High-Gain 4DB 2.4GHz WiFi and for 5G/5.8G Dual-Band Antenna with Omnidirectional FPC Patch for Effective Communication

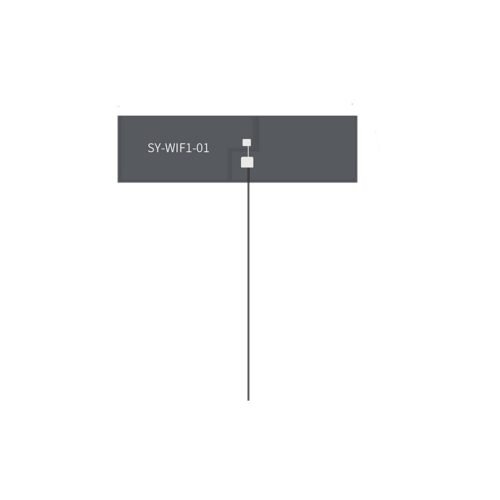

Dark gray rectangular FPC antenna with attached black cable and SY-WIF1-01 text.

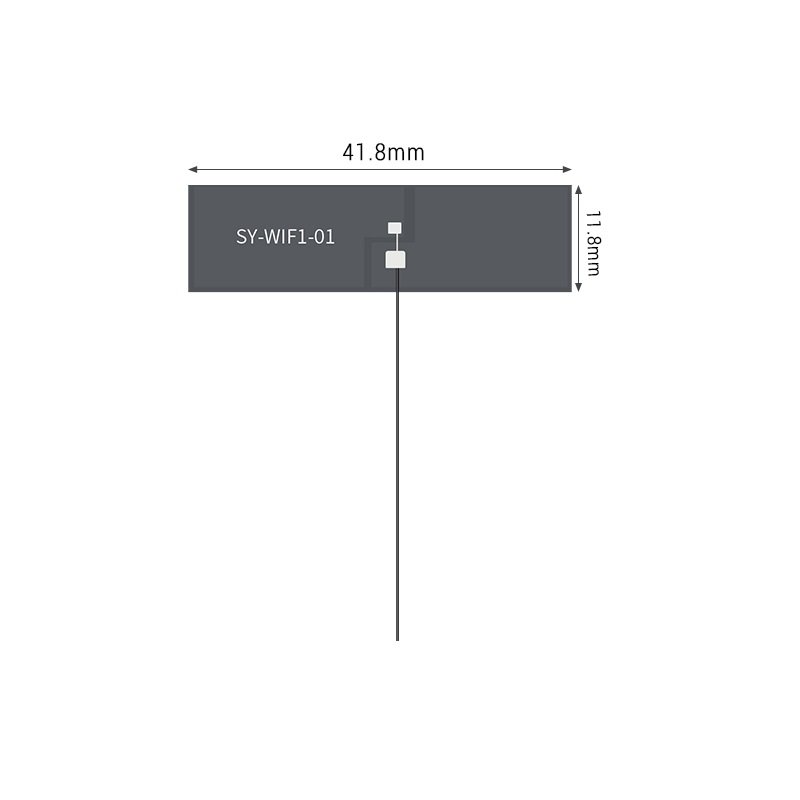

Dual band WiFi FPC antenna 41.8mm long and 11.8mm tall marked SY-WIF1-01

41.8×11.8mm High-Gain 4DB 2.4GHz WiFi and for 5G/5.8G Dual-Band Antenna with Omnidirectional FPC Patch for Effective Communication

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This 41.8×11.8mm FPC patch antenna delivers omnidirectional coverage for dual-band 2.4GHz and 5.8GHz WiFi, with 4dBi gain, making it suitable for space-constrained embedded applications.

Specifications

Frequency Range: 2400-2500MHz / 5100-5800MHz
Gain: 4dBi
V.S.W.R: ≤1.5
Impedance: 50Ω
Polarization: Linear
Type: FPC internal antenna
Connector: IPEX / direct welding (customized)
Material: Pure copper
Cable: RG1.13 or customized
Operating Temperature: -30℃~+75℃

Applications

Designed for wireless monitoring, WiFi routers, ZigBee and Bluetooth modules, smart home hubs, and smart wearables where omnidirectional coverage is required.

Yunding provides OEM and ODM service, and the connector, cable, and dimensions can be adapted to project needs.
