43.3x4mm Yunding Customized 2.4/5.8G Internal Antenna FPC Patch Antenna Internal Flexible FPC Antenna with UFL RF1.13 cable

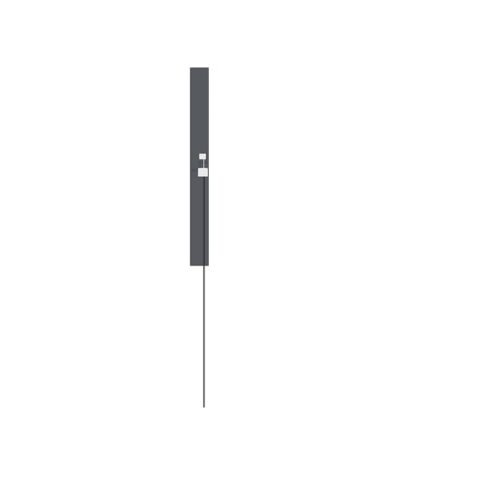

Narrow rectangular black flexible FPC antenna with an attached cable.

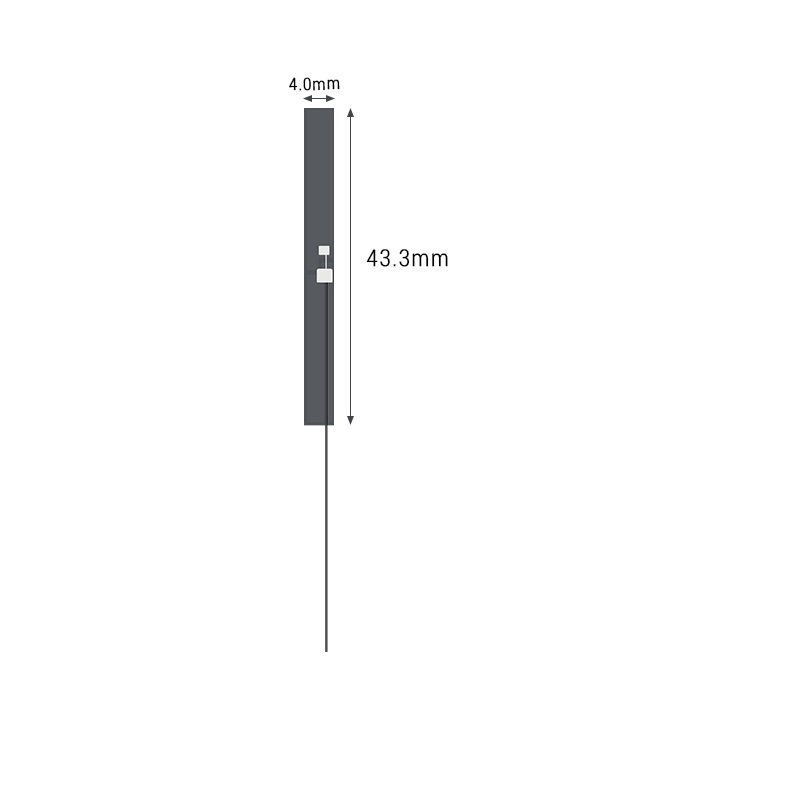

Very narrow FPC patch antenna 43.3mm tall and 4mm wide with feed pad

43.3x4mm Yunding Customized 2.4/5.8G Internal Antenna FPC Patch Antenna Internal Flexible FPC Antenna with UFL RF1.13 cable

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This Yunding FPC patch antenna measures 43.3x4mm for the 2.4/5.8G bands, with a UFL connector and RF1.13 cable. The patch-style pure-copper radiator suits PCB placement inside compact wireless devices.

Specifications

Antenna Name: FPC internal antenna
Antenna Frequency Range: 2400-2500mhz/5100-5800mhz
Gain: 3dBi
V.S.W.R: ≤1.5
Impendance: 50Ω
Polarization: linearity
Connector type: IPEX/Direct welding( Customized)
Antenna material: Pure copper
Antenna cable: RG1.13 or Customized
Operating Temperature: -30℃~+75℃
Application field: Wireless monitoring/WIFI/ZIGBEE/Bluetooth module/Smart home/Smart wear

Applications

This antenna fits wireless monitoring, Wi-Fi, ZigBee, and Bluetooth modules, smart home equipment, and smart wearables, and its 5.1-5.8 GHz range serves dual-band routers and access points.

OEM/ODM customization is available for connector type, cable length, and frequency range.
