36.4X12.9mm Factory Cheap Price Wifi 2.4/5.8G Dual Band Built-in Wifi Internal PCB Antenna with UFL Connector

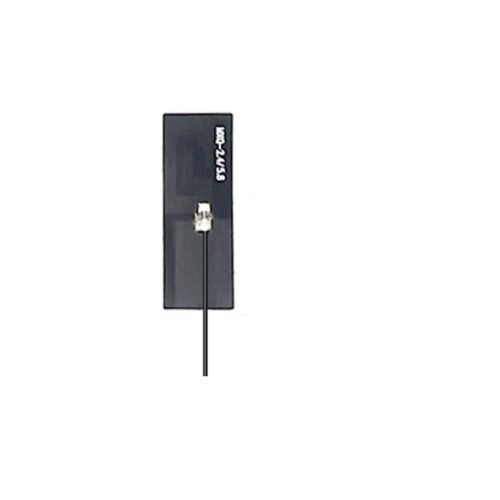

Black rectangular PCB antenna with black cable and UFL connector, printed MXQ-2.4/5.8

Angled FPC antenna 36.4mm tall and 12.9mm wide with centre connector

36.4X12.9mm Factory Cheap Price Wifi 2.4/5.8G Dual Band Built-in Wifi Internal PCB Antenna with UFL Connector

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This 36.4X12.9mm internal antenna is offered for dual-band 2.4/5.8GHz WiFi and ships with a UFL connector, providing a compact built-in radiator for embedded WiFi devices.

Specifications

Frequency Range: 2400-2500MHz / 5100-5800MHz
Gain: 4dBi
V.S.W.R: ≤1.5
Impedance: 50Ω
Polarization: Linear
Type: FPC internal antenna
Connector: IPEX / direct welding (customized)
Material: Pure copper
Cable: RG1.13 or customized
Operating Temperature: -30℃~+75℃

Applications

Used in WiFi routers, ZigBee and Bluetooth modules, smart home devices, wireless monitoring stations, and smart wearables requiring a compact internal antenna.

OEM and ODM are supported by Yunding, with connector, cable, and dimensional customization available.
