44.9X15mm Factory Wholesales Customized UFL Connector Wifi 2.4/5.8G Dual Band Built-in Wifi Internal FPC Soft Antenna

Black rectangular FPC antenna with an attached black cable

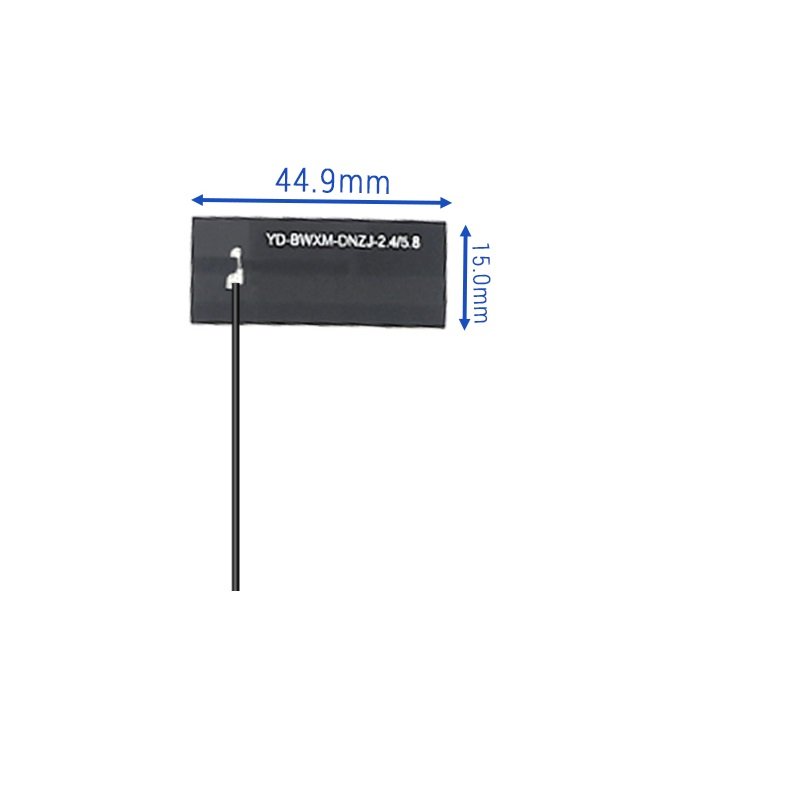

Wide FPC antenna 44.9mm long and 15mm tall with U.FL connector lead

44.9X15mm Factory Wholesales Customized UFL Connector Wifi 2.4/5.8G Dual Band Built-in Wifi Internal FPC Soft Antenna

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This 44.9X15mm soft FPC antenna is a dual-band 2.4/5.8GHz WiFi antenna with a customized UFL connector, intended for internal mounting where a flexible, surface-friendly radiator is required.

Specifications

Frequency Range: 2400-2500MHz / 5100-5800MHz
Gain: 4dBi
V.S.W.R: ≤1.5
Impedance: 50Ω
Polarization: Linear
Type: FPC internal antenna
Connector: IPEX / direct welding (customized)
Material: Pure copper
Cable: RG1.13 or customized
Operating Temperature: -30℃~+75℃

Applications

Frequently applied in WiFi routers, ZigBee and Bluetooth modules, smart home systems, wireless monitoring, and smart wearables that need a soft FPC antenna.

Custom connector, cable, and dimension options are available through Yunding OEM and ODM service.
