18.4X16.6mm Wifi 2.4GHz & 5GHz Internal Flexible FPC Antenna with UFL Connector 3dBi Gain 50W Power RF Cable Included

Dark gray square FPC antenna printed with YD-A60-WIFI and a black cable

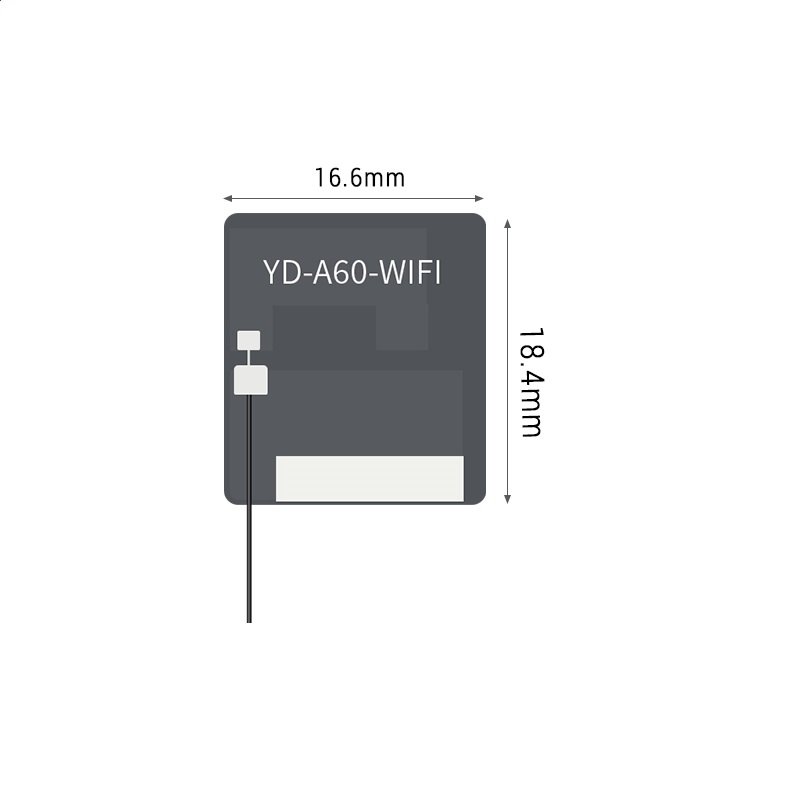

Square WiFi FPC antenna 18.4mm by 16.6mm marked YD-A60-WIFI

18.4X16.6mm Wifi 2.4GHz & 5GHz Internal Flexible FPC Antenna with UFL Connector 3dBi Gain 50W Power RF Cable Included

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

At 18.4X16.6mm, this Yunding FPC antenna is a compact internal flexible antenna covering 2.4GHz and 5GHz, with a UFL connector, 3dBi gain, and 50W power. The small footprint fits dense PCB layouts in portable and smart devices.

Specifications

Antenna Name: FPC internal antenna
Antenna Frequency Range: 2400-2500mhz/5100-5800mhz
Gain: 3dBi
Impendance: 50Ω
V.S.W.R: ≤1.5
Polarization: linearity
Connector type: IPEX/Direct welding( Customized)
Antenna cable: RG1.13 or Customized
Antenna material: Pure copper
Operating Temperature: -30℃~+75℃
Application field: Wireless monitoring/WIFI/ZIGBEE/Bluetooth module/Smart home/Smart wear

Applications

This antenna is used in compact IoT devices, smart wear, smart home equipment, wireless monitoring, and Bluetooth module designs where board space is limited.

Custom connector, cable, and frequency configurations are available through OEM/ODM.
