35.8X9.7mm FPC Internal Built-in ROHS Compliant WIFI 2.4G 5.8G U.FL Flexible Antenna with 4dbi Gain 100mm Cable

Black rectangular FPC antenna with thin cable and printed 2.4/5GHz Ver1.0 text

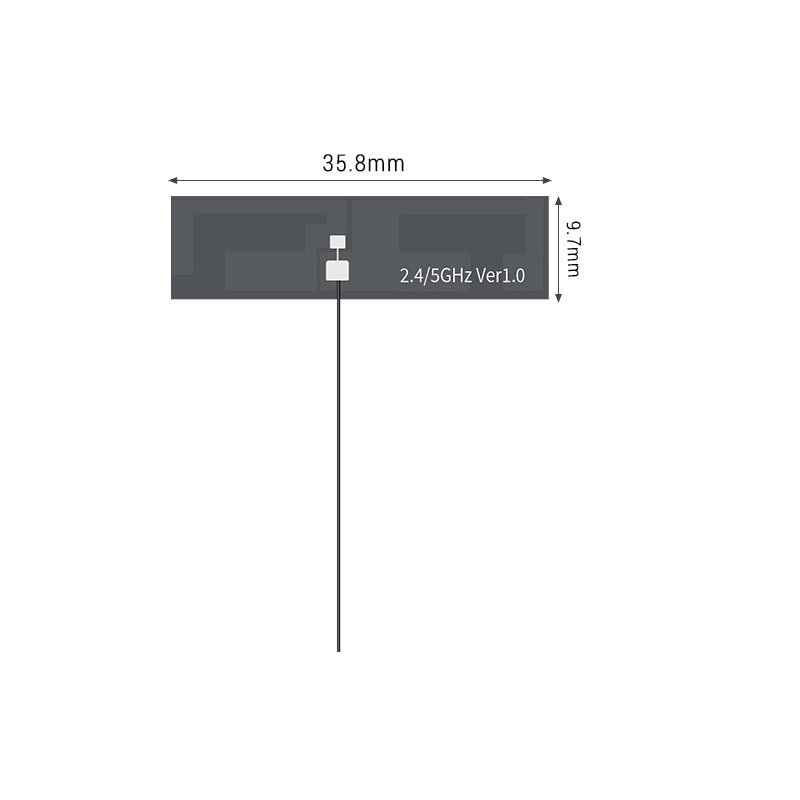

Flat FPC antenna 35.8mm long and 9.7mm tall marked 2.4/5GHz Ver1.0

35.8X9.7mm FPC Internal Built-in ROHS Compliant WIFI 2.4G 5.8G U.FL Flexible Antenna with 4dbi Gain 100mm Cable

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This 35.8X9.7mm FPC antenna is an RoHS-compliant flexible design for 2.4GHz and 5.8GHz WiFi, with 4dBi gain and a 100mm cable terminated in a U.FL connector for internal installation.

Specifications

Frequency Range: 2400-2500MHz / 5100-5800MHz
Gain: 4dBi
V.S.W.R: ≤1.5
Impedance: 50Ω
Polarization: Linear
Type: FPC internal antenna
Connector: IPEX / direct welding (customized)
Material: Pure copper
Cable: RG1.13 or customized
Operating Temperature: -30℃~+75℃

Applications

Applied to wireless monitoring, WiFi routers, ZigBee and Bluetooth modules, smart home systems, and smart wearables, with the 100mm cable easing internal routing.

Yunding supports OEM and ODM orders, with customized connector, cable, and dimension options on request.
