28.6X22.1mm Built-in 2.4G WiFi Internal FPC Antenna 5.8GHz Dipole 3dBi Gain UFL Connector 150MM RF1.13 cable

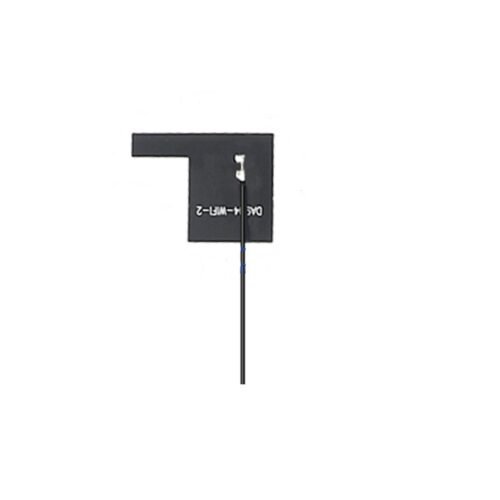

Black L-shaped FPC antenna with printed text and attached black cable

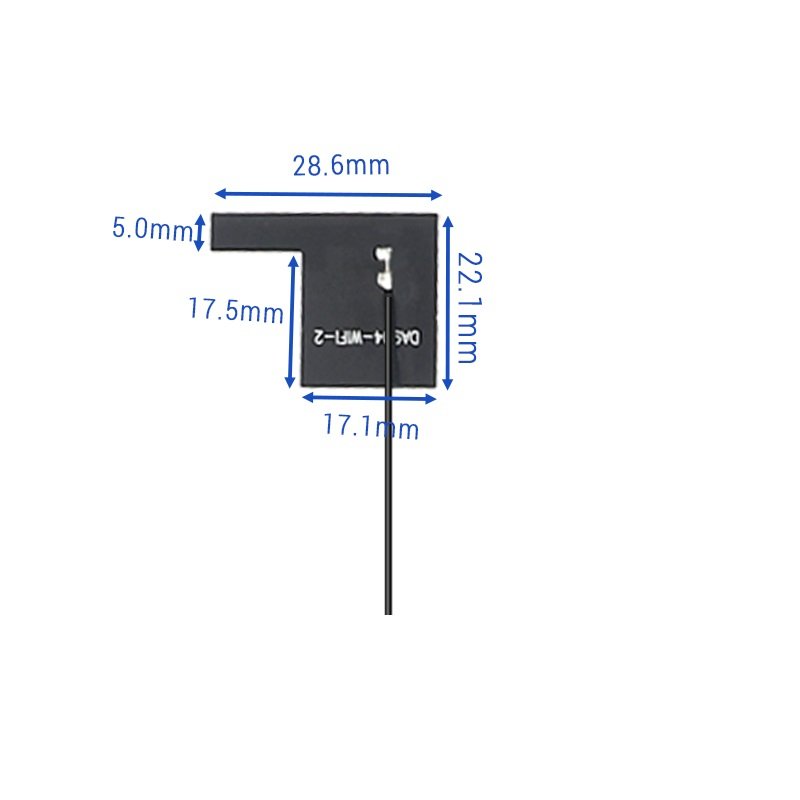

L shaped dual band FPC antenna 28.6mm wide and 22.1mm tall with lead

28.6X22.1mm Built-in 2.4G WiFi Internal FPC Antenna 5.8GHz Dipole 3dBi Gain UFL Connector 150MM RF1.13 cable

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This Yunding internal FPC antenna uses a 28.6X22.1mm dipole layout for the 2.4 GHz Wi-Fi and 5.8 GHz bands and comes with a UFL connector and a 150mm cable. The pure-copper flexible structure suits integration inside wireless modules and compact routers.

Specifications

Antenna Frequency Range: 2400-2500mhz/5100-5800mhz
Gain: 3dBi
V.S.W.R: ≤1.5
Impendance: 50Ω
Polarization: linearity
Antenna Name: FPC internal antenna
Antenna material: Pure copper
Connector type: IPEX/Direct welding( Customized)
Antenna cable: RG1.13 or Customized
Operating Temperature: -30℃~+75℃
Application field: Wireless monitoring/WIFI/ZIGBEE/Bluetooth module/Smart home/Smart wear

Applications

Typical uses are Wi-Fi routers, IoT gateways, set-top boxes, and smart appliances on the 2.4 GHz and 5 GHz bands, plus wireless monitoring and Bluetooth module integration.

OEM/ODM services are available for connector, cable length, and frequency customization.
