29.4×9.1mm 2.4G WIFI FPC Antenna IPEX 2.4GHz Internal WIFI Antenna UFL 1.13mm Cable 2.4G Built in WIFI Antenna

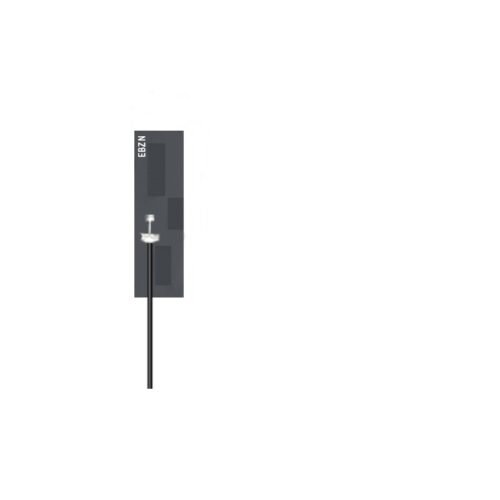

Black rectangular FPC antenna marked EBZN with black cable and IPEX connector

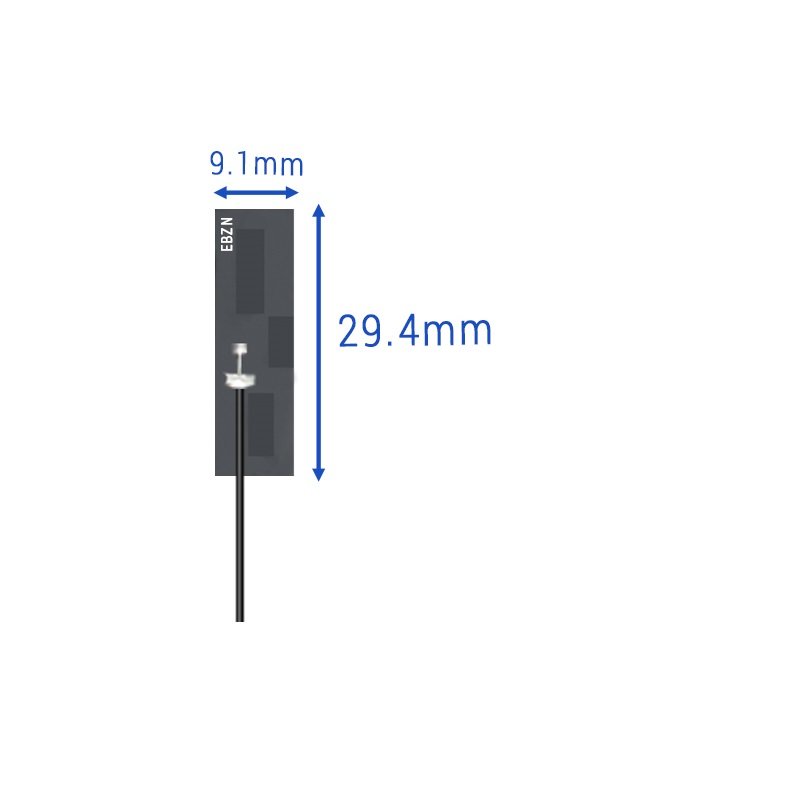

Compact WiFi FPC antenna 29.4mm tall and 9.1mm wide with IPEX lead

29.4×9.1mm 2.4G WIFI FPC Antenna IPEX 2.4GHz Internal WIFI Antenna UFL 1.13mm Cable 2.4G Built in WIFI Antenna

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This 29.4×9.1mm FPC antenna is a compact internal 2.4GHz WiFi antenna with an IPEX/UFL connector on a 1.13mm cable. It fits inside WiFi-enabled equipment such as routers, modules, and IoT gateways that need a small, low-profile radiator.

Specifications

Frequency Range: 2400-2500MHz; Gain: 3dBi
V.S.W.R: ≤1.5; Impedance: 50Ω; Polarization: Linear
Antenna Name: FPC internal antenna
Connector Type: IPEX/Direct welding (Customized)
Antenna Material: Pure copper; Antenna Cable: RG1.13 or Customized
Operating Temperature: -30℃~+75℃

Applications

Intended for 2.4GHz wireless monitoring, WiFi, ZigBee and Bluetooth modules, smart home devices, and smart wearables. Its flexible pure copper construction and 1.13mm cable allow routing inside tight enclosures.

OEM and ODM customization, including cable length, connector type, and direct welding options, is available from Yunding.
