79.8X6.5mm Factory Hot Selling High Gain 2.4/5.8G Dual Band WiFi Internal Antenna WIFI Antenna FPC Antenna With UFL Connector

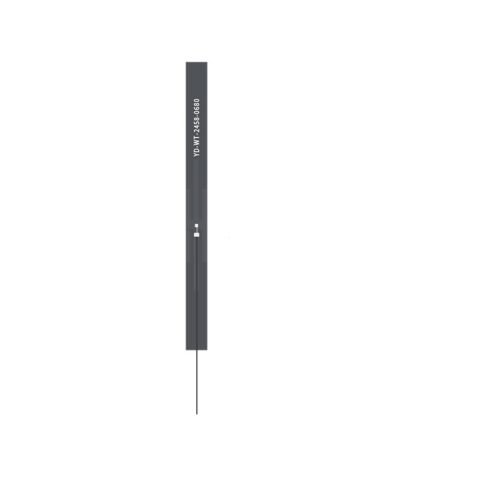

Thin black rectangular FPC antenna with wire and text YD-WT-2458-0680

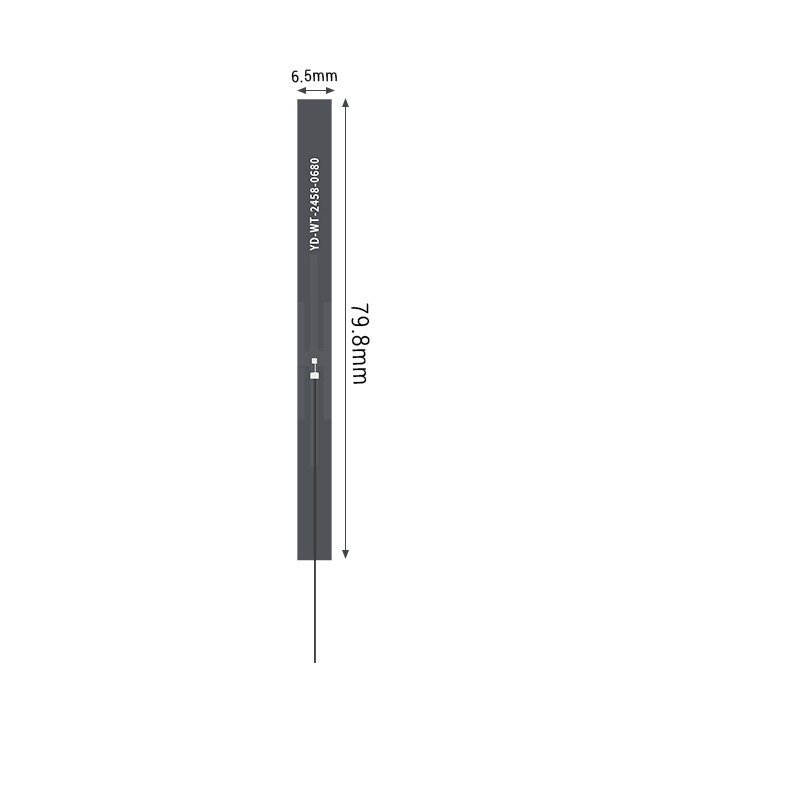

Very slim dual band FPC antenna 79.8mm tall and 6.5mm wide with tail

79.8X6.5mm Factory Hot Selling High Gain 2.4/5.8G Dual Band WiFi Internal Antenna WIFI Antenna FPC Antenna With UFL Connector

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This 2.4/5.8G dual band internal antenna is built for Wi-Fi router and module applications. Measuring 79.8×6.5 mm and supplied with a UFL connector, it uses a pure copper radiator on a flexible FPC substrate, fitting into space-constrained enclosures in access points, smart home gateways, and wireless sensor nodes.

Specifications

Antenna name: FPC internal antenna
Frequency range: 2400-2500 MHz / 5100-5800 MHz
Gain: 5 dBi
V.S.W.R: <=1.5
Impedance: 50 Ohm
Polarization: linear
Connector type: IPEX / direct welding (customized)
Antenna material: pure copper
Antenna cable: RG1.13 or customized
Operating temperature: -30 deg C ~ +75 deg C

Applications

It serves wireless monitoring, Wi-Fi, ZigBee, Bluetooth module, smart home, and smart wearable products. The 2.4 GHz band covers Bluetooth and ZigBee while the 5.8 GHz band covers high-throughput Wi-Fi links.

OEM and ODM customization is available, including cable type, connector, and length adjustments.
