88.2X12.4mm Flexible Internal Microstrip NFC Soft FPC Antenna Full Band 2400-2500MHz Vertical Polarization with UFL Connector

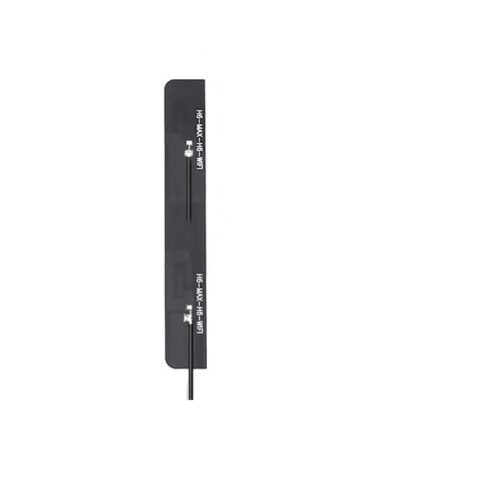

Black rectangular FPC antenna with two cables and U.FL connectors

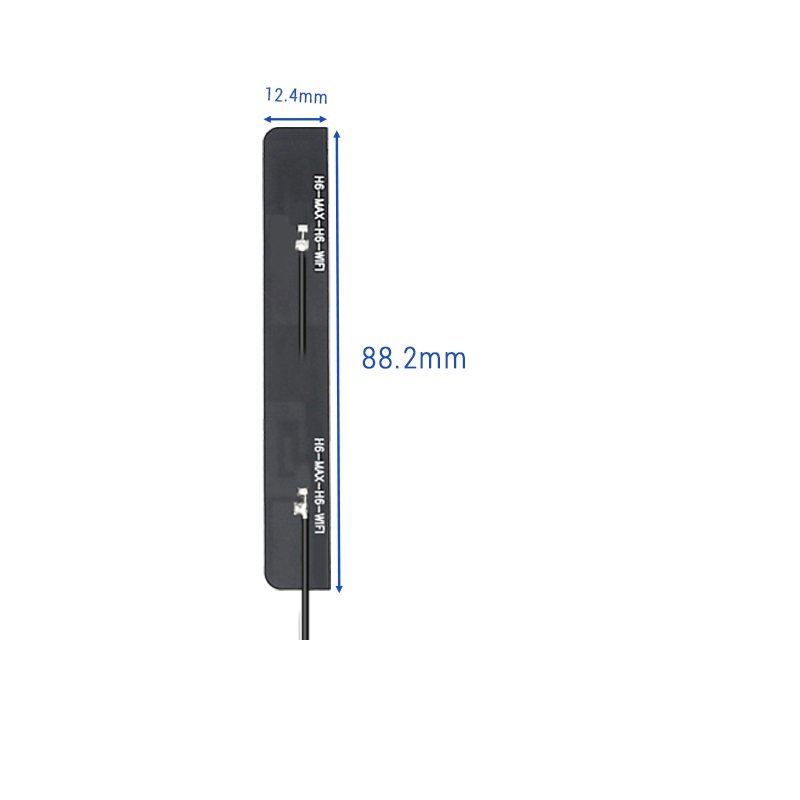

Black microstrip FPC antenna 88.2mm tall and 12.4mm wide with dual feeds

88.2X12.4mm Flexible Internal Microstrip NFC Soft FPC Antenna Full Band 2400-2500MHz Vertical Polarization with UFL Connector

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This is a flexible internal FPC antenna with an 88.2×12.4 mm form factor, delivered with a UFL connector for direct plug-in to Wi-Fi, Bluetooth, and ZigBee radio modules. Its soft film construction and pure copper radiator let it be fixed inside plastic housings of wireless monitoring and smart home products where a rigid antenna cannot be placed.

Specifications

Antenna name: FPC internal antenna
Frequency range: 2400-2500 MHz / 5100-5800 MHz
Gain: 5 dBi
V.S.W.R: <=1.5
Impedance: 50 Ohm
Polarization: linear
Connector type: IPEX / direct welding (customized)
Antenna material: pure copper
Antenna cable: RG1.13 or customized
Operating temperature: -30 deg C ~ +75 deg C

Applications

Typical uses include wireless monitoring, Wi-Fi, ZigBee, Bluetooth module, smart home, and smart wearable devices working in the 2400-2500 MHz and 5100-5800 MHz bands.

Yunding Antenna supports OEM and ODM orders with customized connectors, cable lengths, and antenna dimensions.
