50.2X4.7mm Custom Internal PCB Flexible Patch 2.4G WIFI Bluetooth G UFL U.FL Antenna

Name: 50.2x4.7mm 2.4GHz WiFi PCB Antenna 4dBi Flexible
Price: 0.35 USD
Availability: InStock

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

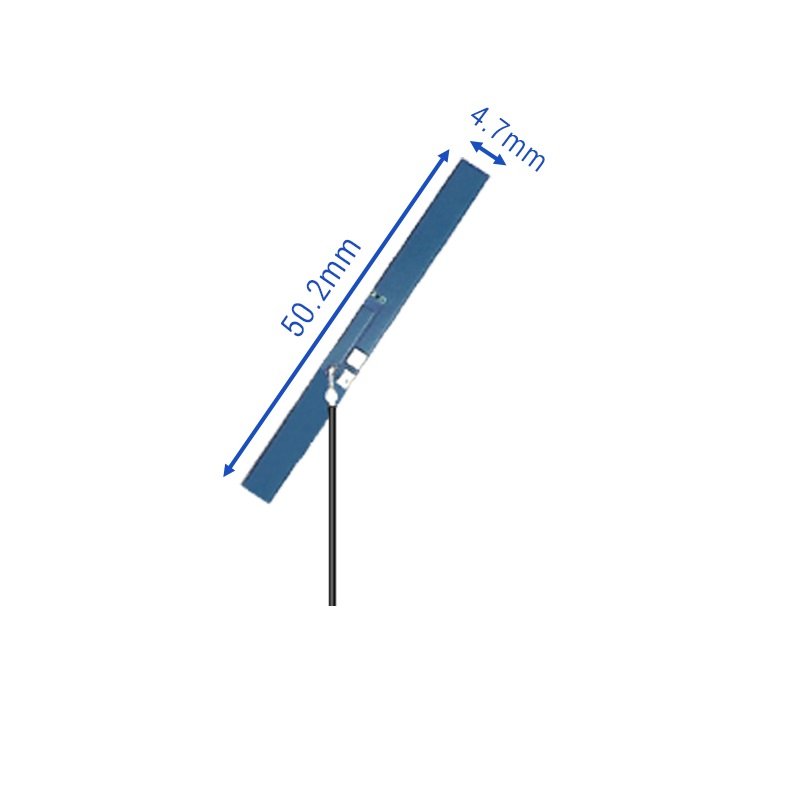

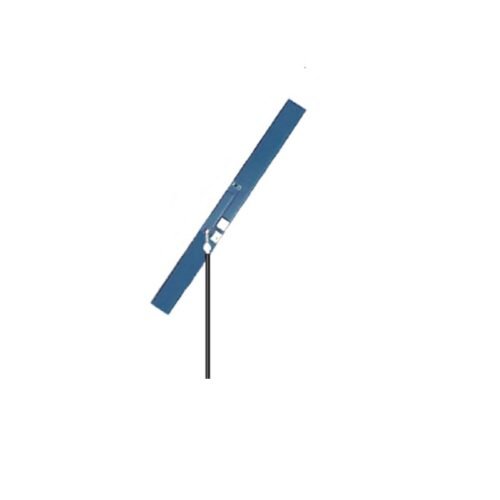

50.2X4.7mm flexible PCB patch antenna for 2.4 GHz WiFi and Bluetooth, with 4 dBi gain and a U.FL (IPEX) connector for direct module attachment.

Frequency Range: 2.4G
Gain: 4dBi
V.S.W.R: ≤1.5
Impedance: 50Ω
Polarization: linearity
Antenna Name: PCB internal antenna
Connector type: IPEX/Direct welding( Customized)
Antenna material: Pure copper
Antenna cable: RG1.13 or Customized
Operating Temperature: -30℃~+75℃
Application field: Wireless monitoring/WIFI/ZIGBEE/Bluetooth module/Smart home/Smart wear

Pairs with WiFi, Bluetooth and ZigBee modules in wireless monitoring, smart home and smart wear products where internal space is limited.

OEM/ODM and customization are supported.
