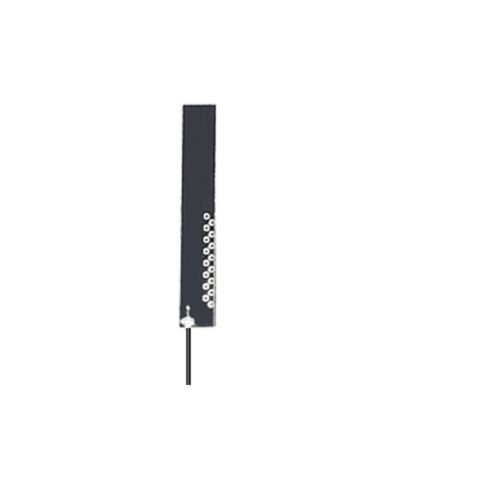

47.6X7.5mm PCB Antenna Built In Circuit Board Antenna Wifi Flex PCB Antenna With RF1.13 Wire RF Connector
47.6X7.5mm PCB Antenna Built In Circuit Board Antenna Wifi Flex PCB Antenna With RF1.13 Wire RF Connector
- The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
- Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning
product details

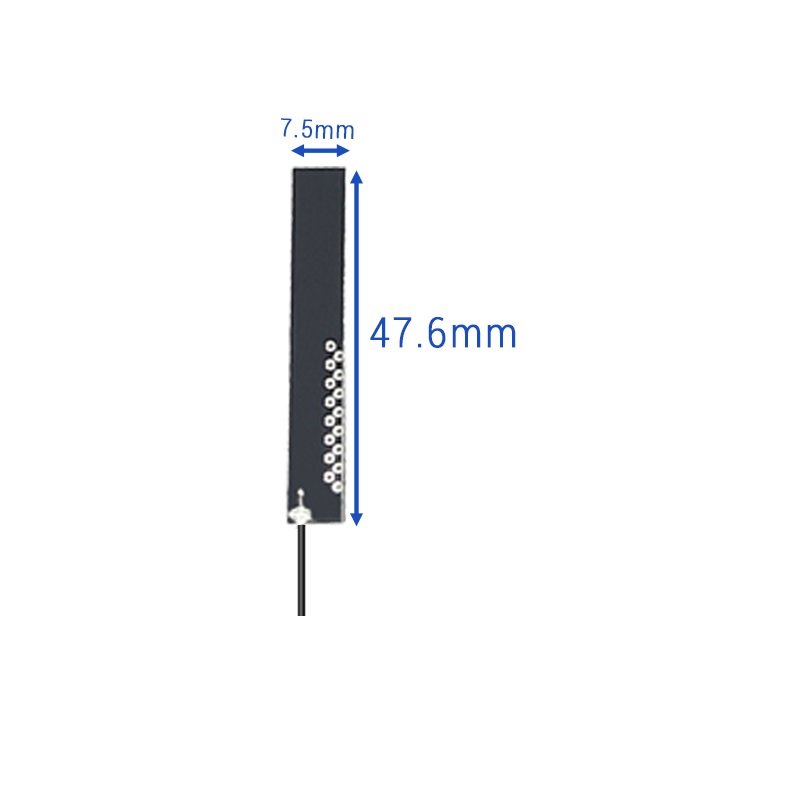

47.6X7.5mm flexible PCB antenna for 2.4 GHz WiFi with 4 dBi gain, supplied with RF1.13 cable and an RF connector for flexible placement inside the chassis.
Specifications
- Frequency Range: 2.4G
- Gain: 4dBi
- V.S.W.R: ≤1.5
- Impedance: 50Ω
- Polarization: linearity
- Antenna Name: PCB internal antenna
- Connector type: IPEX/Direct welding( Customized)
- Antenna material: Pure copper
- Antenna cable: RG1.13 or Customized
- Operating Temperature: -30℃~+75℃
- Application field: Wireless monitoring/WIFI/ZIGBEE/Bluetooth module/Smart home/Smart wear
Applications
For WiFi, Bluetooth and ZigBee module integration in wireless monitoring, smart home and smart wear devices, with the RF1.13 lead allowing placement away from the board.
Custom OEM/ODM orders are supported.
