110mm 2.4/5.8ghz External Rubber Antenna WiFi Router 2DB Communication Antenna with SMA Male

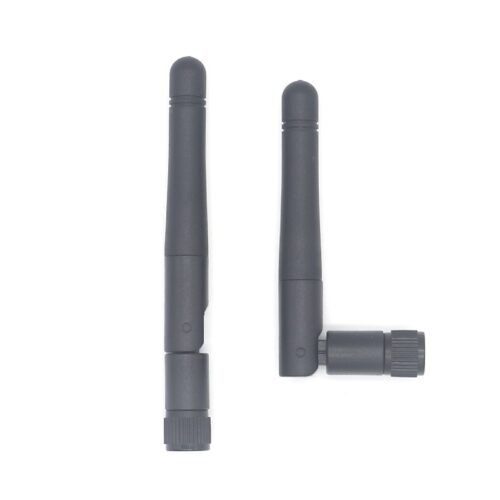

Two black rubber duck antennas with SMA connectors, shown straight and bent 90 degrees.

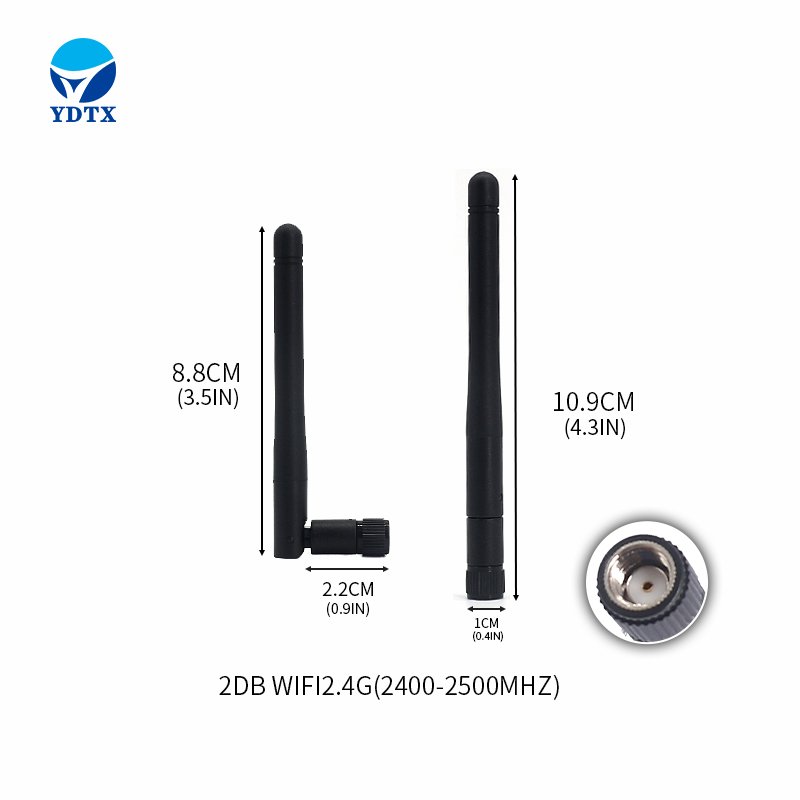

Two black antennas 8.8cm and 10.9cm long with connector end detail

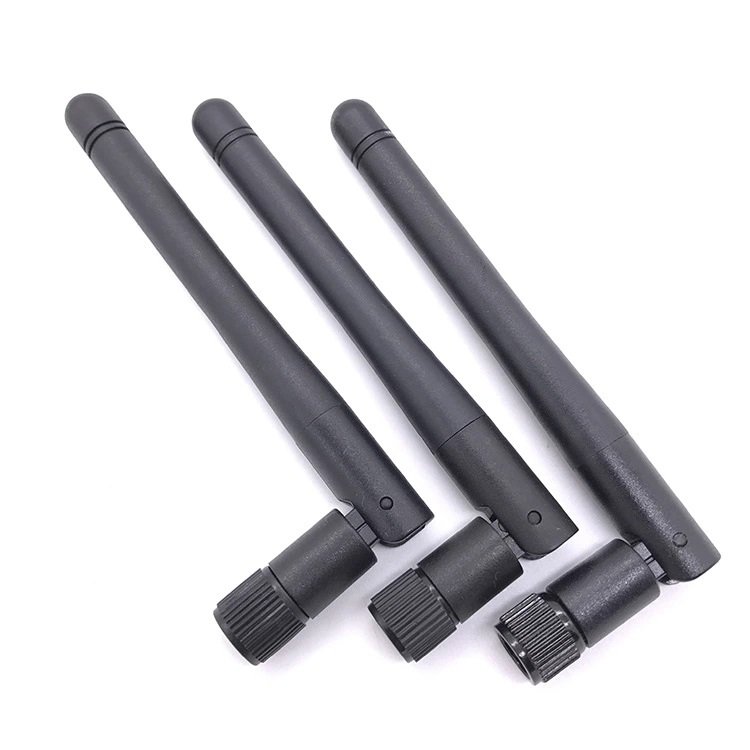

Three short black rubber antennas fanned out with knurled bases

Two black stubby router antennas crossed on a white background

Black antenna 108mm long shown beside one folded at its hinge

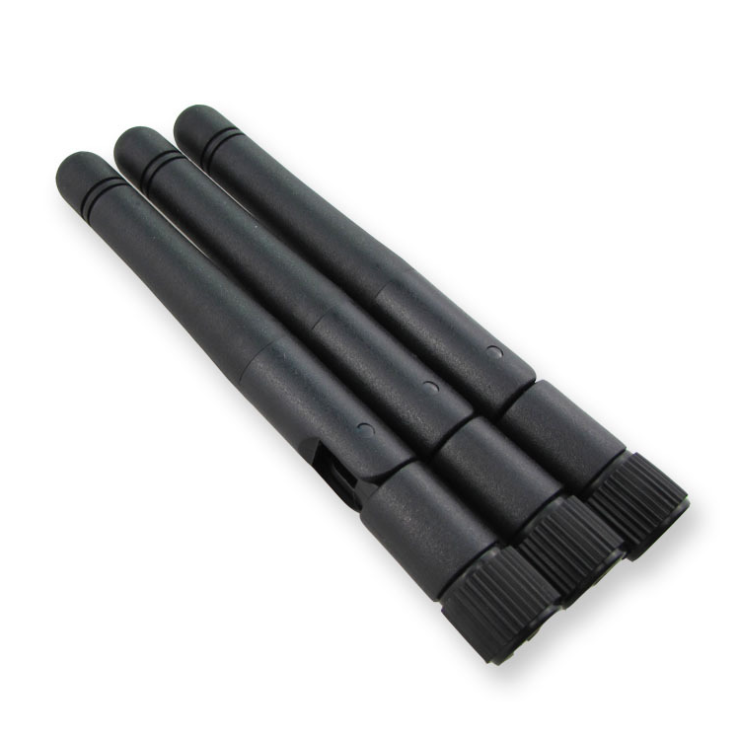

Three black rubber antennas stacked with ribbed connector collars

110mm 2.4/5.8ghz External Rubber Antenna WiFi Router 2DB Communication Antenna with SMA Male

Frequency customizable
Connector customizable
Color customizable
Miniature wireless module computer host antenna, with a wide range of applications including smart homes, security alerts, surveillance equipment, vending machines, etc.

product details

This 110 mm external rubber antenna is matched for 2.4 GHz and 5.8 GHz Wi-Fi routers and uses an SMA male connector for direct attachment. The ABS/TPEE body is light and durable, and the 2 dB omnidirectional element covers the dual-band range from a single mount point.

Specifications

Frequency range (MHz): GSM/2.4G and 5.8G/WIFI (customized)
Gain: 2 dBi
VSWR: <=1.5
Input impedance: 50 Ohm
Color: white or black
Connector type: SMA male or RP-SMA male or customized
Antenna length: 110 mm
Material: ABS/TPEE

Applications

It is suited to Wi-Fi routers, access points, GSM equipment, and wireless communication devices operating at 2.4 GHz and 5.8 GHz, where a replaceable external antenna is required for coverage extension.

OEM and ODM production is supported by Yunding Antenna, including connector and color customization.
