236*63MM High Gain 10-12 DBI Outdoor Barrel Omni Cylinder Antenna for 2G 3G 4G 5G LTE and Wifi Communication Antennas

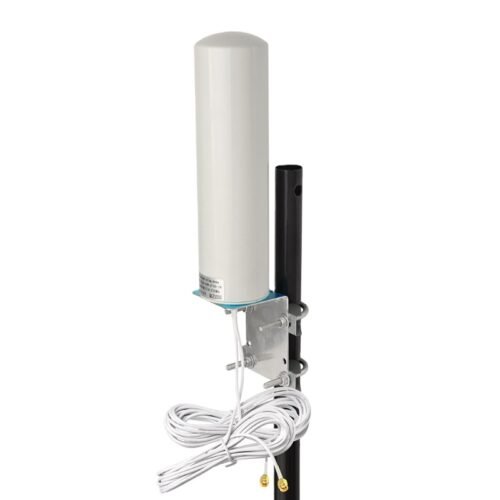

White outdoor cylinder antenna mounted on a black pole with two white cables

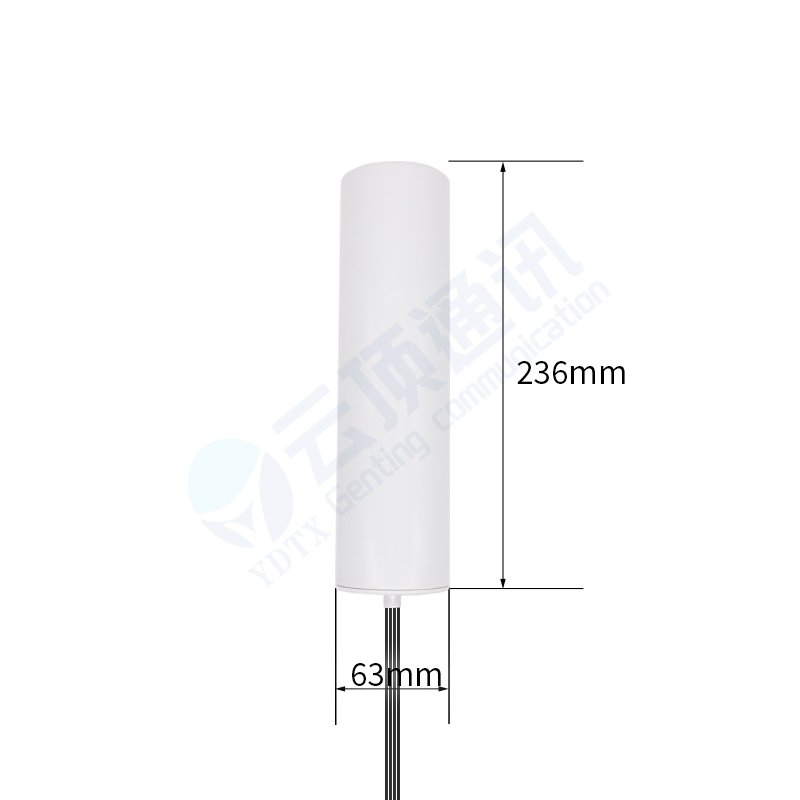

White cylindrical outdoor barrel antenna 236mm tall and 63mm across

236*63MM High Gain 10-12 DBI Outdoor Barrel Omni Cylinder Antenna for 2G 3G 4G 5G LTE and Wifi Communication Antennas

Name: Omni Cylinder Antenna Outdoor 4G 5G LTE WiFi 10-12dBi
Price: 6.53 USD
Availability: InStock

1.ABS SHELL

IP66 WATERPROOF AND HIGHTEMPERATURE RESISTANT MATERIAL,ADAPT TO ALL KINDS OF HARSH
ENVIRONMENT

2.EASY TO INSTALL
MULTIPLEMOUNTING HOLES

3.Interface anti-oxidation transmission stability

4.High conductivity of oxygen free copper core

product details

This 236*63MM Yunding outdoor barrel antenna is an omni cylinder design offering 10-12dBi gain for 2G, 3G, 4G, 5G LTE, and Wi-Fi communication. Vertical polarization and a 360 degree horizontal beamwidth provide uniform coverage around the mast.

Specifications

Connector: SMA male/custom
Frequency Range (MHz): 433M/5G/4G/WIF1/GSM/GPS/custom (Customized)
VSWR: ≤1.5
Input Impedance (Ω): 50
Horizontal Beamwidth (°): 360
Cable: RG174/Customized
Polarization mode: Vertical polarization

Applications

Typical applications include LTE and Wi-Fi coverage at fixed outdoor sites, GSM signal distribution, and GPS reception. The multi-band range lets one antenna serve several radio services at one location.

OEM/ODM customization is supported for connector type, cable length, and frequency range.
