3.3G-3.6G video transmission omnidirectional antenna FPV model aircraft antenna N female detachable unmanned aerial vehicle 3300-3600MHZ
3.3G-3.6G video transmission omnidirectional antenna FPV model aircraft antenna N female detachable unmanned aerial vehicle 3300-3600MHZ
product details
|
Electrical Properties |
|
| Frequency | 3.3G-3.6G |
| Impedance | 50 Ohm Nominal |
| V.S.W.R | ≤1.5 |
| Return Loss | -19dB Max |
| Radiation | Omni-directional |
| Gain(Peak) | 5dBI |
| Cable Loss | N/A |
| Polarization | Vertical |
| Admitted Power | 50W |
| Voltage | N/A |
|
Physical Properties |
|

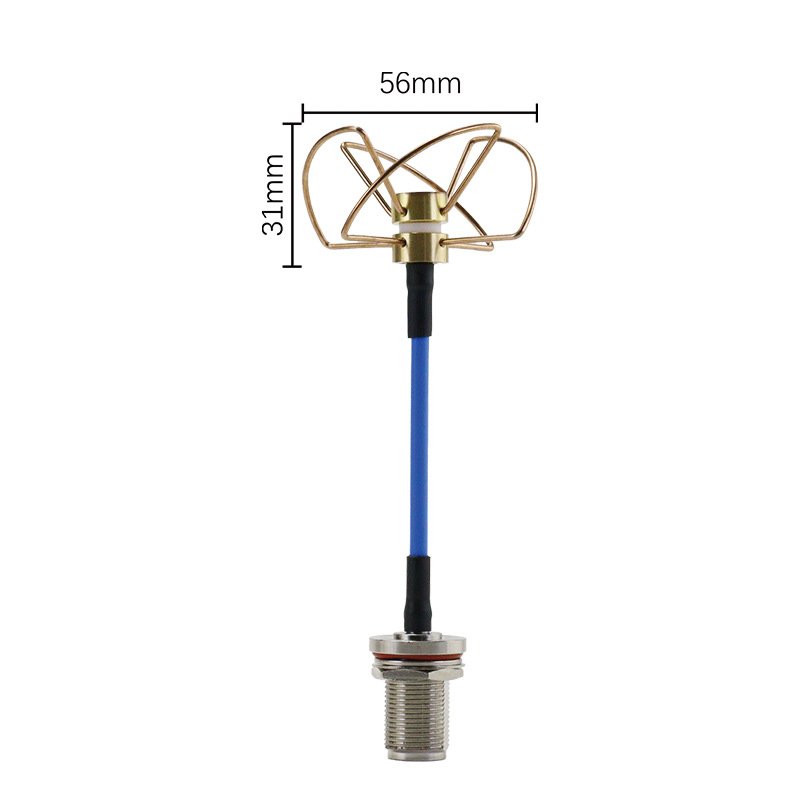

| Size | 56*31mm |
| Mounting | N female or N male |
| Connector | N female or N male |
| Antenna Material | Phosphor copper |
| Cable Type | 141 |
| Cable Color | Gold |
