445*210*65MM Hot Selling 698-2700mhz LPDA Outdoor Waterproof LPDA Antenna LTE Antenna With 5M RG58 Cable S-M-A Male Connector
445*210*65MM Hot Selling 698-2700mhz LPDA Outdoor Waterproof LPDA Antenna LTE Antenna With 5M RG58 Cable S-M-A Male Connector
1、Wireless Communication outdoor system GSM/3G/4G/5G full band
2、Stable performance, high -strength gain
3、Lighting-proof, rain-proof
4、High-efficiency reception signal
5、Conical vibrator true wide frequency
6、Enhance signal gain, wide application scope, can be used for Internet of Things gateway, wireless control, smart devices, smart home, smart monitoring, and weaker signals need to be improved
product details
| ELECTRICAL | |
| Frequency Range | 4G/5G/2.4G/GSM |
| Bandwidth | 262/990-MHz |
| Gain | 12-dBi |
| Beamwidth | H：65/50-° E：40-° |
| F/B ratio | ≥18-dB |
| VSWR | ≤1.5 |
| Polarization | Vertical |
| Max power | 100 -W |
| Nominal Impedance | 50 -Ω |
|
MECHANICAL |
|
| Connector | N female or customized |

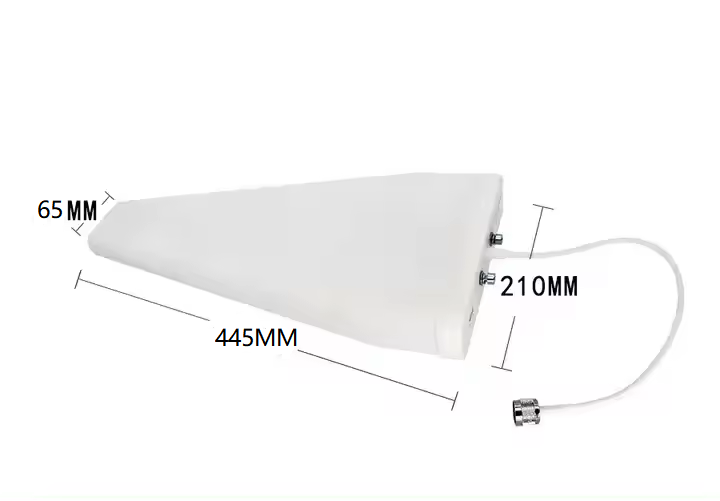

| Antenna Dimension | 445*210*65MM |
| Weight | 1-kg |
| Rated Wind Velocity | 60-m/s |

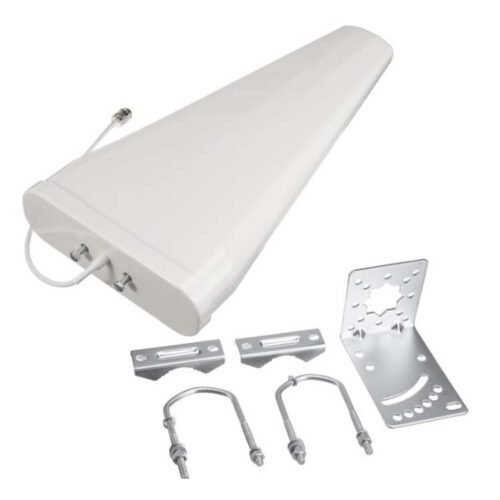

| Mounting Kits | L bracket & U bolts |
| Mounting Mast Diameter |
Ф40-Ф50-mm |
