46*16mm High Quality Durable GSM+GPS Screw Mount Antenna with RG174 Cable + SMA Connector 46MM for Outdoor Mounting

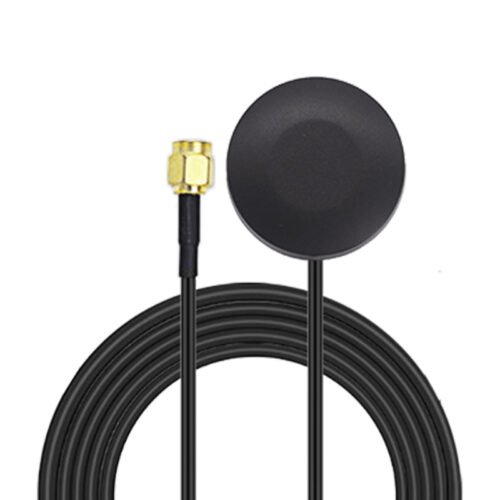

Black round puck GPS antenna with coiled cable and gold SMA connector

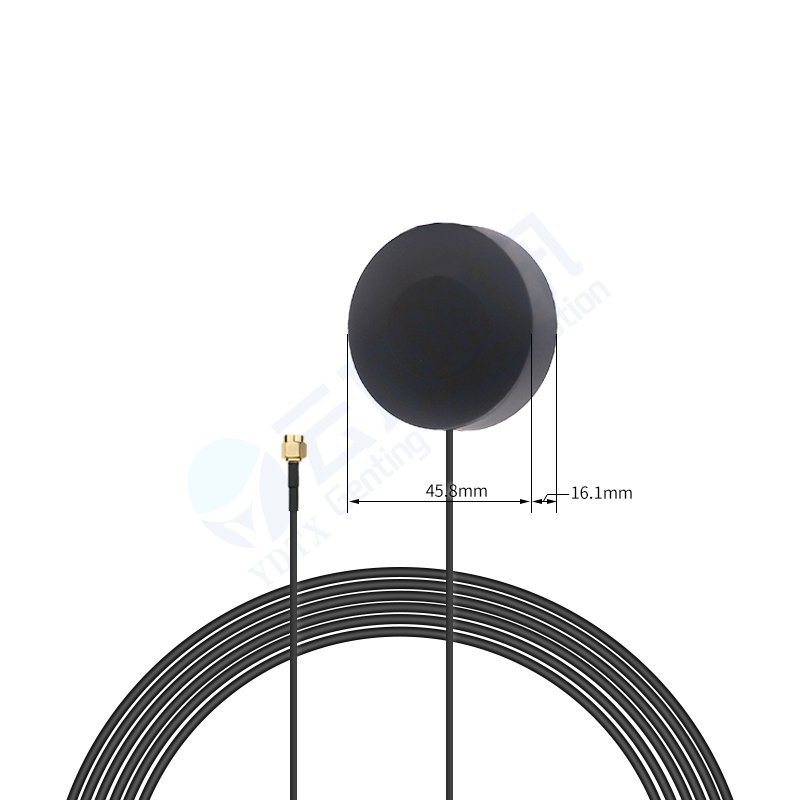

Black disc antenna with drawing showing 45.8mm diameter and 16.1mm height

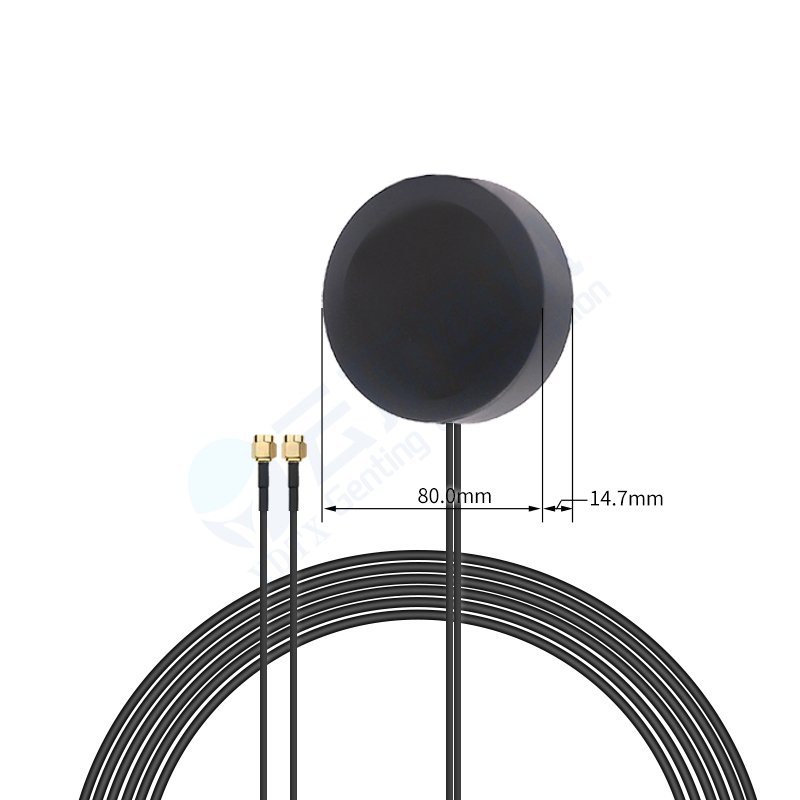

Wide black disc antenna 80mm across with twin coax leads and SMA plugs

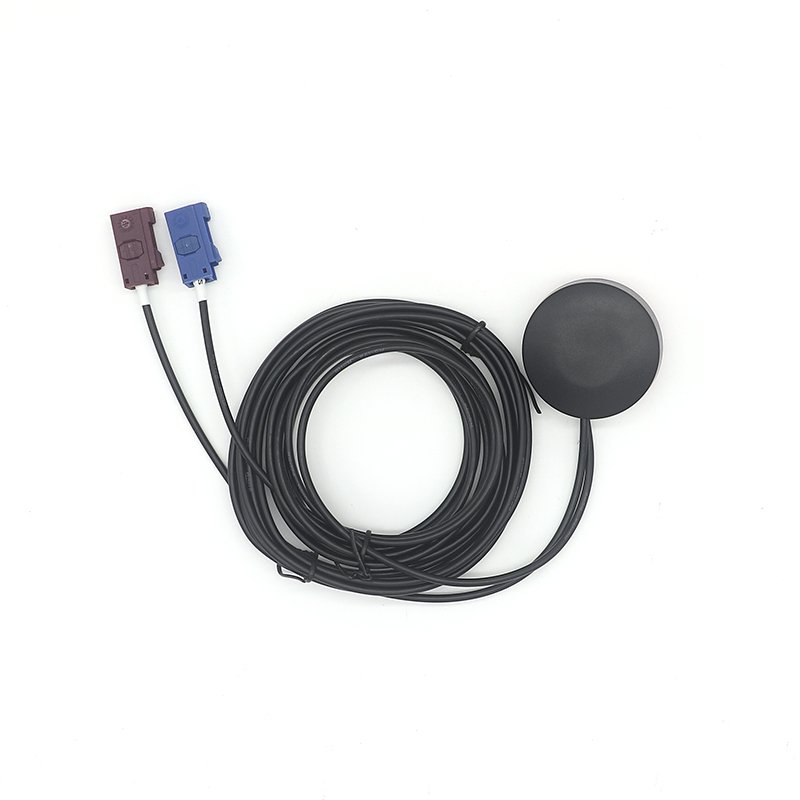

Black GPS puck antenna with long coax and blue and brown Fakra connectors

Underside of a disc antenna showing red adhesive pad with coiled cable

46*16mm High Quality Durable GSM+GPS Screw Mount Antenna with RG174 Cable + SMA Connector 46MM for Outdoor Mounting

Name: GSM GPS Screw Mount Antenna RG174 Cable SMA Outdoor 46mm
Price: 1.50 USD
Availability: InStock

● Metal-resistant antenna, suitable for installation on metal surfaces.
● Invisible antenna, designed with a small footprint.
● Large magnet design prevents slipping when installed on metal sides.
● UV material shell, resistant to outdoor wind and rain.
● Easy to install or replace, with slotted locking nuts and metal bolts for installation.
● Omni-directional radiation pattern

product details

This 46x16mm screw mount antenna combines GSM and GPS in a single outdoor unit, rated at 5dBi with a 360° horizontal beamwidth. It ships with a 1.5m RG174 cable and an SMA connector for connection to the radio module.

Specifications

Frequency Range (MHz): GSM/GPS/2.4G/4G/5G/customized
Gain (dBi): 5; Horizontal Beamwidth (°): 360
VSWR: ≤1.5; Input Impedance (Ω): 50; Maximum Power (W): 50
Lightning Protection: DC grounding
Connector Type: Mini Fakra or Customized
Cable Type: RG174 or can be customized; Cable Length (Meter): 1.5 (customizable)
Material: ABS; Mount Way: Screw; Dimensions (mm): 16*46mm; Weight (g): 25

Applications

Well matched to GSM/GPS terminals, vehicle trackers, and outdoor monitoring equipment needing a durable screw-mounted antenna.

Custom connector and cable options are available through Yunding’s OEM and ODM services.
