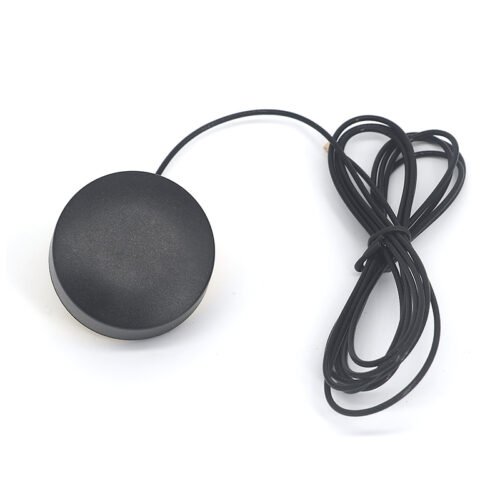

Black round cabinet antenna with attached cable and coil of wire

Black puck antenna with drawing showing 46.5mm diameter and 17.5mm height

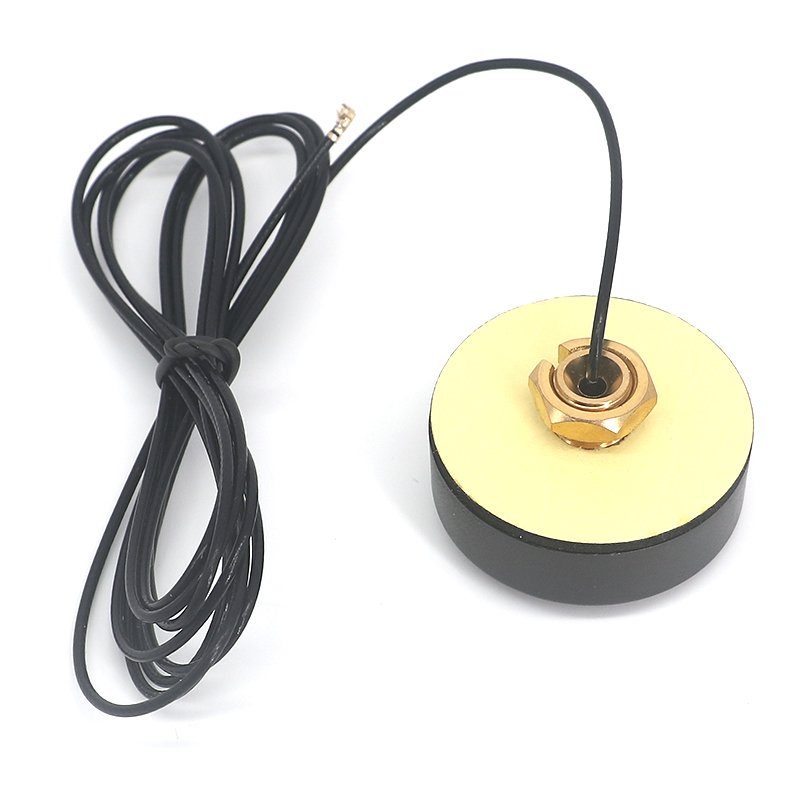

Black puck antenna with gold threaded base and coiled black coaxial cable

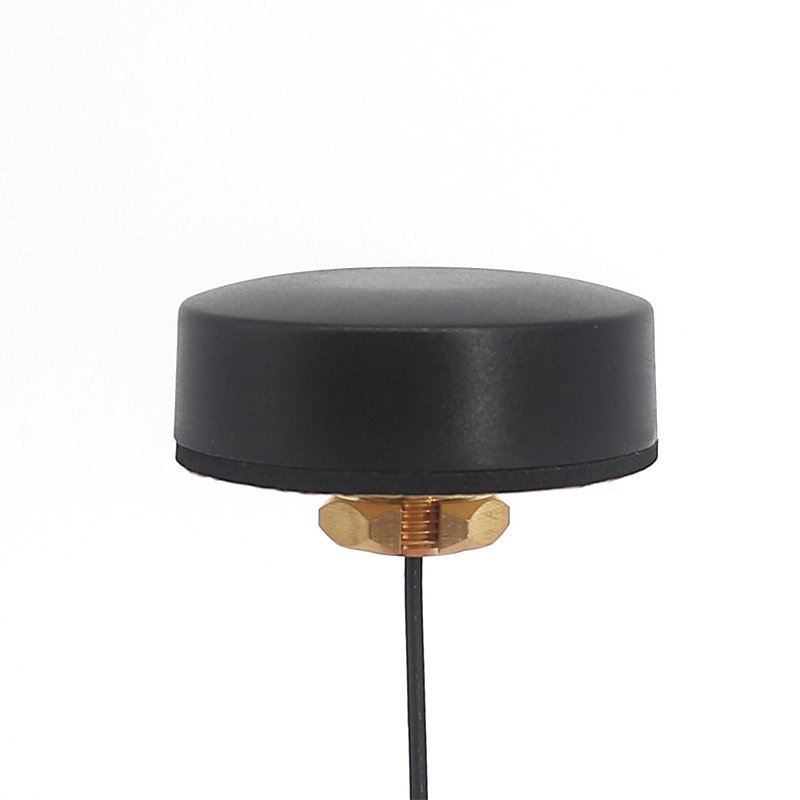

Close view of a black disc antenna with brass threaded screw mount

46*16mm Outdoor Waterproof 5dBi Aerial for SMA Male Antenna for Cabinet 4G 433MHz 2.4G 5.8G GSM GPRS Wifi

Name: Waterproof Cabinet Antenna 5dBi SMA Male 4G 2.4G
Price: 1.50 USD
Availability: InStock

● Metal-resistant antenna, suitable for installation on metal surfaces.
● Invisible antenna, designed with a small footprint.
● Large magnet design prevents slipping when installed on metal sides.
● UV material shell, resistant to outdoor wind and rain.
● Easy to install or replace, with slotted locking nuts and metal bolts for installation.
● Omni-directional radiation pattern

product details

This 46x16mm screw mount antenna is a 5dBi external antenna for equipment cabinets, covering GSM, GPS, 2.4G, 4G, and 5G bands. It is supplied with an SMA male connector for outdoor mounting on cabinets and enclosures.

Specifications

Frequency Range (MHz): GSM/GPS/2.4G/4G/5G/customized
Gain (dBi): 5; Horizontal Beamwidth (°): 360
VSWR: ≤1.5; Input Impedance (Ω): 50; Maximum Power (W): 50
Lightning Protection: DC grounding
Connector Type: Mini Fakra or Customized
Cable Type: RG174 or can be customized; Cable Length (Meter): 1.5 (customizable)
Material: ABS; Mount Way: Screw; Dimensions (mm): 16*46mm; Weight (g): 25

Applications

Suited to GSM/GPS terminals, 4G equipment, and monitoring devices in cabinets where a compact screw-mounted antenna with lightning protection is required.

OEM and ODM customization, including connector and cable options, is available from Yunding.
