50mm Factory Direct Sales Small Chili Antenna Dual Band 2.4G&5.8G Indoor Router Wifi Antenna with SMA/RP-SMA male Connector for Router

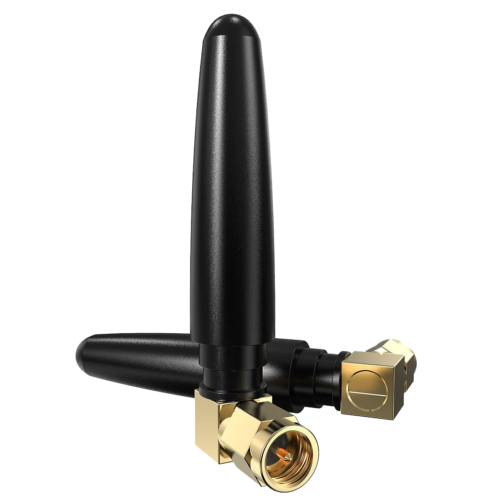

Two black small chili rubber antennas with gold right-angle SMA connectors

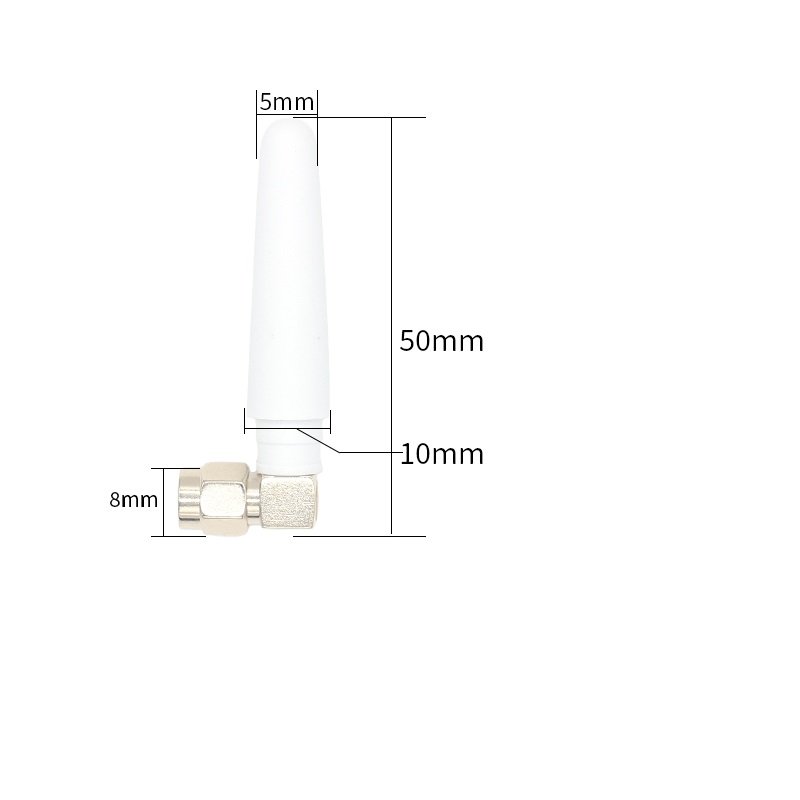

Drawing showing a white rubber duck antenna 50mm tall and 5mm wide

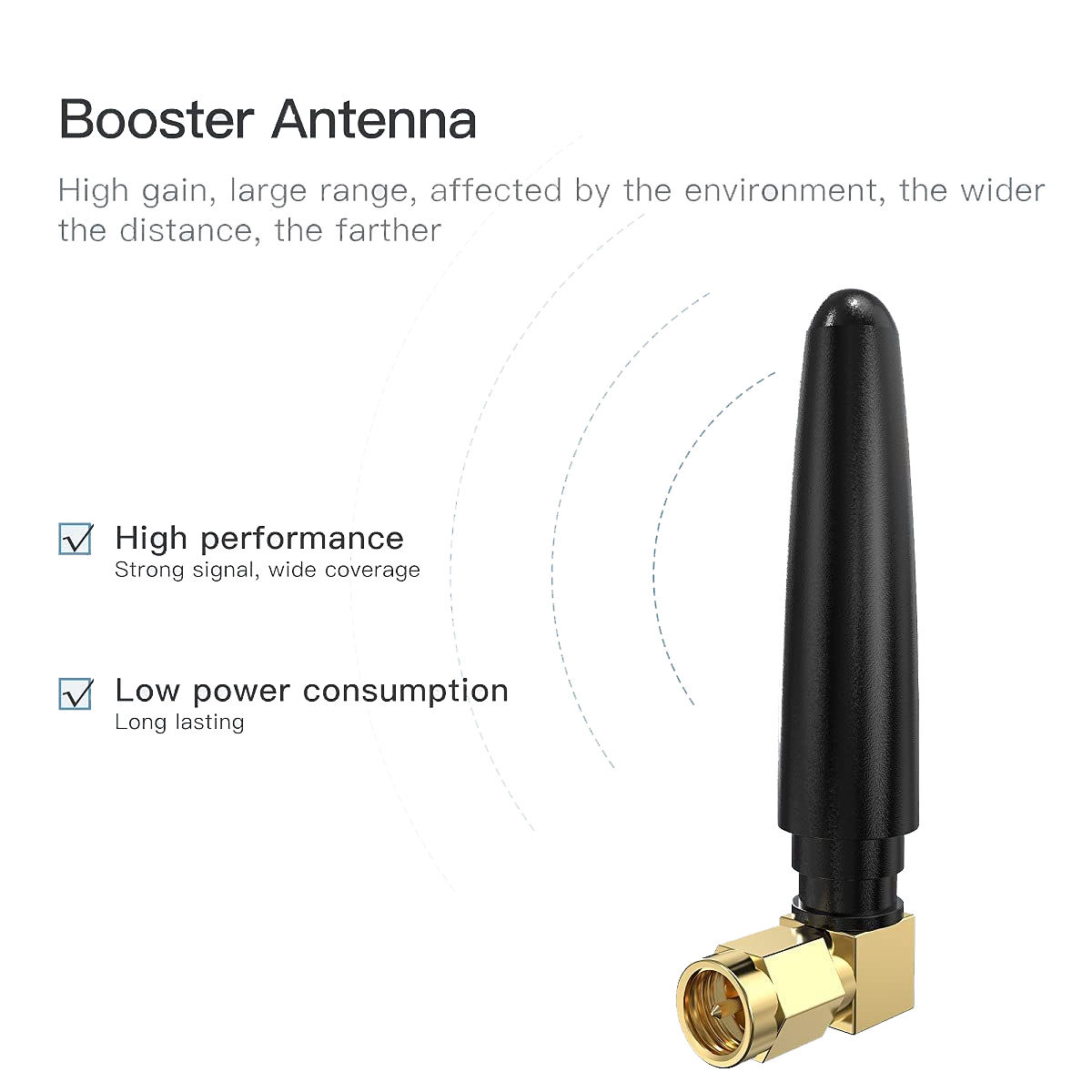

Panel showing a black stubby antenna with radiating signal arcs

Size panel showing a black stubby antenna 50mm long with 6.7mm caliber

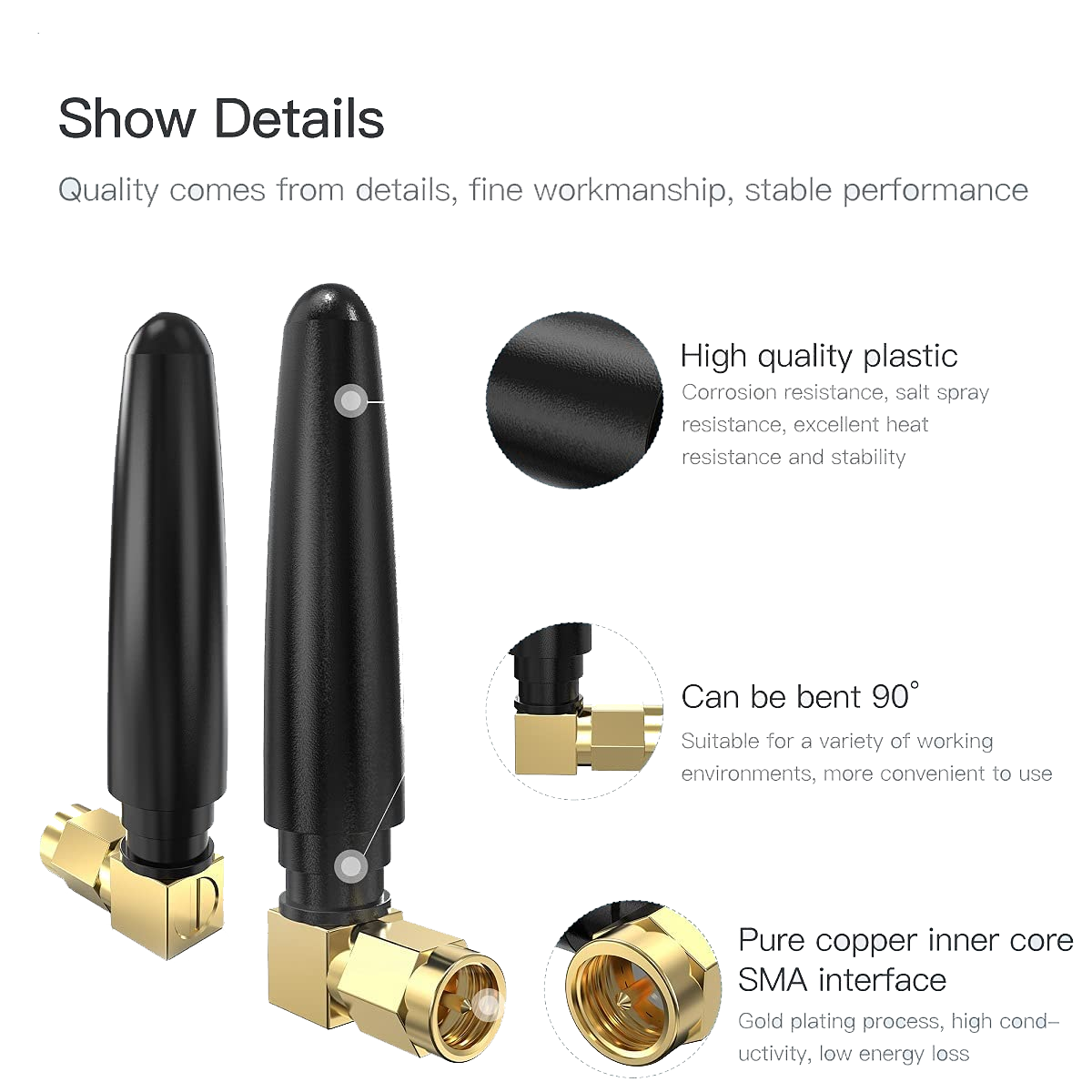

Antenna detail panel showing housing, 90 degree bend and copper SMA core

50mm Factory Direct Sales Small Chili Antenna Dual Band 2.4G&5.8G Indoor Router Wifi Antenna with SMA/RP-SMA male Connector for Router

Frequency customizable
Connector customizable
Color customizable
Miniature wireless module computer host antenna, with a wide range of applications including smart homes, security alerts, surveillance equipment, vending machines, etc.

product details

The 50mm chili antenna is a stubby indoor WiFi antenna for routers, covering both the 2.4G and 5.8G bands in one unit. The short profile fits indoor router cases where a full-length whip would not, keeping a single antenna on the RF port.

Specifications

Frequency Range (MHz)：GSM/2.4G&5.8G/WIFI/(Customized)
Gain (dBi):3 dBi
VSWR:≤1.5
Input Impedance (Ω):50
Color:White or Black
Connector type:Right Angle SMA male or RP-SMA male or Customized
Antenna lenght:50MM
Material:ABS/TPEE

Applications

Dual-band coverage suits WiFi routers and access points where the 5.8G band carries less interference while the 2.4G band keeps compatibility with older clients. The right angle SMA male connector lowers the profile near a wall, and RP-SMA male is available.

Customized connectors, colors, and lengths are supported through our OEM/ODM service.
