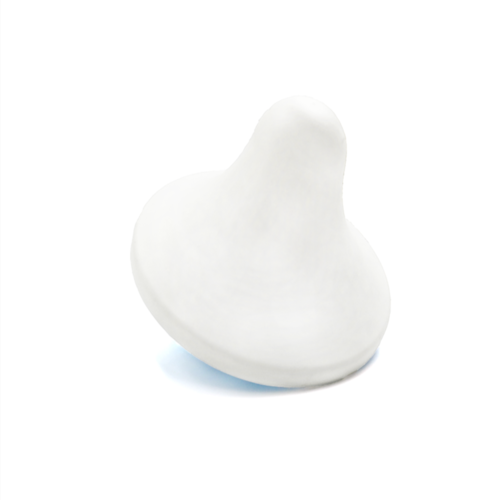

Hot Selling Long Range Indoor Ceiling Antenna Wifi Omnidirectional 2.4G/5.8G High-gain Wifi Indoor Antenna
Hot Selling Long Range Indoor Ceiling Antenna Wifi Omnidirectional 2.4G/5.8G High-gain Wifi Indoor Antenna
1. The ABS housing is waterproof and dustproof, effectively extending service life and adapting to harsh environments.
2. 360° signal coverage with no dead zones.
The ceiling-mounted antenna effectively avoids obstacles, providing seamless signal coverage.
3. N-type interface ensures secure connections.
It effectively extends service life and adapts to harsh environments.
4. Installation steps:
(1) Prepare a 20 mm hole in the ceiling or mounting panel.
(2) Remove the octagonal nut of the ceiling antenna and insert the white fixing rod into the prepared hole.
(3) Tighten the nut to complete the installation of the ceiling antenna.
2. 360° signal coverage with no dead zones.
The ceiling-mounted antenna effectively avoids obstacles, providing seamless signal coverage.
3. N-type interface ensures secure connections.
It effectively extends service life and adapts to harsh environments.
4. Installation steps:
(1) Prepare a 20 mm hole in the ceiling or mounting panel.
(2) Remove the octagonal nut of the ceiling antenna and insert the white fixing rod into the prepared hole.
(3) Tighten the nut to complete the installation of the ceiling antenna.
product details
|
Frequency Range (MHz)
|
4G/3G/GSM/2.4G/433MHZ/868MHZ/915MHZ/5.8G/5G(Customized)
|
|
Gain (dBi)
|
5DB
|
|
Horizontal Beamwidth (°)
|
360
|
|
VSWR
|
≤1.5
|
|
Input Impedance (Ω)
|
50
|
|
Polarization mode
|
Perpendicularity
|
|
Power capacity
|
10W/20W
|
|
Mechanical Characteristics
|
|
|
Connector type
|
S-M-A/N/Customized
|
|
Cable Type
|
RG174 or can be customized
|
|
Cable length (Meter)
|
50MM or Customized
|
|
Material
|
ABS/TPEE
|
|
Operating temperature
|
-30℃±75℃
|
|
Storage temperature
|
-30℃±75℃
|
