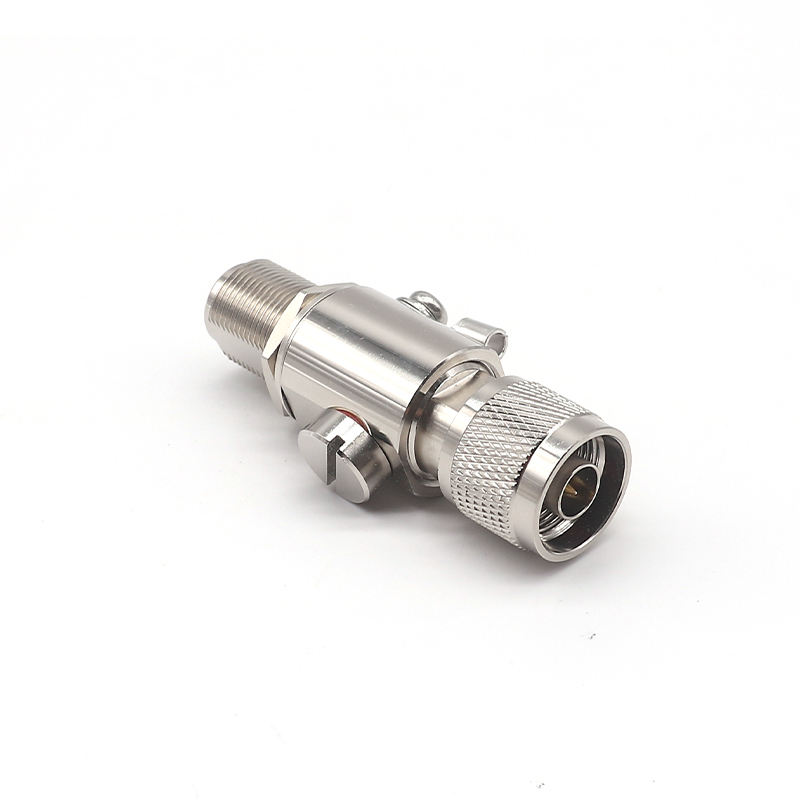

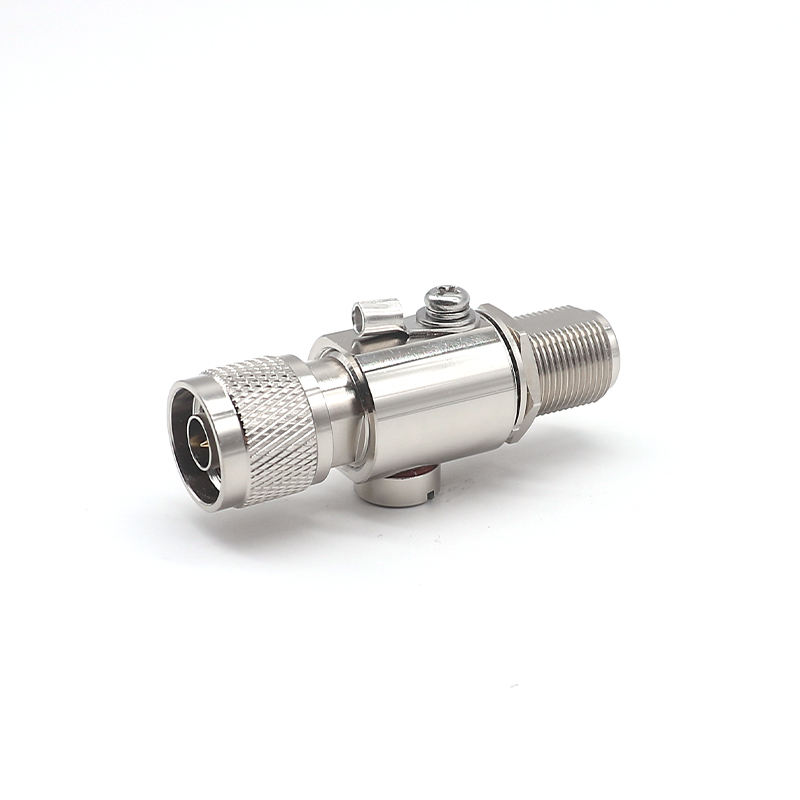

Yunding New Arrival N Female to Male Coaxial Lightning Surge Protector
Yunding New Arrival N Female to Male Coaxial Lightning Surge Protector
product details
|
Model
|
SPLA-6000-KJ
|
|
Connector
|
N male
|
|
Frequency Range
|
DC-6000
|
|
VSWR
|
≤1.5
|
|
Insertion loss
|
≤0.6
|
|
Power
|
500W PEP
|
|
Discharge voltage
|
DC90V士15%
|
|
Pulse discharge voltage (1X40)US
|
10000V
|
|
Pulse discharge current (1X40)US
|
30KA
|
|
(1X40)US500A can be repeatedly discharged for more than 500 times
|
DC90V士20%
|
|
100V insulation resistance
|
>100MΩ
|
|
Connector
|
N-J/N-K
|
|
Waterproofing grade
|
IP65
|
|
Dimensions
|
68X31X23
|
|
Weight
|
100G
|
|
Operating temperature
|
-10℃~+60℃
|
|
Storage temperature
|
-40℃-+80℃
|
