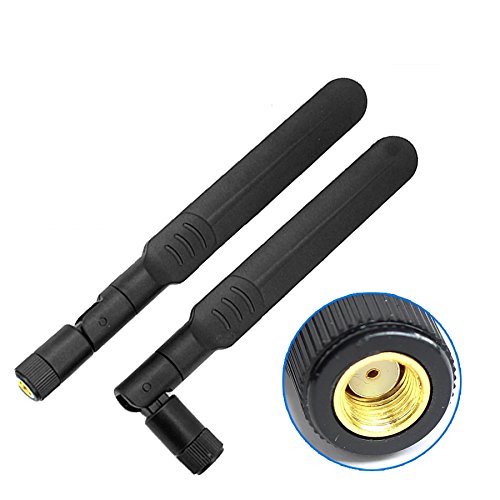

Two ribbed black antennas with N connectors and a close view of the socket

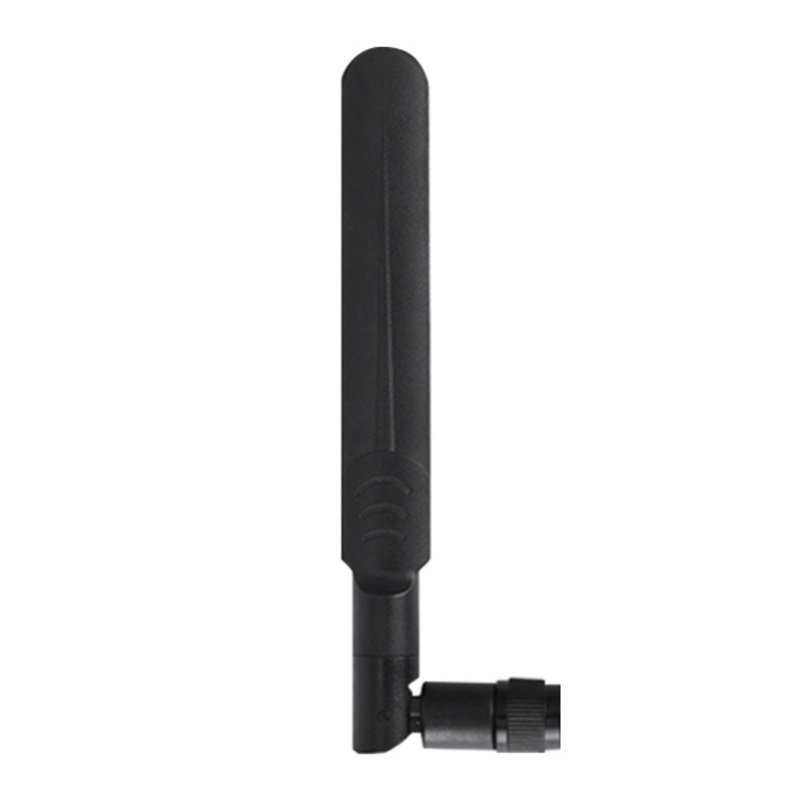

Black foldable antenna angled upward on its right angle N connector

Telescopic whip beside a folded black rubber antenna on white

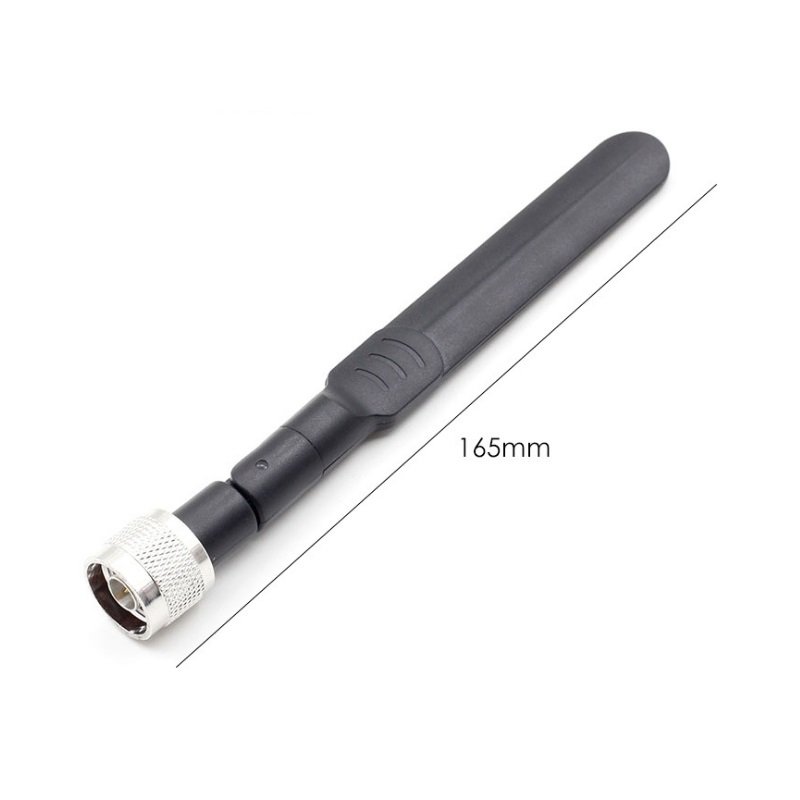

Black ribbed antenna 165mm long laid diagonally with N male plug

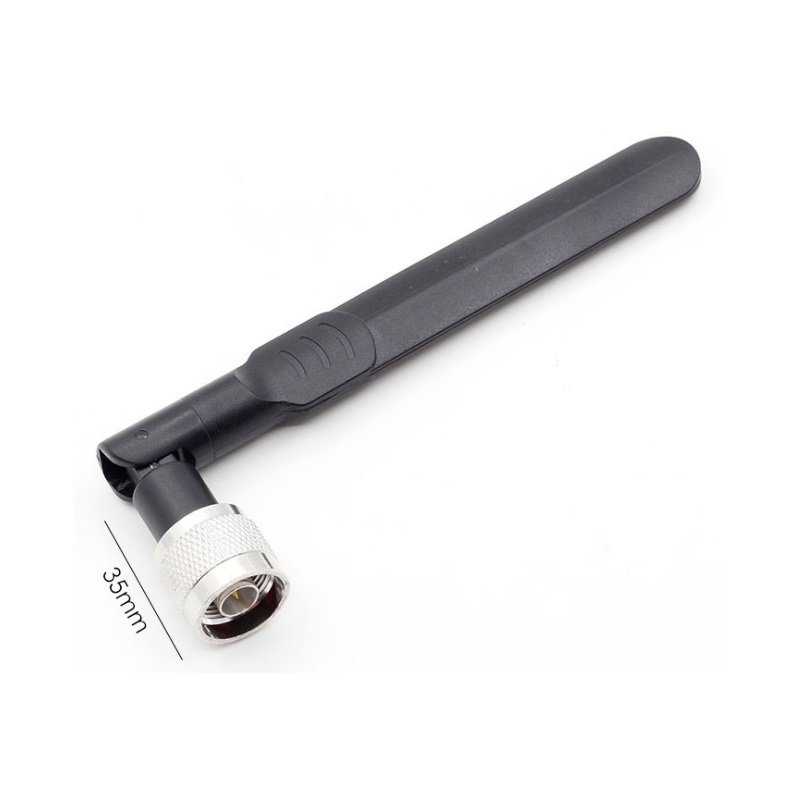

Foldable antenna bent at its 35mm hinge with chrome N connector

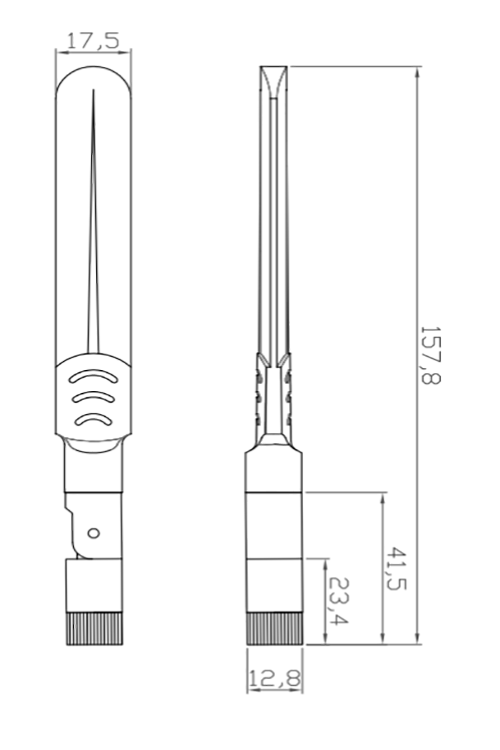

Drawing showing an antenna 157.8mm tall and 17.5mm wide with 41.5mm base

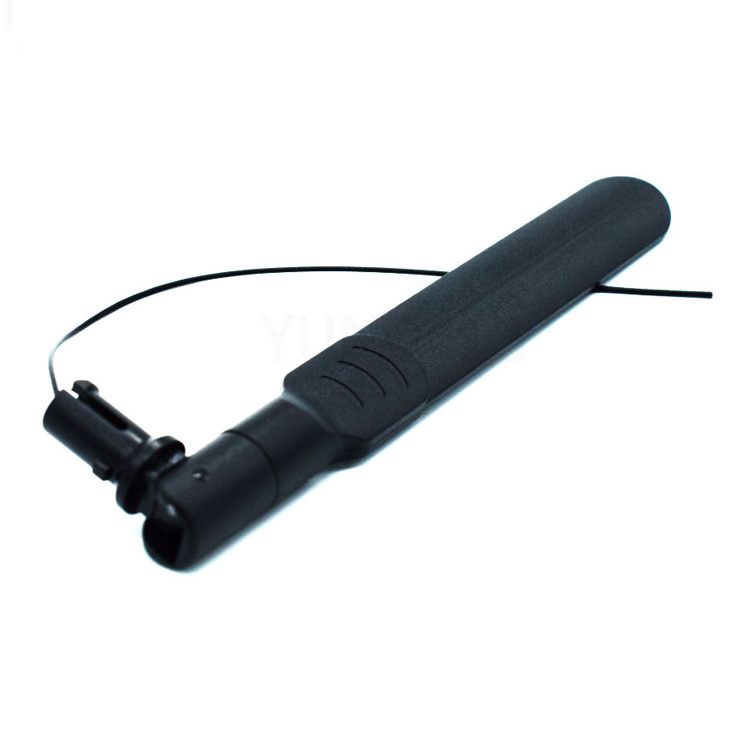

Black ribbed antenna with a thin pigtail cable looping over its body

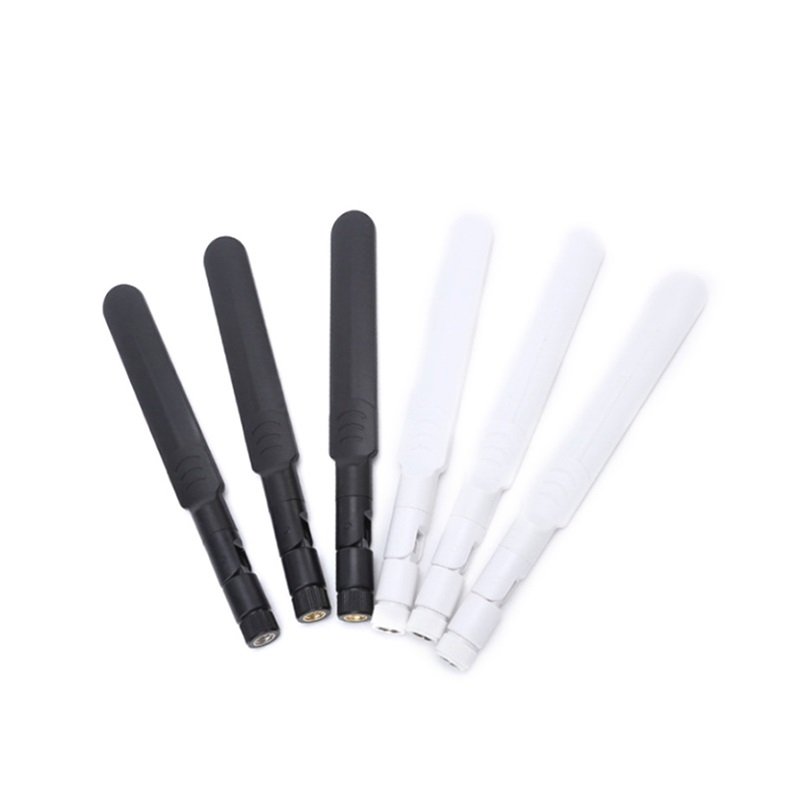

Six black and white stubby antennas fanned out with brass connectors

Black paddle antenna with twin U.FL pigtail cables curving below it

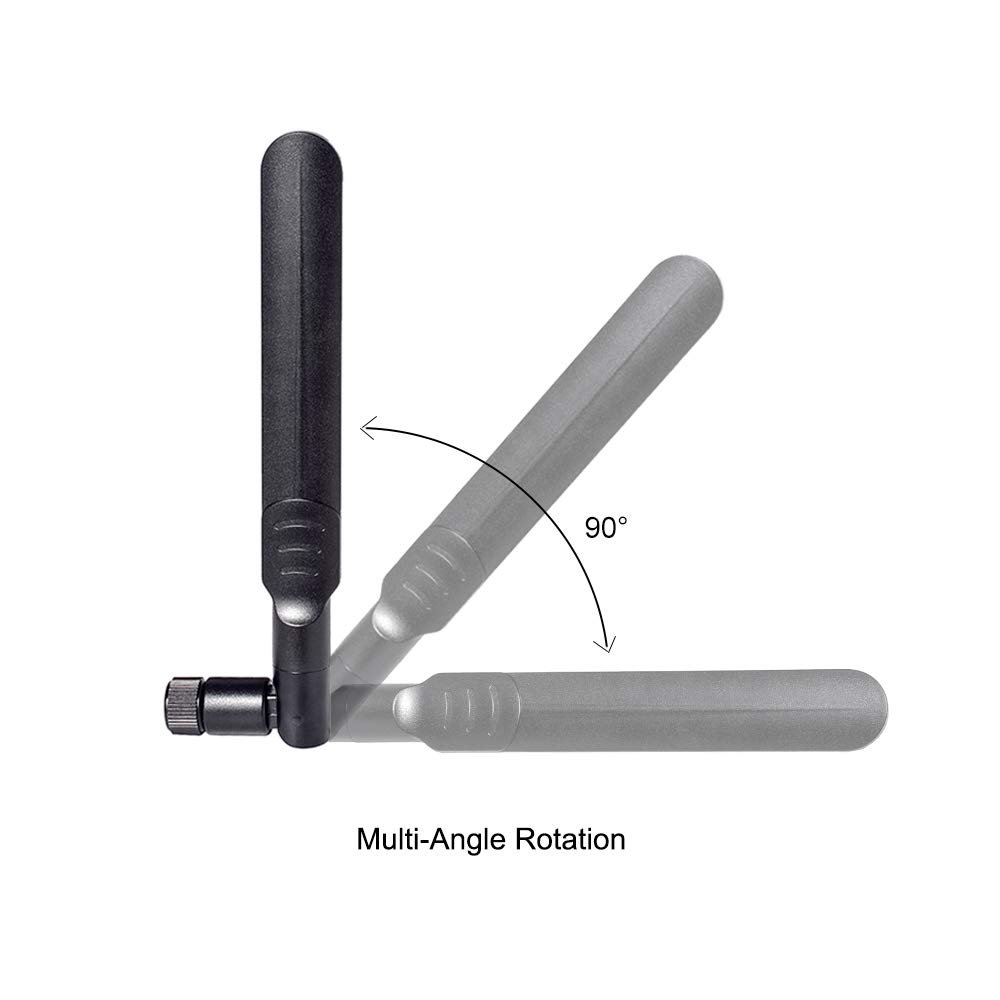

Diagram showing a paddle antenna rotating through 90 degrees on its hinge

Black paddle antenna lying flat with two thin coaxial pigtails attached

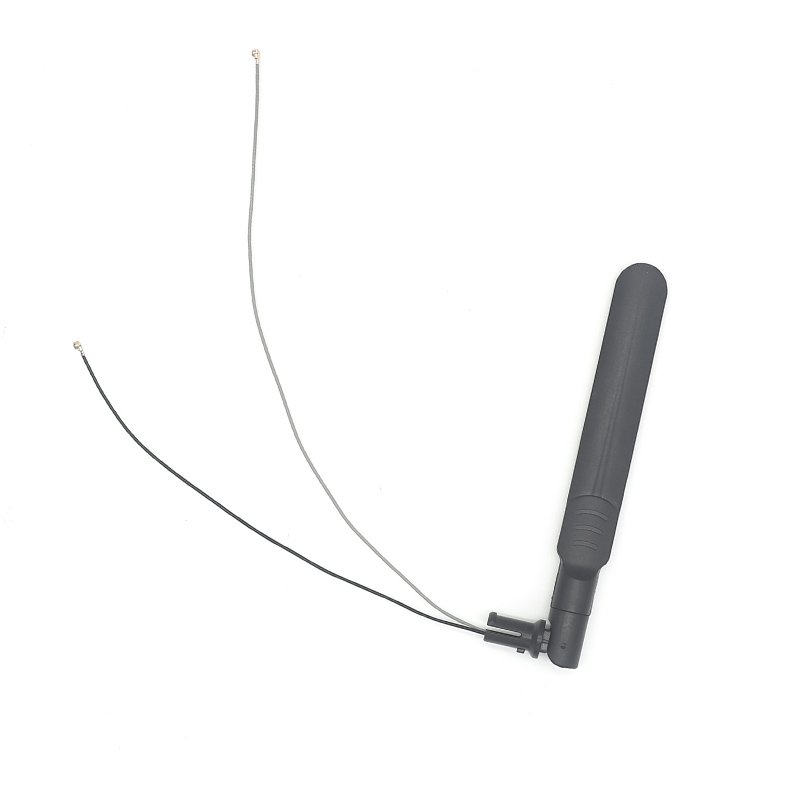

Upright paddle antenna with a pair of U.FL leads looping to the right

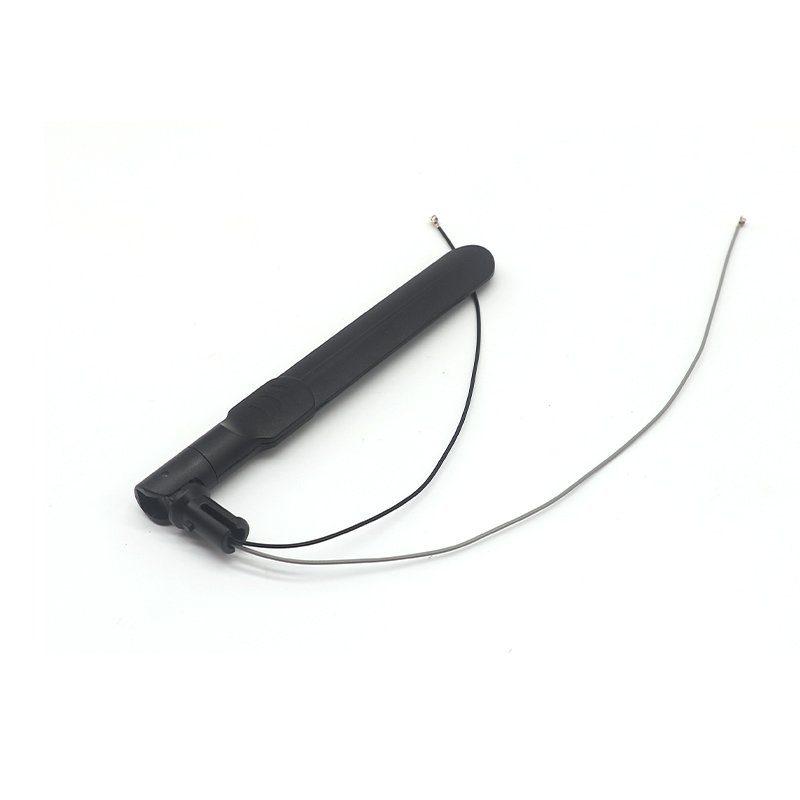

Angled paddle antenna with two pigtail cables sweeping across the frame

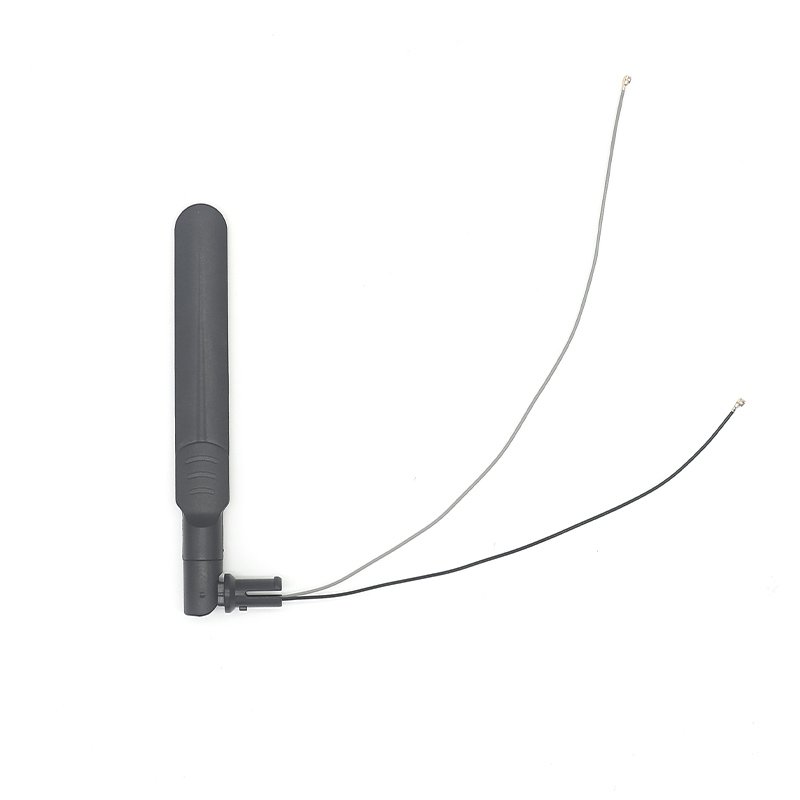

Paddle antenna on the right with two U.FL cables curving to the left

Antenna connected to a green mini PCI-E card with connector close-ups

Vertical paddle antenna with a single U.FL pigtail looping beneath

160mm Length 5.0dBi High Gain N Male Foldable 868MHz 915 Aerial N Male Elbow 4G Rubber Antenna

Frequency customizable
Connector customizable
Color customizable
Miniature wireless module computer host antenna, with a wide range of applications including smart homes, security alerts, surveillance equipment, vending machines, etc.

product details

This 160 mm rubber antenna is a foldable, omnidirectional whip with an N male elbow connector, aimed at 868/915 MHz ISM radios and 4G equipment. The ABS/TPEE body resists handling during installation, and the hinged elbow base lets the element pivot into a compact position for transport and storage.

Specifications

Frequency range (MHz): 433/868/915/2.4G/5.8G/2.4 and 5.8G/GSM/4G (customized)
Gain: 5 dBi
VSWR: <=1.5
Input impedance: 50 Ohm
Color: white or black or customized
Connector type: UFL/N male/TNC/SMA male/RP-SMA male or customized
Antenna length: 160 mm
Material: ABS/TPEE

Applications

It suits gateways, routers, and radio modules working on the 868/915 MHz, 2.4 GHz, 5.8 GHz, GSM, or 4G bands, where a pivoting mount is needed to direct the radiator and protect it from impact.

OEM and ODM customization is available through Yunding Antenna, including connectors, colors, and cable assemblies.
