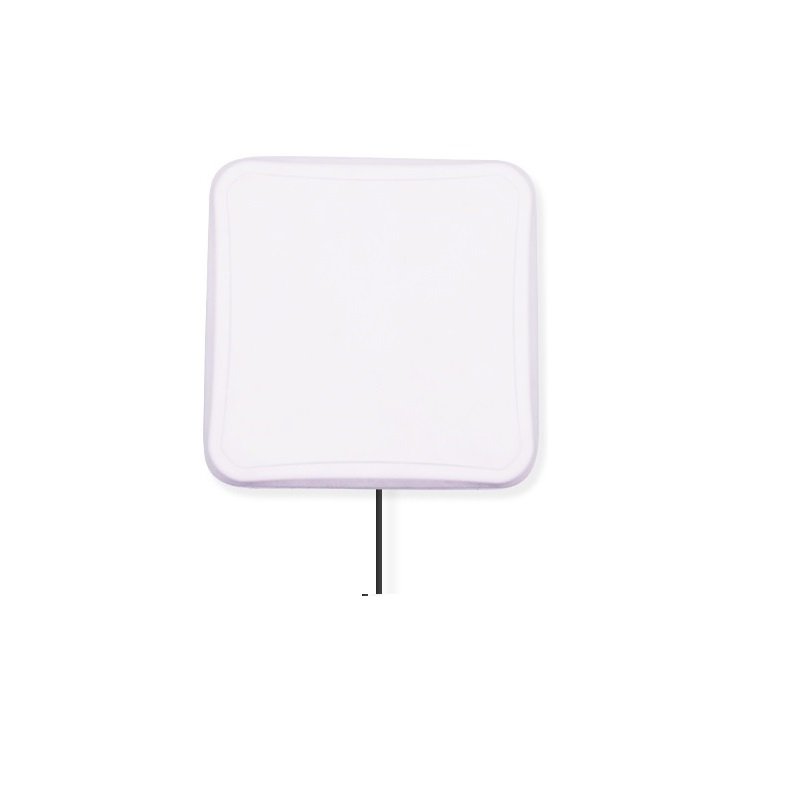

19019025mm Factory Hot Selling 7DBI Directional Outdoor Waterproof Panel Antenna 4G LTE Outdoor Waterproof Panel Antenna

A.7DB high gain signal

B. IP66 Class waterproof, ABS material ,heat resistant, cold protection, stable and safe

C.Elegant appearance, simple installation, stable performance

D. Good performance in anti-vibration and resistant to aging

product details

Frequency Range	2G/2.4G/3G/4G/5G/OEM
Polarization	Vertical
Gain	7dBi
VSWR	≤1.5
Horizontal Beamwidth	65°
Vertical Beamwidth	55°
Nominal Impedance	50Ω
Maximum Power	100W
Connector	SMA-male or can be customized
Mounting Type	Wall Mount
Cable Length	1M RG58 or Customized
Dimensions	19019025mm
Radome Material	ABS
Radome Color	White or Customized
Relative Humidity	Up to 100%
Operating Temperature	-40~+60℃

Product Applications

Application for vending machine,advertising player, self-service machine, digital cinema

Product Mounting

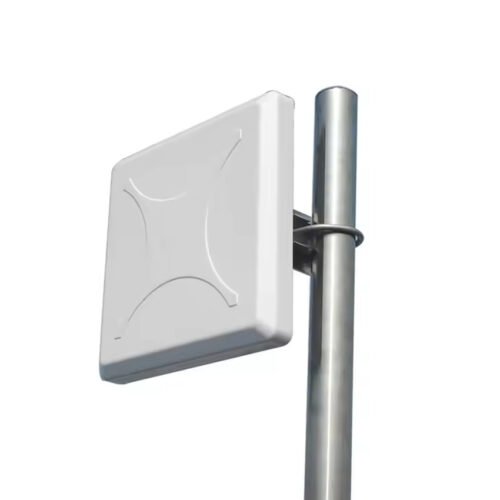

Antenna can be mounted on any steel frame or column with its built-in bracket or user’s bracket and be connected with reader, through coaxial cable. It can be installed horizontally or vertically according to the bracket’s position. The antenna tilt can be adjusted according to the actual applications. Antenna bracket is an optional accessory and customers can choose it according to actual need
