24.9X14.4mm Built-in 2.4GHz 5.8Ghz Dual Band Flexible Internal UFL Embedded FPC Antenna with 3dbi Gain and 1.5:1 VSWR

Black rectangular FPC antenna with black cable and printed 2.4/5G text

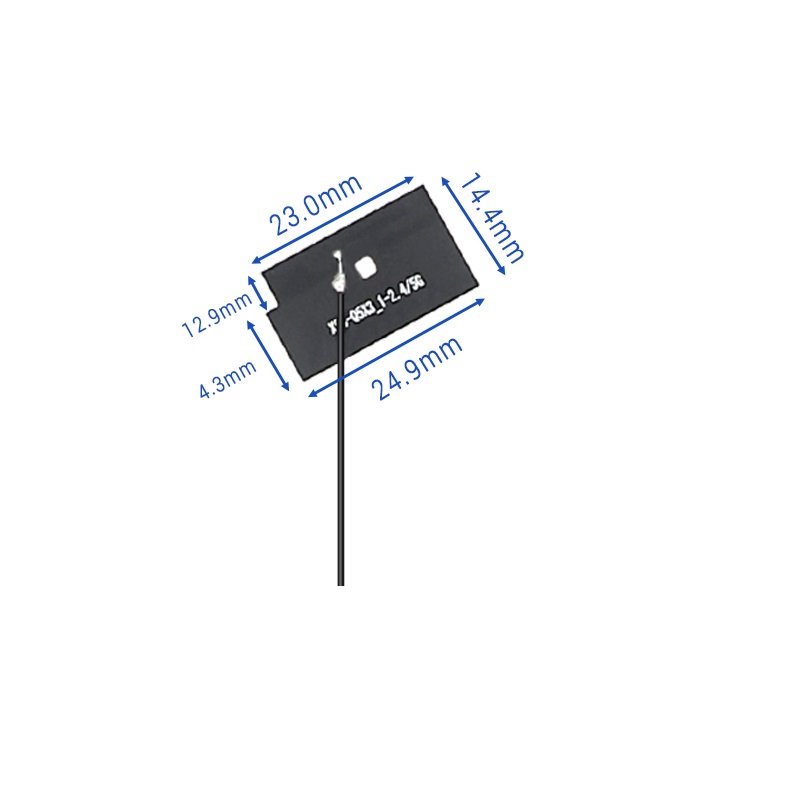

Angled dual band FPC antenna 24.9mm by 14.4mm with centre feed pad

24.9X14.4mm Built-in 2.4GHz 5.8Ghz Dual Band Flexible Internal UFL Embedded FPC Antenna with 3dbi Gain and 1.5:1 VSWR

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This 24.9X14.4mm Yunding FPC antenna is an embedded dual-band internal antenna for 2.4GHz and 5.8GHz, fitted with a UFL connector. The flexible element provides 3dBi gain with a 1.5:1 VSWR for built-in placement in wireless equipment.

Specifications

Antenna Name: FPC internal antenna
Antenna material: Pure copper
Antenna cable: RG1.13 or Customized
Connector type: IPEX/Direct welding( Customized)
Antenna Frequency Range: 2400-2500mhz/5100-5800mhz
Gain: 3dBi
V.S.W.R: ≤1.5
Impendance: 50Ω
Polarization: linearity
Operating Temperature: -30℃~+75℃
Application field: Wireless monitoring/WIFI/ZIGBEE/Bluetooth module/Smart home/Smart wear

Applications

Applications include ZigBee and Bluetooth modules, smart home equipment, smart wear, and wireless monitoring systems. Dual-band coverage lets one antenna handle 2.4 GHz and 5 GHz links in a single device.

Yunding supports OEM/ODM production with custom connector, cable, and frequency options.
