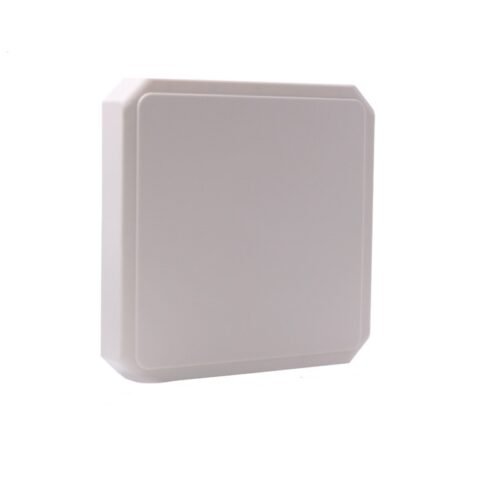

257*257*33mm Waterproof IP67 Long Range 9dBi Circular Polarization Outdoor Panel UHF RFID Antenna 50 Ohm for Parking Management System
257*257*33mm Waterproof IP67 Long Range 9dBi Circular Polarization Outdoor Panel UHF RFID Antenna 50 Ohm for Parking Management System
Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
Mechanical Properties:
A.Easy to install, pleasing appearance with small size,double waterproof design with waterproof ring and silica gel,rib reinforcement design for shell, suitable for various severe environments
B.Reading speed is accurate and fast, high data security, and long distance
C.It can be connected with the read and write module or split -type
product details
|
Frequency Range
|
860-960MHz
|
|
VSWR
|
≤1.3:1
|
|
Agreement
|
ISO18000-6C(EPC GEN2)
|
|
Gain
|
> 9 dBic
|
|
Read a distance
|
0-10 meters (depending on the card reader and label)
|
|
Bandwidth
|
100MHz
|
|
Maximum power
|
100W
|
|
Before and after F/B
|
≧23
|
|
H side HPBW
|
70°
|
|
E side HPBW
|
70°
|
|
Polarization
|
circular polarization
|
|
Relative humidity
|
5%~95%
|
|
Impedance
|
50Ω
|
|
Lightning protection protection
|
DC
|
|

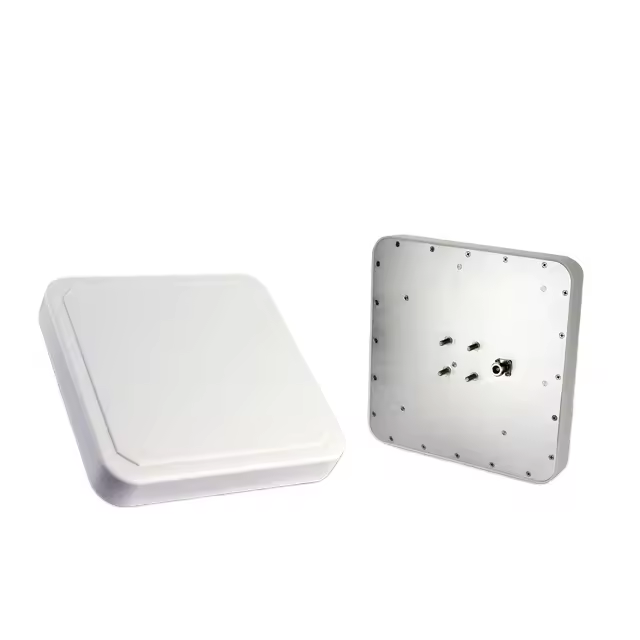

Connector Type
|
N Female (one input port)
|
|
Mechanical Specifications
|
|
|

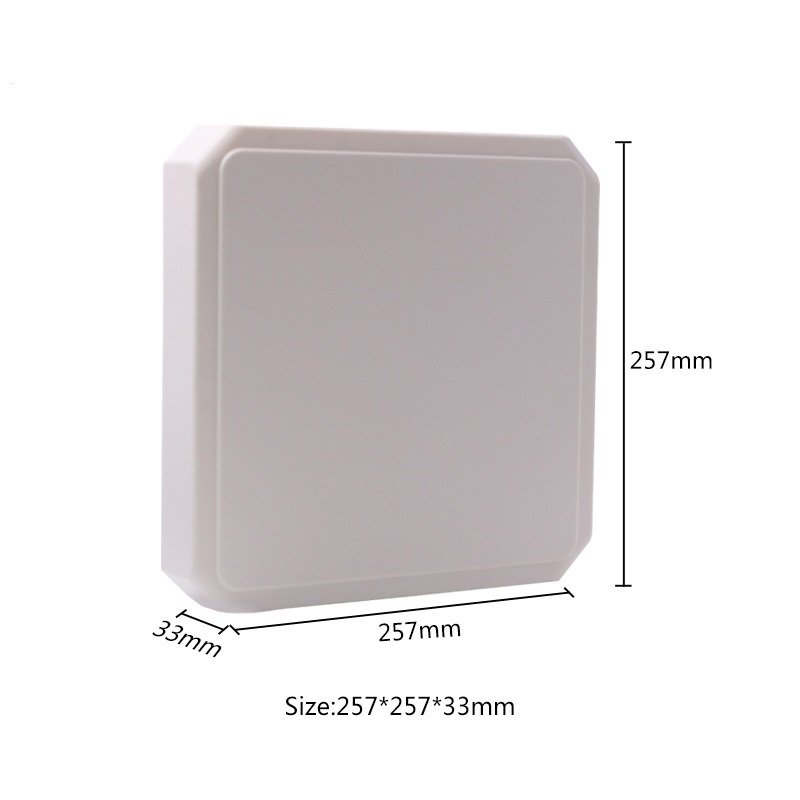

Size
|
257*257*33mm
|
|
Weight
|
0.8kg (bracket excluded)
|
|
Reflective Material
|
aluminum
|
|
Outer outer cover material
|
Engineering plastics ABS
|
|
Color
|
white
|
|
Production Class
|
IP67
|
|
Operating Temperature
|
-40℃~+ 85℃
|
|
Storage Temperature
|
-40℃~+ 85℃
|
|
Pole diameter
|
Φ40-Φ75
|
|
Single packaging
|
31*29.5*8.5cm / 2KG
|
|
Standard box specification
|
10pcs/carton 44*32*64cm / 18.1kg
|
