290X210X65MM Yunding Wholesales High Gain Long Range Waterproof LPDA Outdoor Antenna Directional GSM 3G Wifi 4G LTE Log Periodic Antenna
290X210X65MM Yunding Wholesales High Gain Long Range Waterproof LPDA Outdoor Antenna Directional GSM 3G Wifi 4G LTE Log Periodic Antenna
1、Wireless Communication outdoor system GSM/3G/4G/5G full band
2、Stable performance, high -strength gain
3、Lighting-proof, rain-proof
4、High-efficiency reception signal
5、Conical vibrator true wide frequency
6、Enhance signal gain, wide application scope, can be used for Internet of Things gateway, wireless control, smart devices, smart home, smart monitoring, and weaker signals need to be improved
product details
| ELECTRICAL | |
| Frequency Range | 4G/5G/2.4G/GSM |
| Bandwidth | 262/990-MHz |
| Gain | 12-dBi |
| Beamwidth | H：65/50-° E：40-° |
| F/B ratio | ≥18-dB |
| VSWR | ≤1.5 |
| Polarization | Vertical |
| Max power | 100 -W |
| Nominal Impedance | 50 -Ω |
|
MECHANICAL |
|
| Connector | N female or customized |

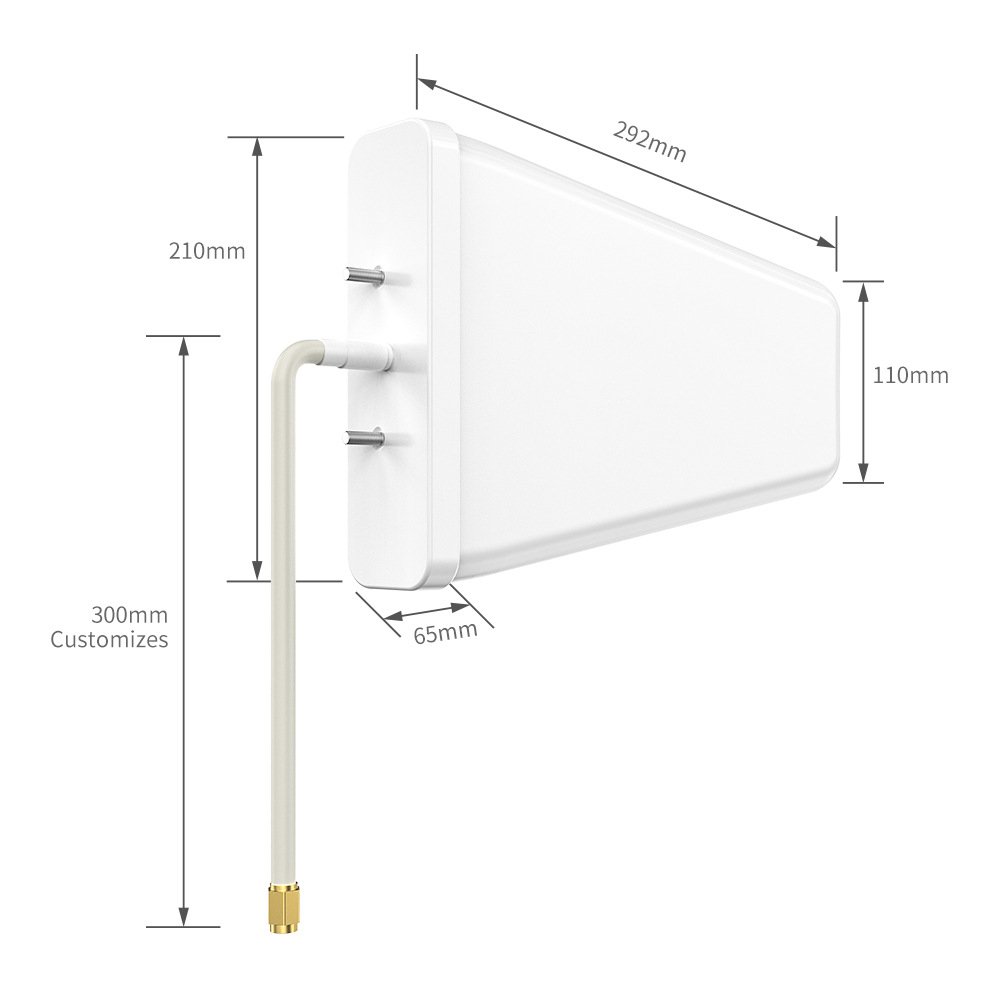

| Antenna Dimension | 290X210X65MM |
| Weight | 1-kg |
| Rated Wind Velocity | 60-m/s |

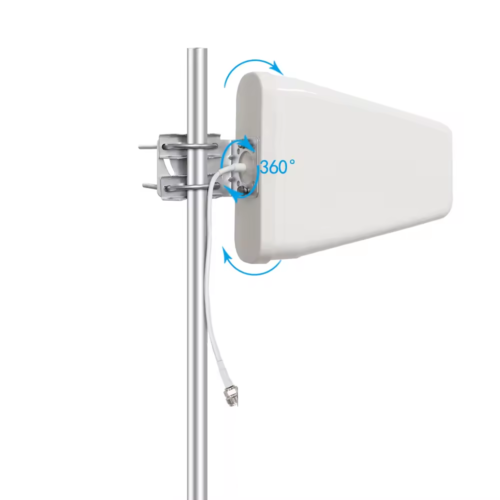

| Mounting Kits | L bracket & U bolts |
| Mounting Mast Diameter |
Ф40-Ф50-mm |
