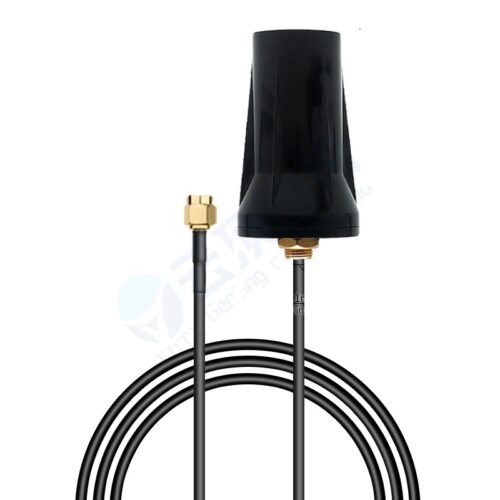

77*47mm Reinforce Explosion-proof Cabinet Combination Antenna 4G GSM Outdoor WiFi Antenna
77*47mm Reinforce Explosion-proof Cabinet Combination Antenna 4G GSM Outdoor WiFi Antenna
● Metal-resistant antenna, suitable for installation on metal surfaces.
● Invisible antenna, designed with a small footprint.
● Large magnet design prevents slipping when installed on metal sides.
● UV material shell, resistant to outdoor wind and rain.
● Easy to install or replace, with slotted locking nuts and metal bolts for installation.
● Omni-directional radiation pattern
product details
|
Frequency Range (MHz)
|
GSM/GPS/2.4G/4G/5G/customized
|
|
Gain (dBi)
|
7 |
|
Horizontal Beamwidth (°)
|
360
|
|
VSWR
|
≤1.5
|
|
Input Impedance (Ω)
|
50
|
|
Maximum Power (W)
|
50
|
|
Lightning Protection
|
DC grounding
|
|
Mechanical Characteristics
|
|
|
Connector type
|
SMA-J or Customized
|
|
Cable Type
|
RG174 or can be customized
|
|
Cable length (Meter)
|
1.5 (customizable)
|
|
Material
|
ABS
|
|
Mount way
|
Screw
|
|

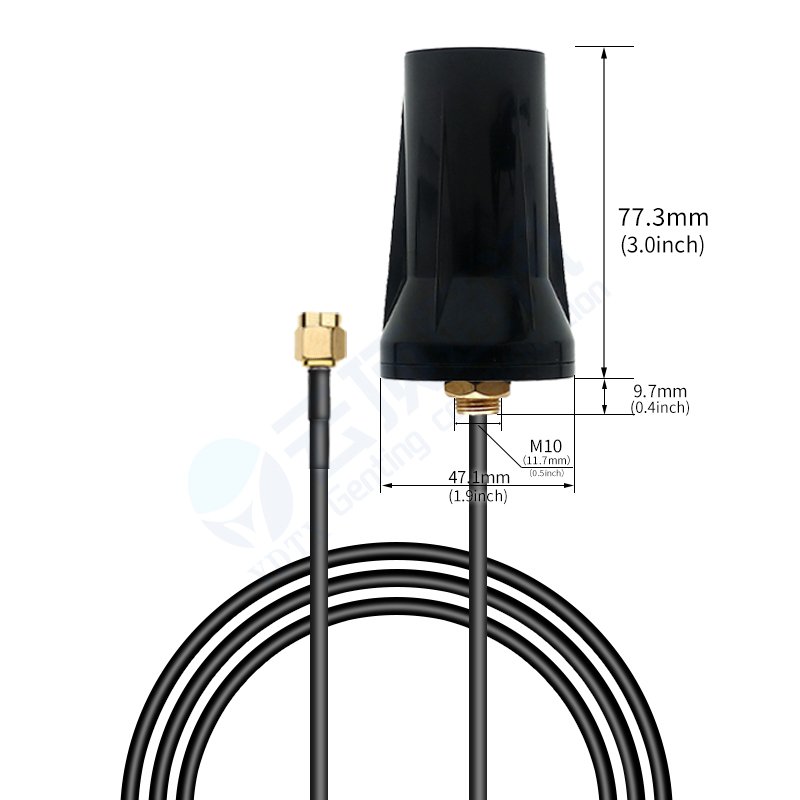

Dimensions (mm)
|
77.3*47.1mm
|
|
Weight (g)
|
25
|
