50mm Factory Direct Sales 2.4G 2400-2500mhz Rubber Duck Antenna Omni Directional Wifi Antenna for WiFi Router

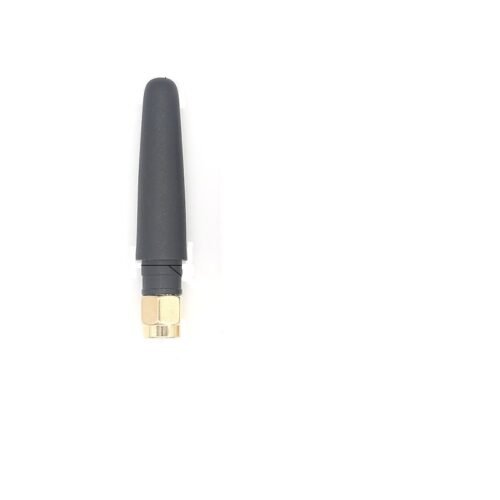

Short black rubber duck antenna with a gold threaded connector.

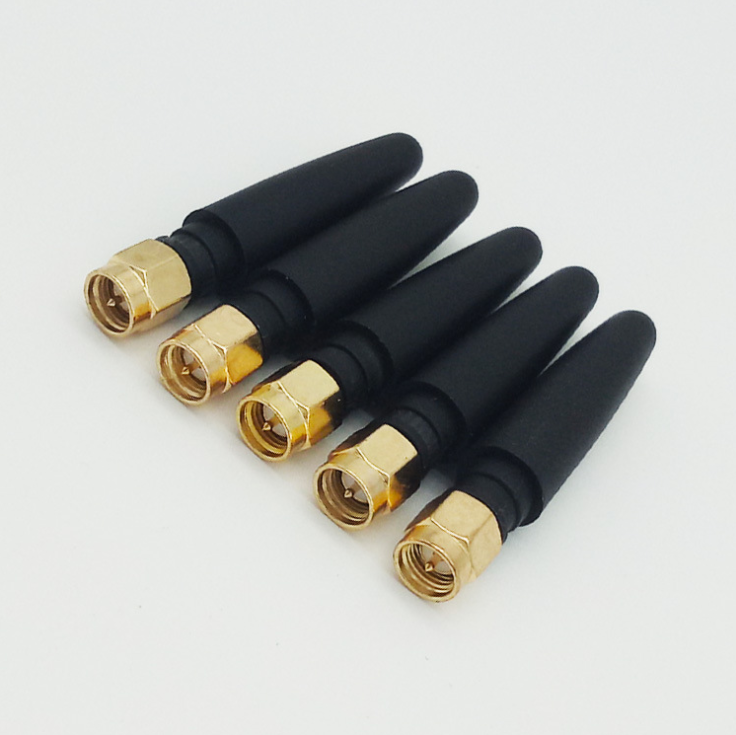

Five short black rubber antennas lined up with brass SMA plugs

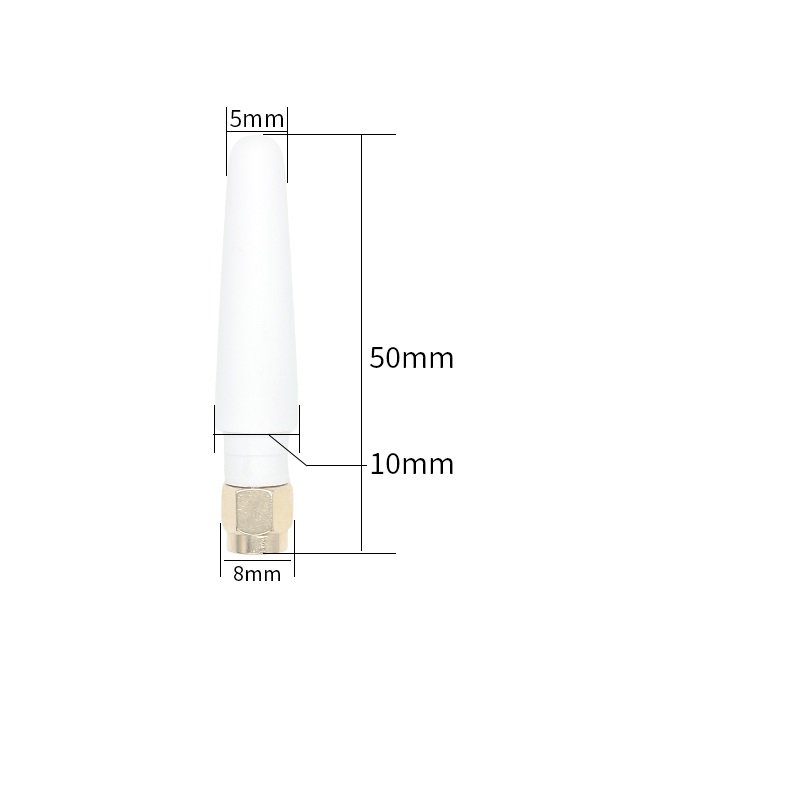

Drawing showing a white stubby antenna 50mm tall and 8mm wide

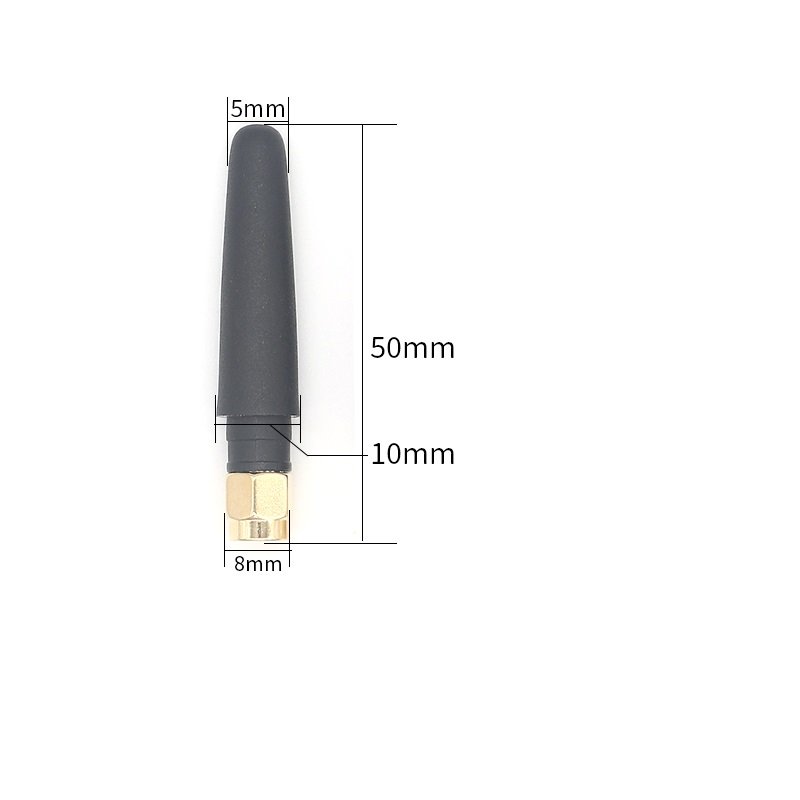

Drawing showing a black stubby antenna 50mm tall with 10mm SMA base

50mm Factory Direct Sales 2.4G 2400-2500mhz Rubber Duck Antenna Omni Directional Wifi Antenna for WiFi Router

Frequency customizable
Connector customizable
Color customizable
Miniature wireless module computer host antenna, with a wide range of applications including smart homes, security alerts, surveillance equipment, vending machines, etc.

product details

The 50mm rubber duck antenna is an omni-directional WiFi antenna for 2.4G WiFi routers. It operates in the 2400-2500MHz band, the working range of standard 2.4G wireless equipment, keeping signal uniform in all horizontal directions.

Specifications

Frequency Range (MHz)：GSM/2.4G&5.8G/WIFI/(Customized)
Gain (dBi):3 dBi
VSWR:≤1.5
Input Impedance (Ω):50
Color:White or Black
Connector type:SMA male or RP-SMA male or Customized
Antenna lenght:50MM
Material:ABS/TPEE

Applications

The 2400-2500MHz band is the working range of WiFi routers and access points. This antenna suits WiFi router units, indoor access points, and 2.4G terminals that need an external omni-directional antenna. The SMA male and RP-SMA male options match common router RF ports.

OEM/ODM customization is supported for connector, color, and antenna length.
