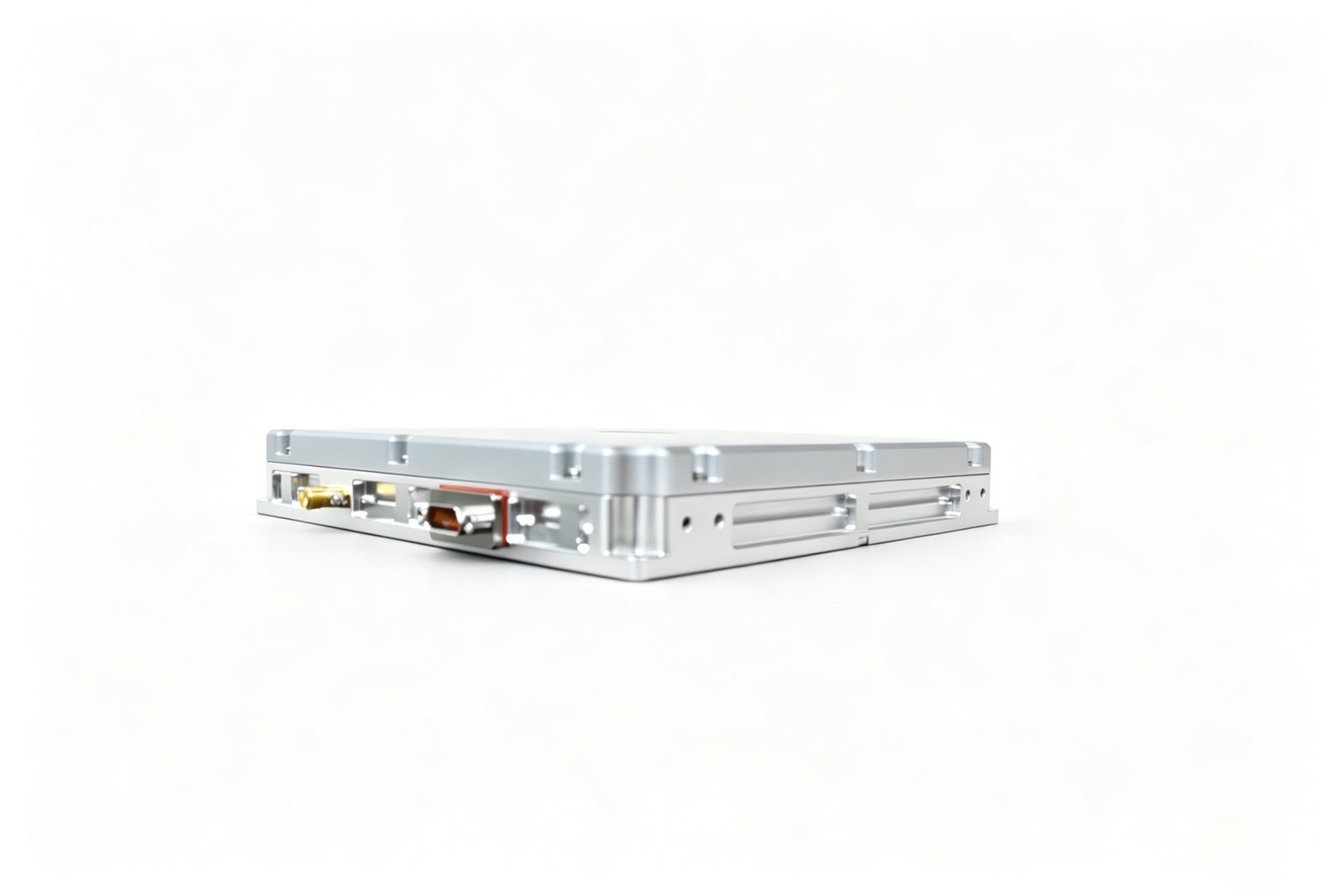

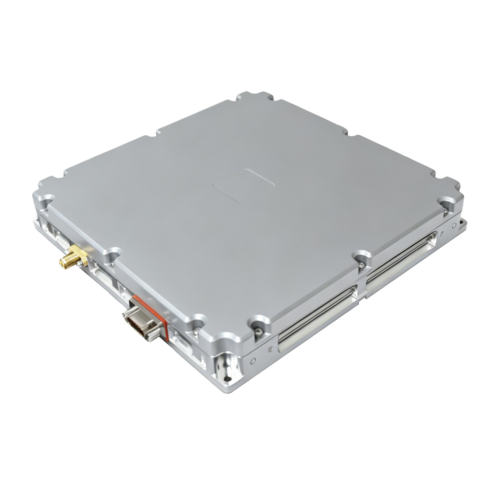

YDAJ-P8160D Dual-8 Elements 160x160mm High-Performance Anti-Jamming GNSS Antenna BDS_B1 Galileo E1 GPS L1 + L5 Industry Drones Anti-Jaming

YDAJ-P8160D Dual-8 Elements 160x160mm High-Performance Anti-Jamming GNSS Antenna BDS_B1 Galileo E1 GPS L1 + L5 Industry Drones Anti-Jaming - Image 3

YDAJ-P8160D Dual-8 Elements 160x160mm High-Performance Anti-Jamming GNSS Antenna BDS_B1 Galileo E1 GPS L1 + L5 Industry Drones Anti-Jaming - Image 4

YDAJ-P8160D Dual-8 Elements 160x160mm High-Performance Anti-Jamming GNSS Antenna BDS_B1 Galileo E1 GPS L1 + L5 Industry Drones Anti-Jaming - Image 5

YDAJ-P8160D Dual-8 Elements 160x160mm High-Performance Anti-Jamming GNSS Antenna BDS_B1 Galileo E1 GPS L1 + L5 Industry Drones Anti-Jaming - Image 6

YDAJ-P8160D Dual-8 Elements 160x160mm High-Performance Anti-Jamming GNSS Antenna BDS_B1 Galileo E1 GPS L1 + L5 Industry Drones Anti-Jaming - Image 7

YDAJ-P8160D Dual-8 Elements 160x160mm High-Performance Anti-Jamming GNSS Antenna BDS_B1 Galileo E1 GPS L1 + L5 Industry Drones Anti-Jaming - Image 8

YDAJ-P8160D Dual-8 Elements 160x160mm High-Performance Anti-Jamming GNSS Antenna BDS_B1 Galileo E1 GPS L1 + L5 Industry Drones Anti-Jaming - Image 9

YDAJ-P8160D Dual-8 Elements 160x160mm High-Performance Anti-Jamming GNSS Antenna BDS_B1 Galileo E1 GPS L1 + L5 Industry Drones Anti-Jaming

Name: Magnetic RTK GNSS GPS Mushroom Type Antenna 5.5dBi
Price: 2522.00 USD
Availability: InStock

Main Functions:

Received Frequency Bands:L1+L5 frequency bands: L1:BDS B1I/B1C, GPS_L1, Galileo E1 L5:BDS B2a ,GPS_L5, Galileo E5a

Anti-jamming Types: Capable of resisting various suppression interferences such as broadband,narrowband,frequency – sweeping,pulse as well as the combination of the above interferences

Built-in receiver, capable of outputting positioning solution results after anti-interference processing.

Support RF output after anti-interference processing

More spatial freedom The 8-array array provides 8-channel signal processing, with deeper and narrower zero-sink depths.

Application: Ground Vehicles, Offshore Platforms, Port Automation, High-Precision Surveying

product details

Type: GPS/GNSS Antenna

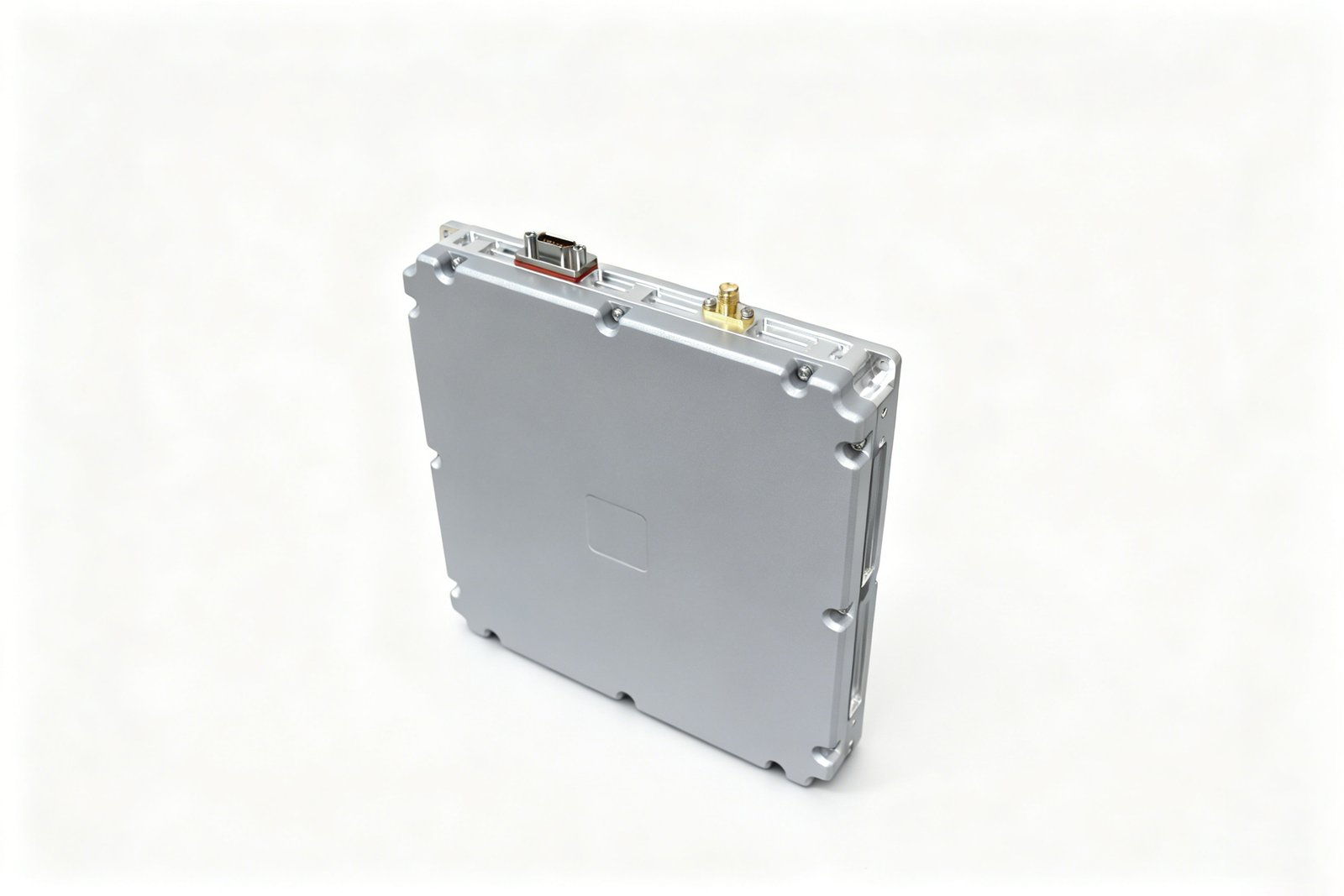

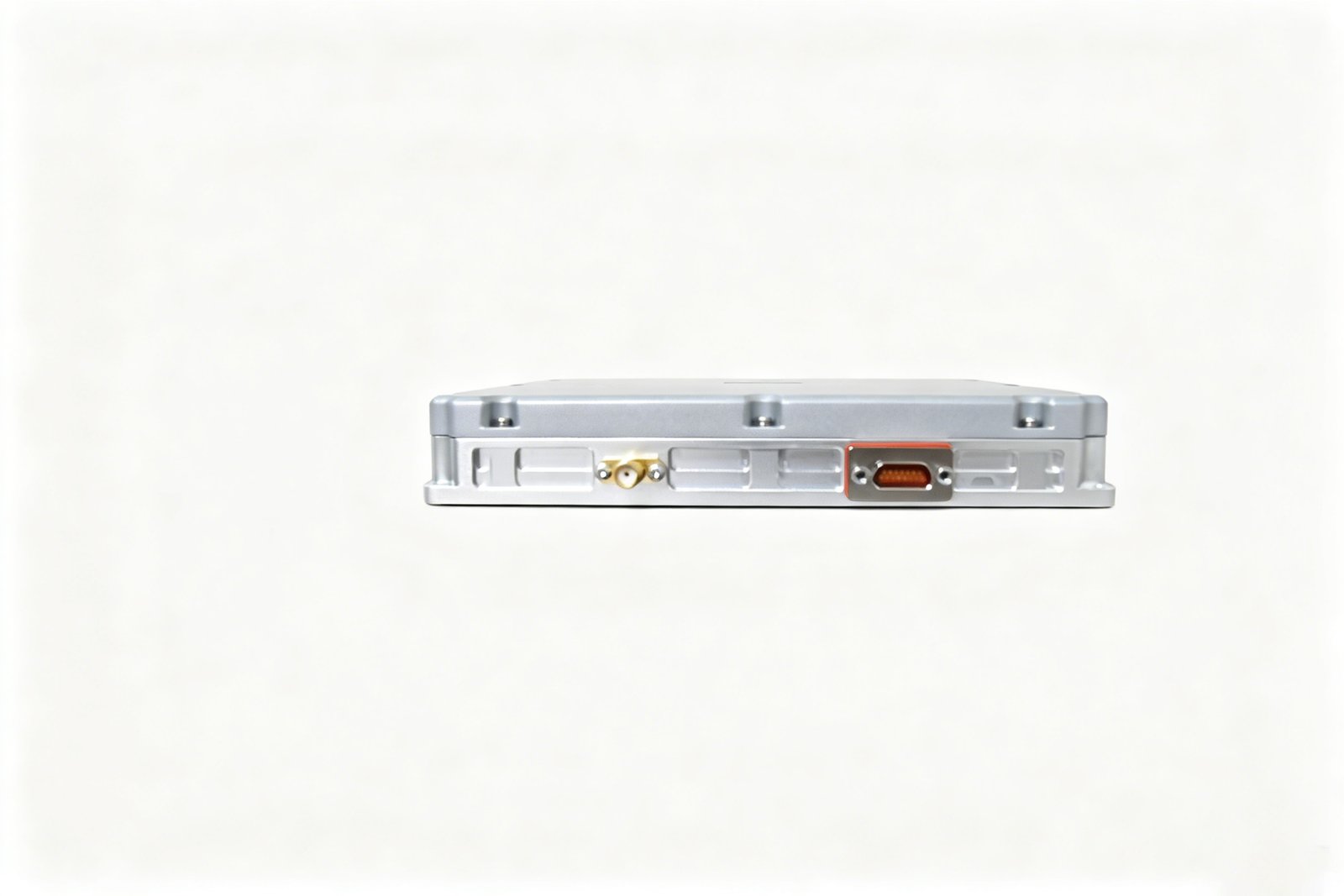

Connectivity: J30J-9ZK+SMA-K

Brand Name: OEM/ODM

Model Number: YDAJ-P8160D

Place of Origin: Guangdong, China

Number of Array Elements: Dual 8-element

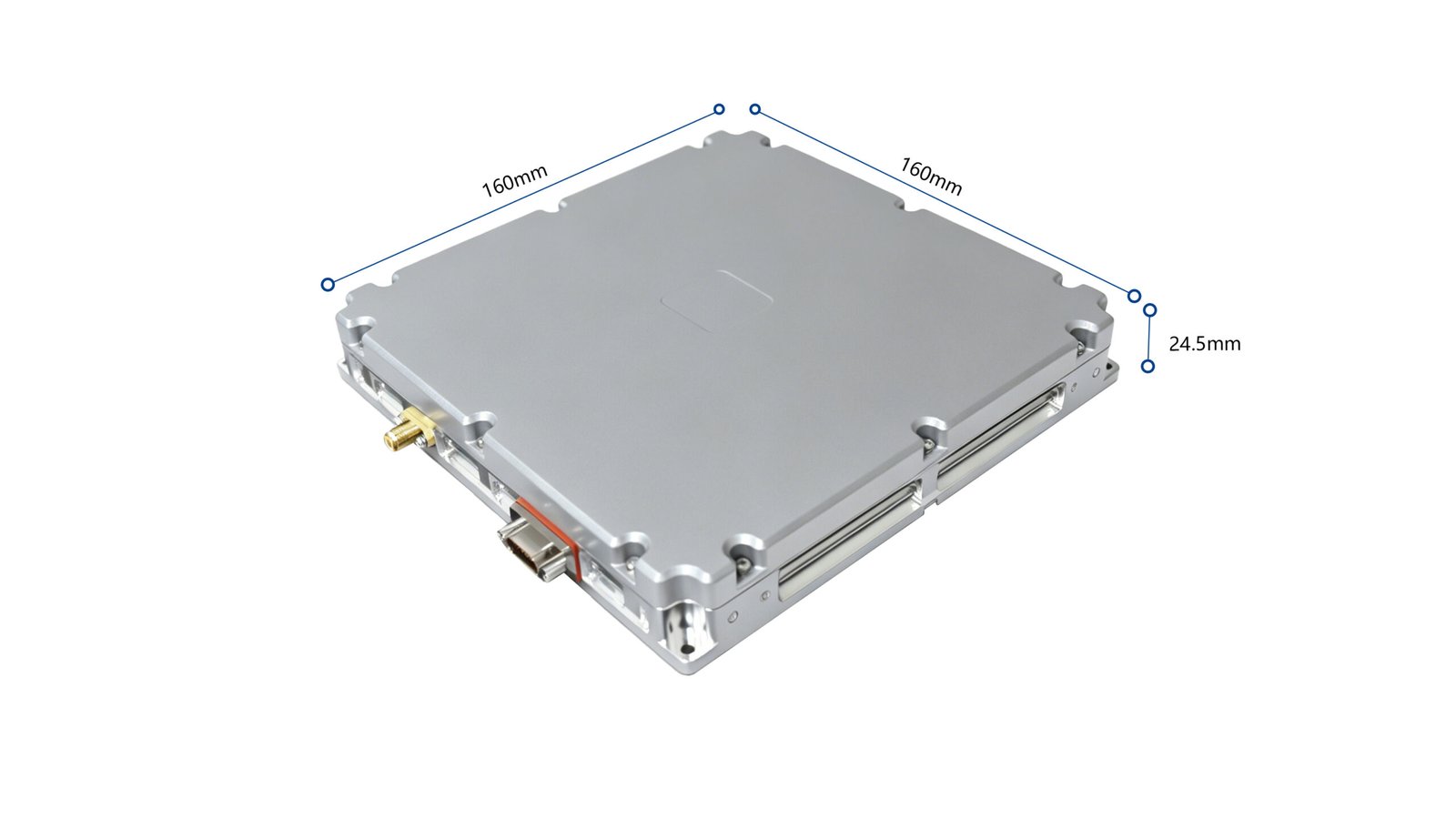

Size: 160mmx160mmx24.5mm (+0.5mm)

Weight: ≤1000g

Power consumption: ≤ 20W (Typical ,continuous mode) , ≤ 38W ( AJ active)

Frequencies: B1/L1/E1+L5

Anti-single Broadband Capability: Interference-to-signal ratio ≥ 115dB@-130dBm

Anti-three Broadband Capability: Interference-to-signal ratio ≥ 100dB@-130dBm

Supply voltage: DC24V~36V

Temperature range: -40°C~+70°C

Anti-seven Broadband Capability: Interference-to-signal ratio ≥ 85dB@-130dBm

Packaging and delivery

Selling Units: Single item

Single package size: 20X10X10 cm

Single gross weight:1.000 kg
