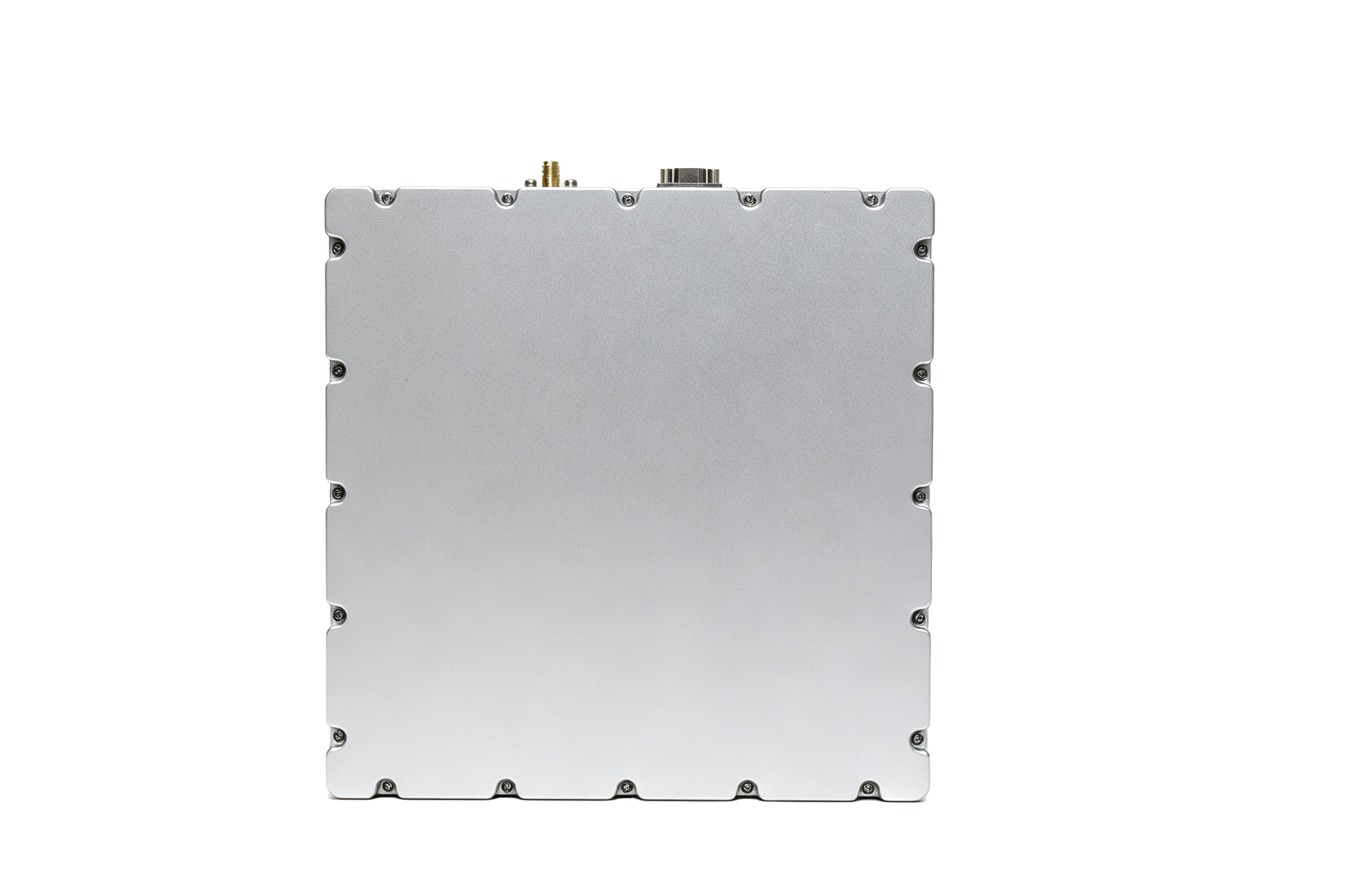

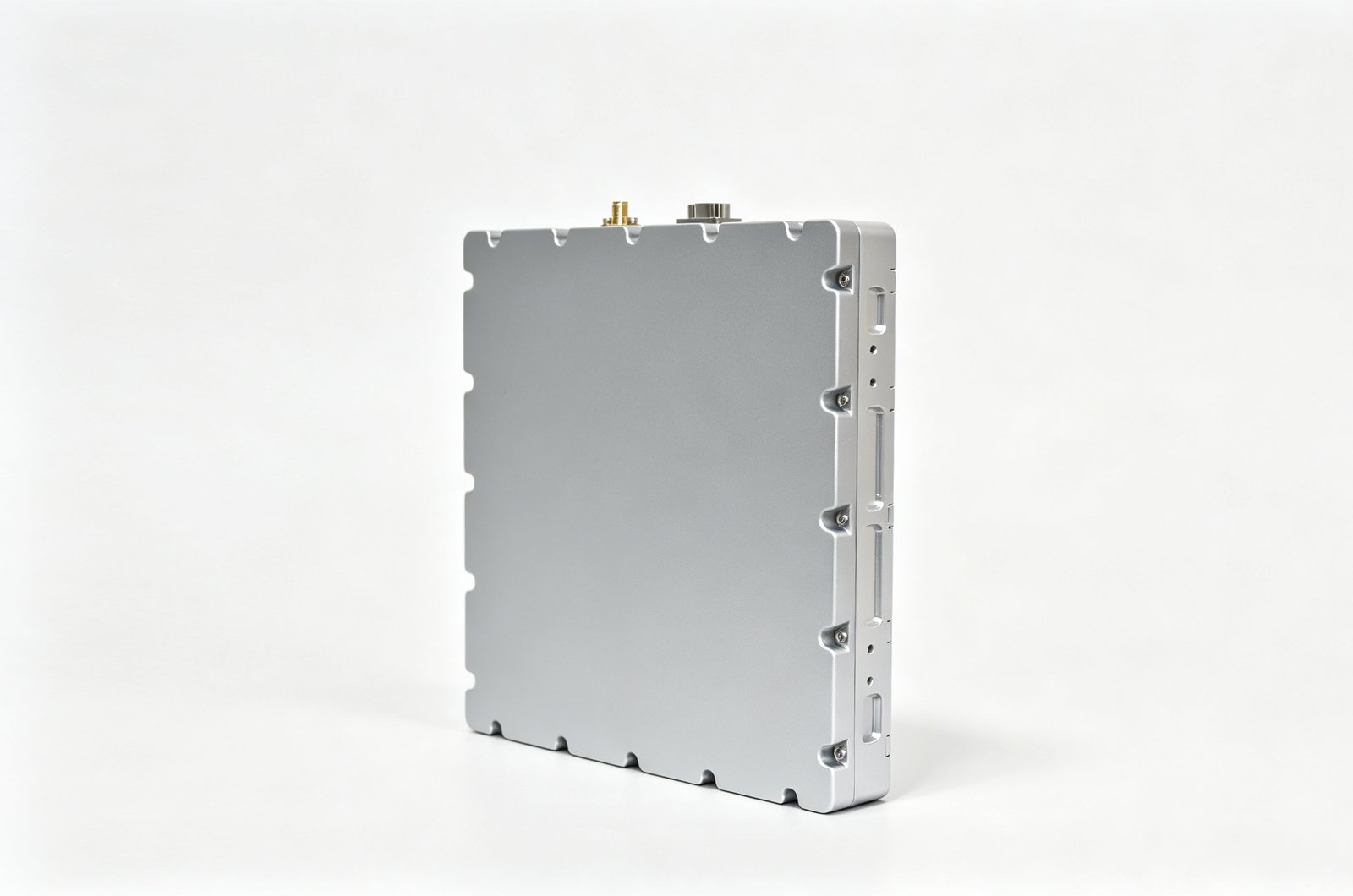

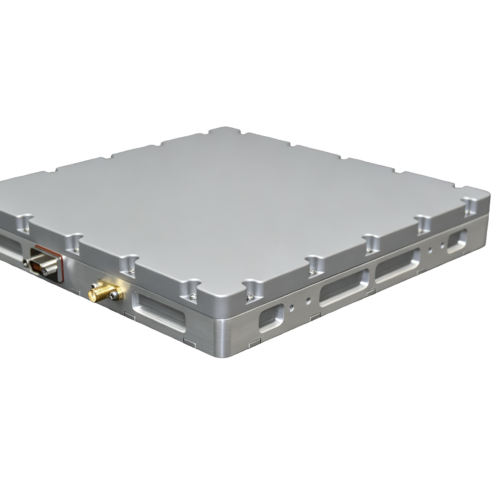

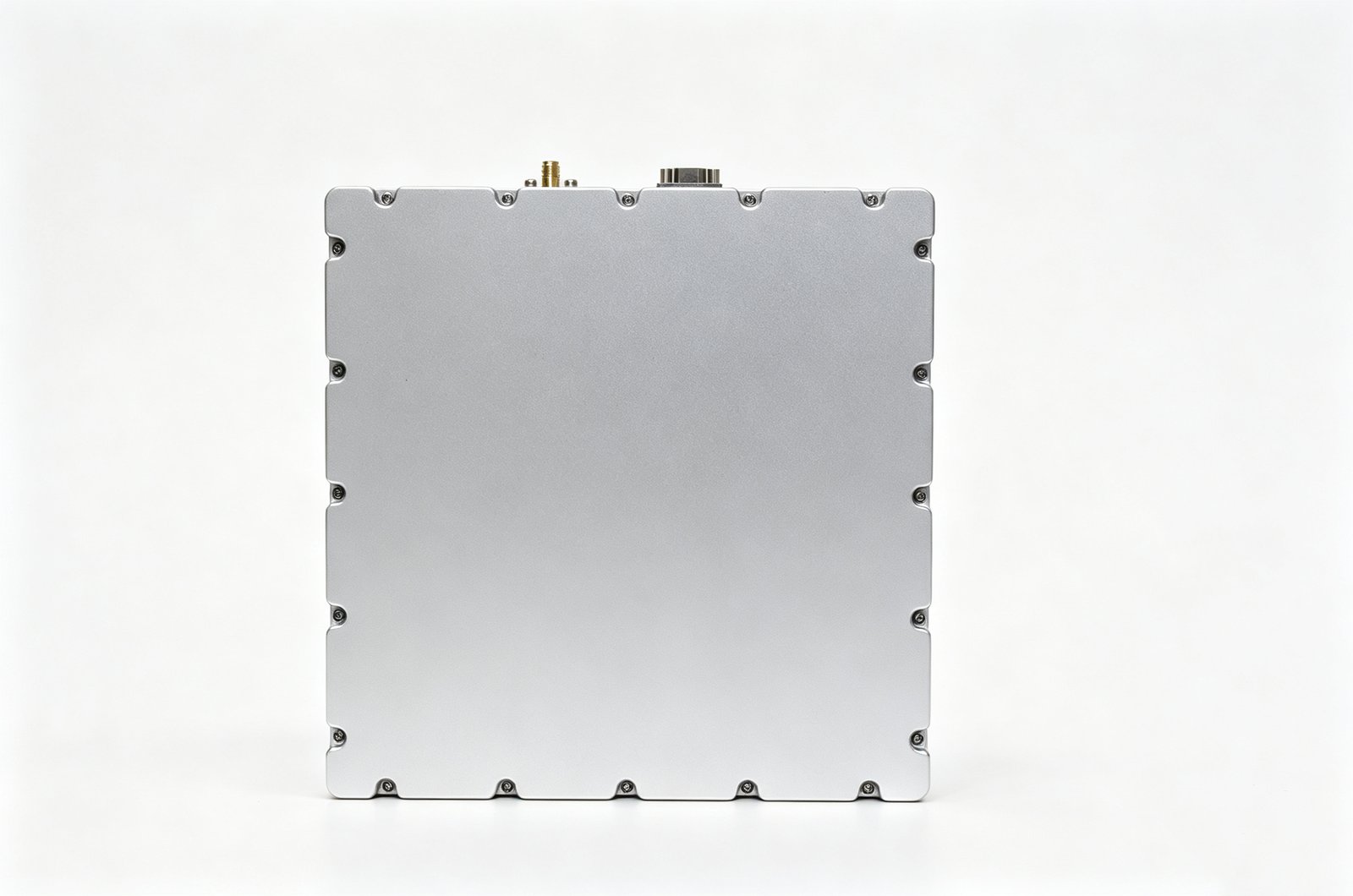

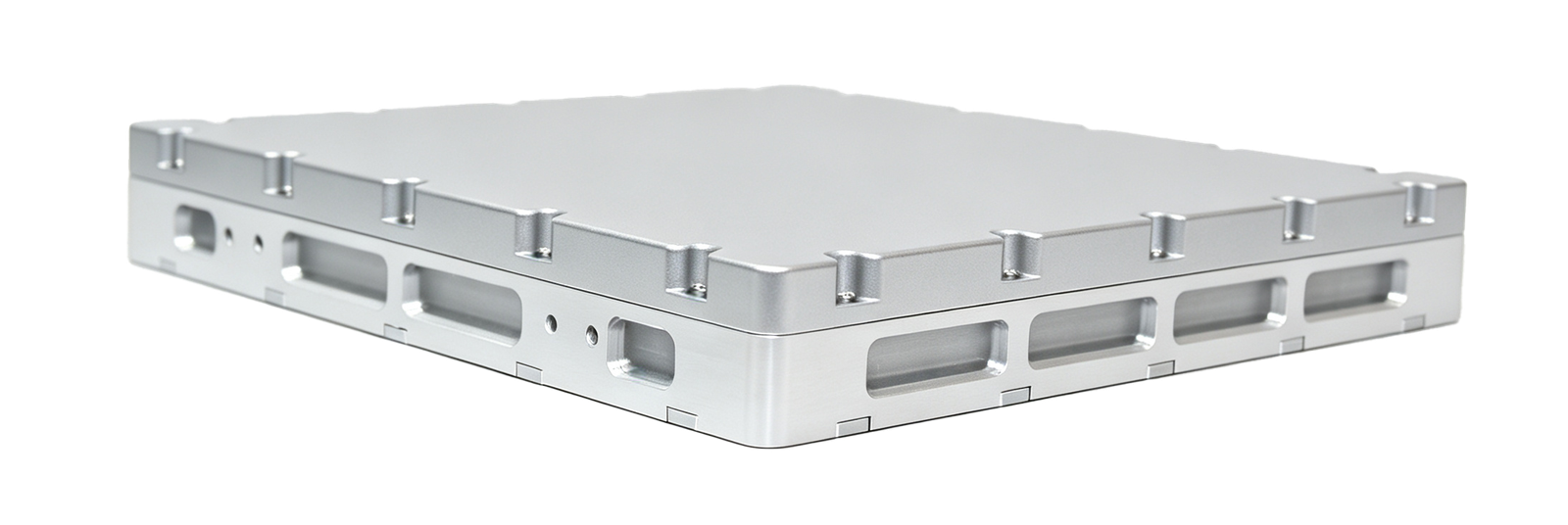

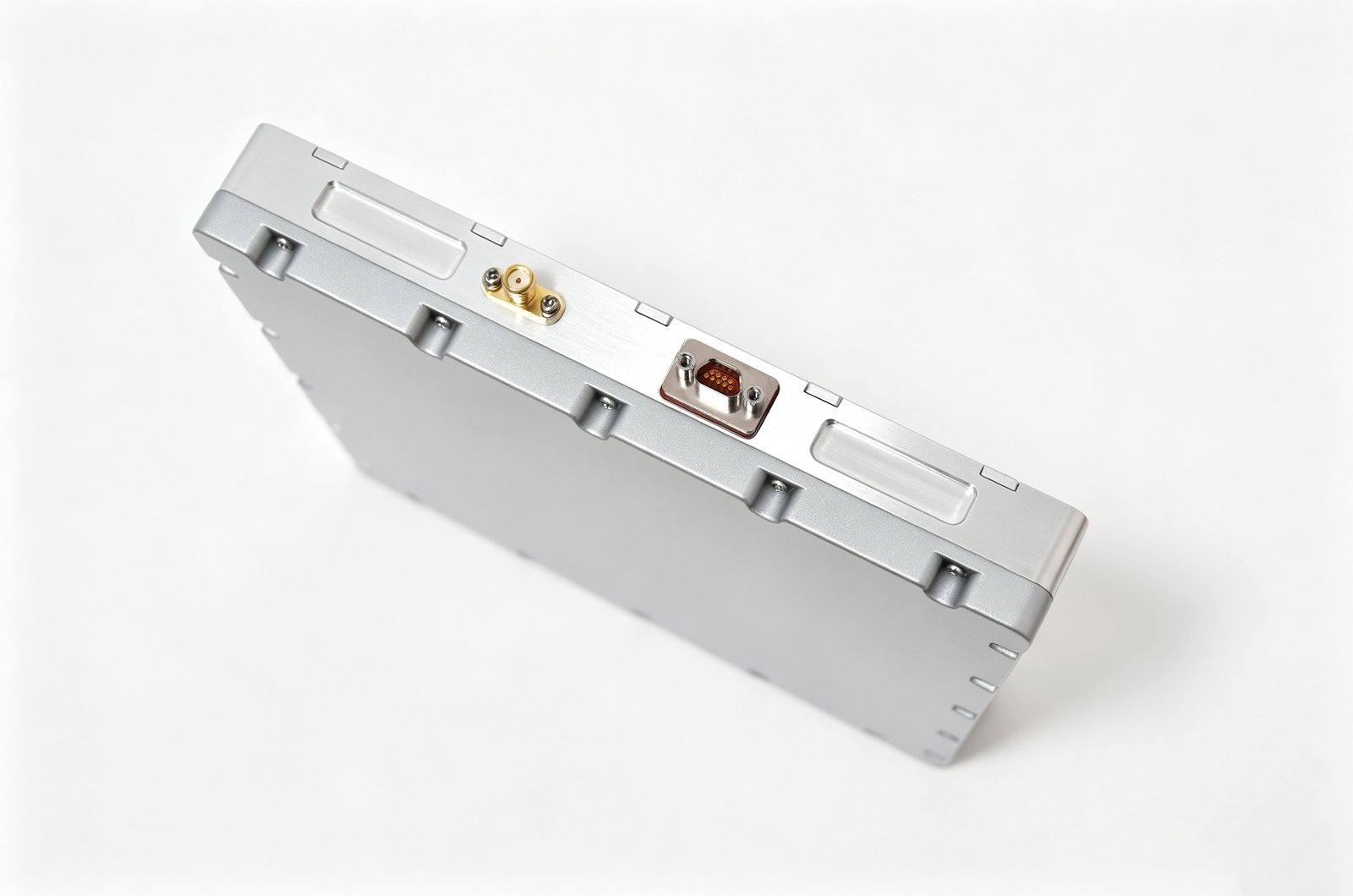

YDAJ-S8180 Anti-Jamming Anti-Spoofing GNSS Antenna Multi-Band High Precision Positioning BDS GPS Galileo GLONASS 180x180x25.5mm (+0.5mm)

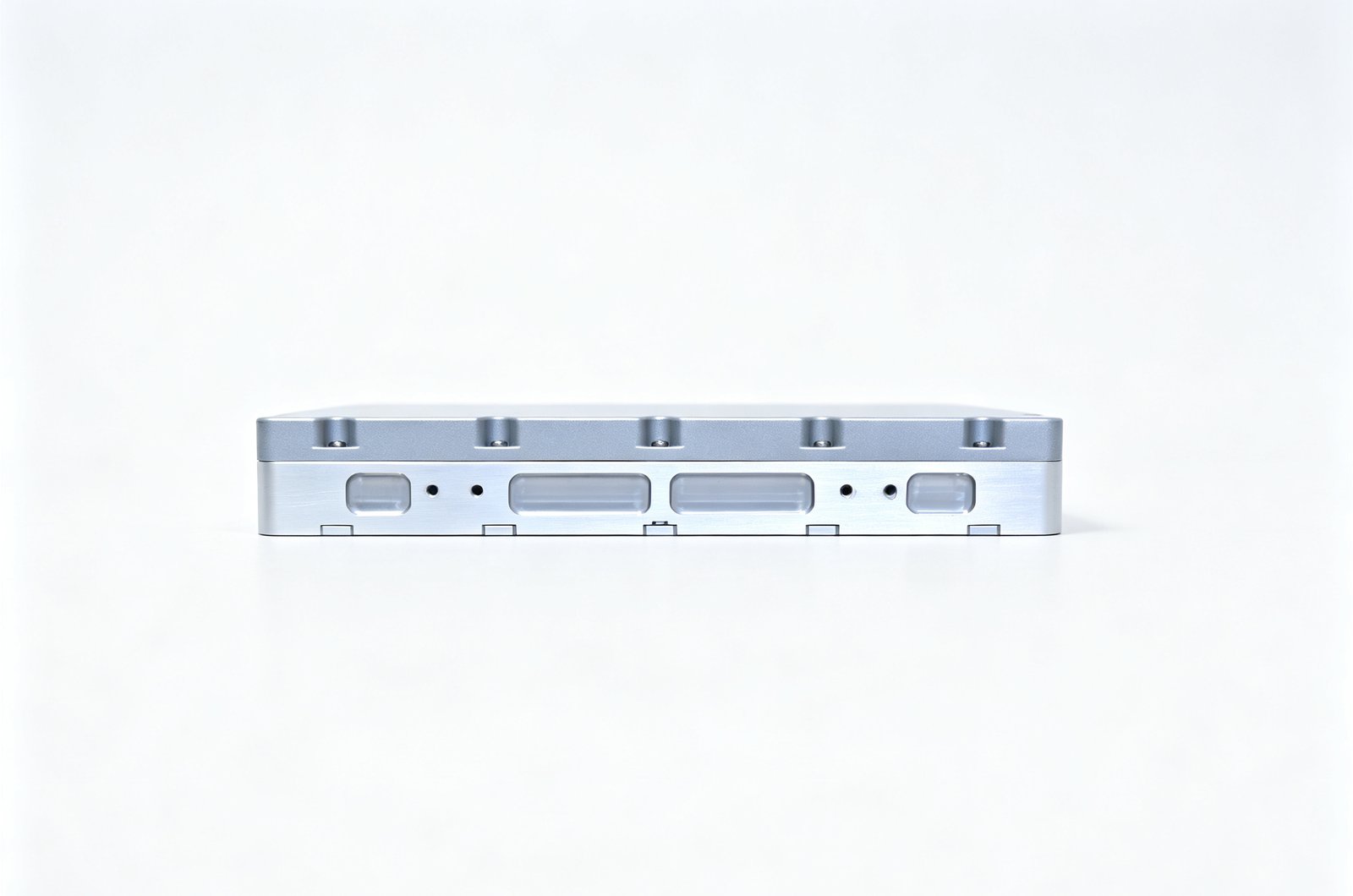

YDAJ-S8180 Anti-Jamming Anti-Spoofing GNSS Antenna Multi-Band High Precision Positioning BDS GPS Galileo GLONASS 180x180x25.5mm (+0.5mm) - Image 3

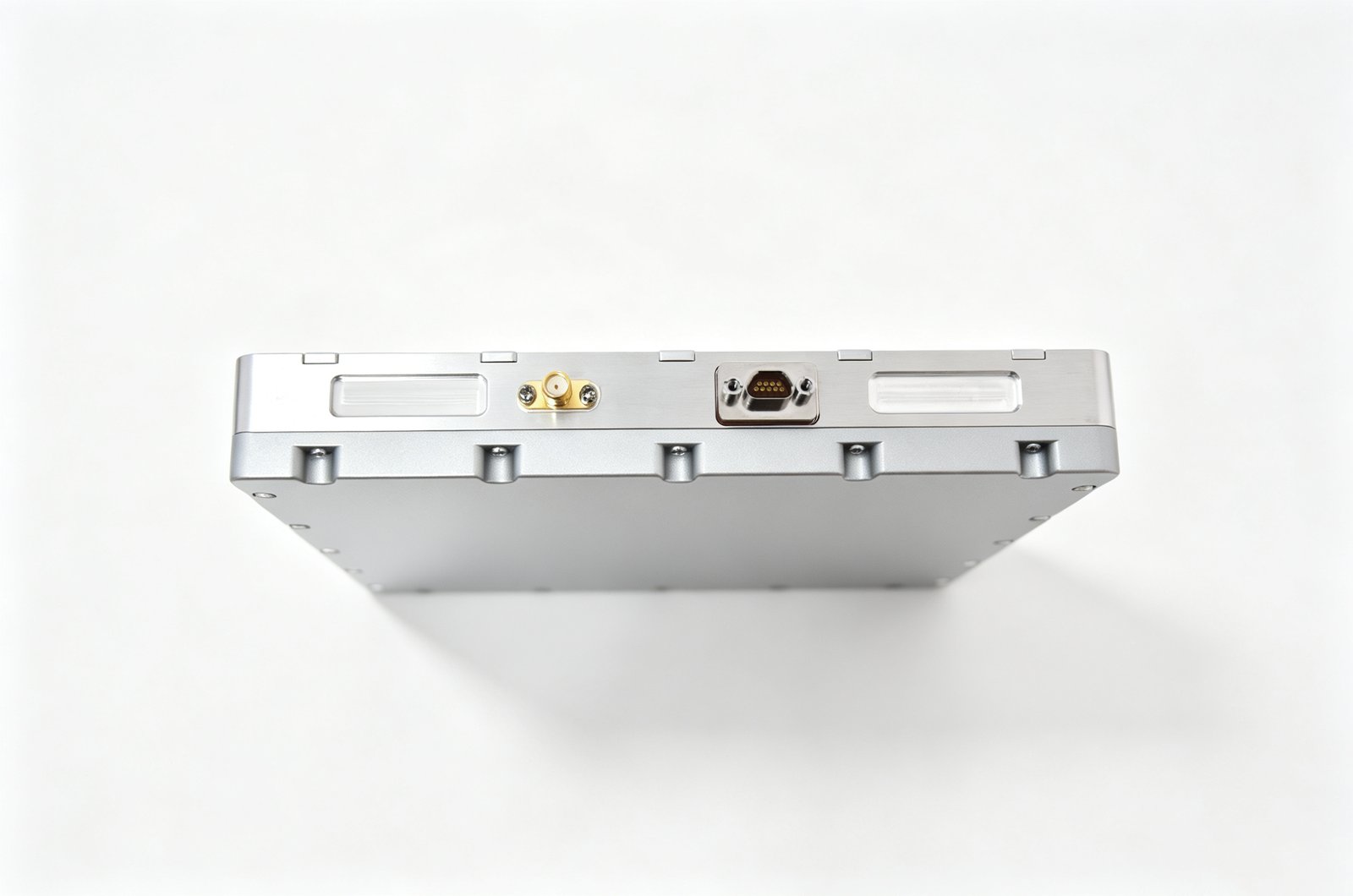

YDAJ-S8180 Anti-Jamming Anti-Spoofing GNSS Antenna Multi-Band High Precision Positioning BDS GPS Galileo GLONASS 180x180x25.5mm (+0.5mm) - Image 4

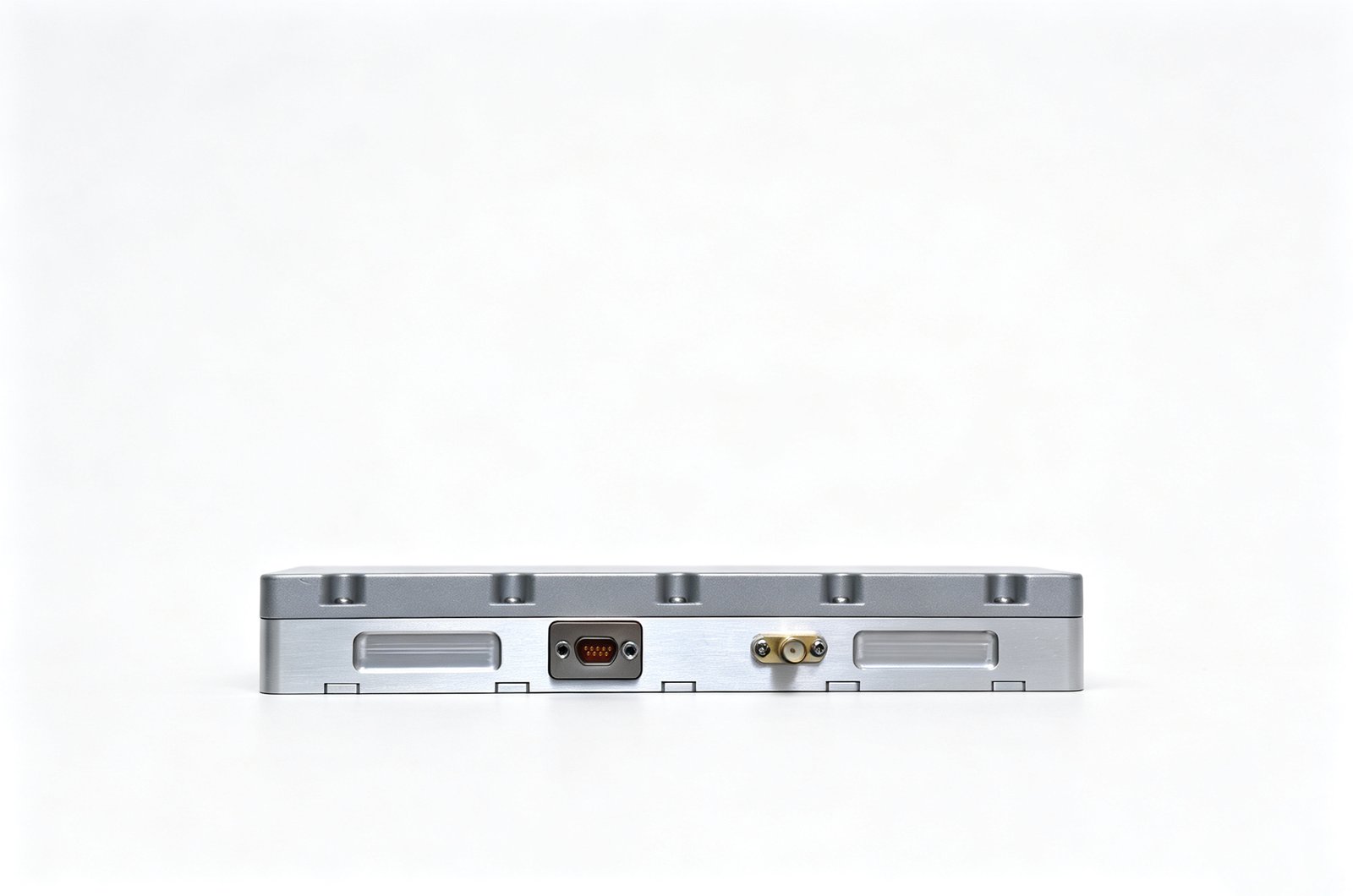

YDAJ-S8180 Anti-Jamming Anti-Spoofing GNSS Antenna Multi-Band High Precision Positioning BDS GPS Galileo GLONASS 180x180x25.5mm (+0.5mm) - Image 5

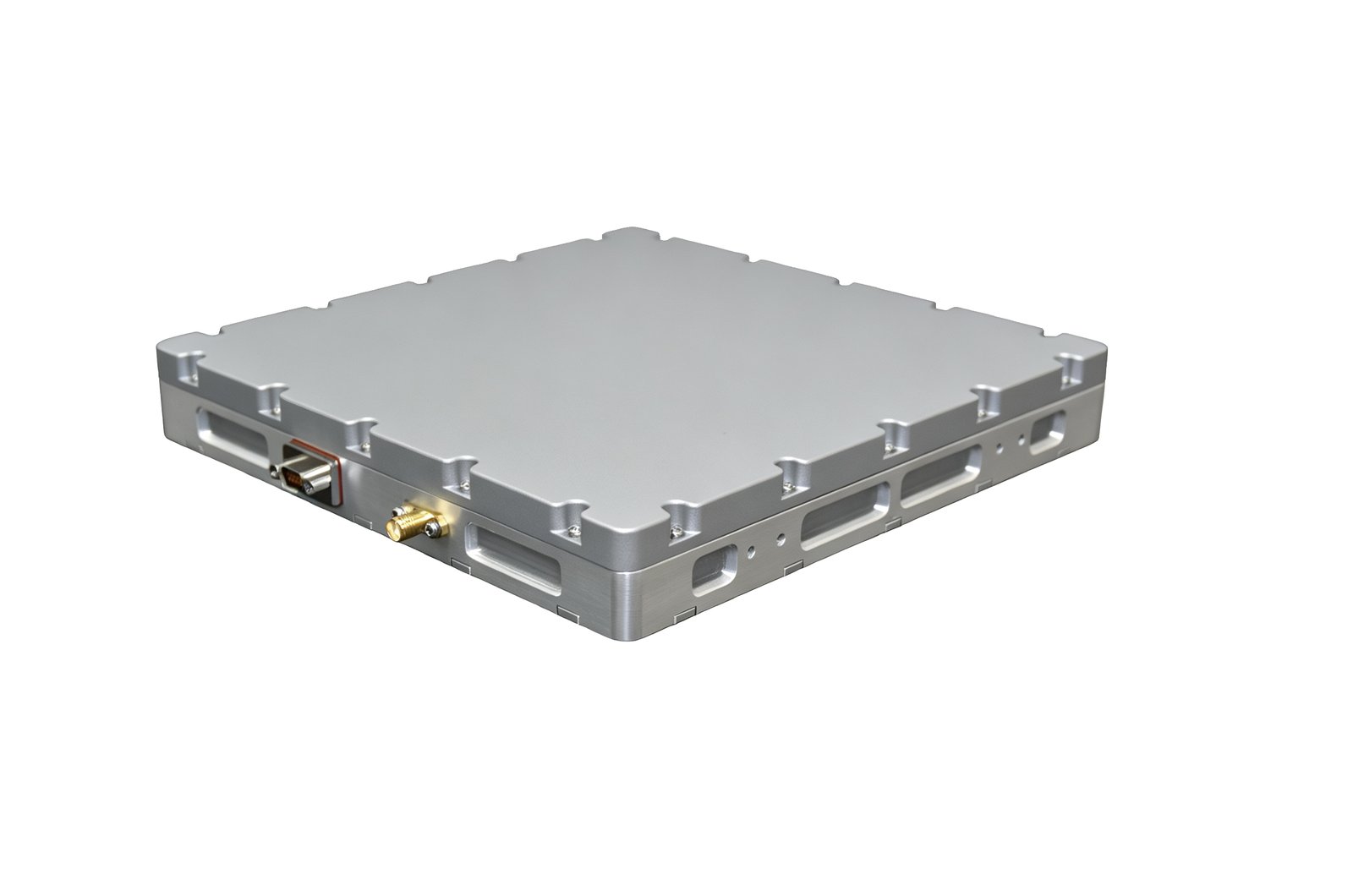

YDAJ-S8180 Anti-Jamming Anti-Spoofing GNSS Antenna Multi-Band High Precision Positioning BDS GPS Galileo GLONASS 180x180x25.5mm (+0.5mm) - Image 6

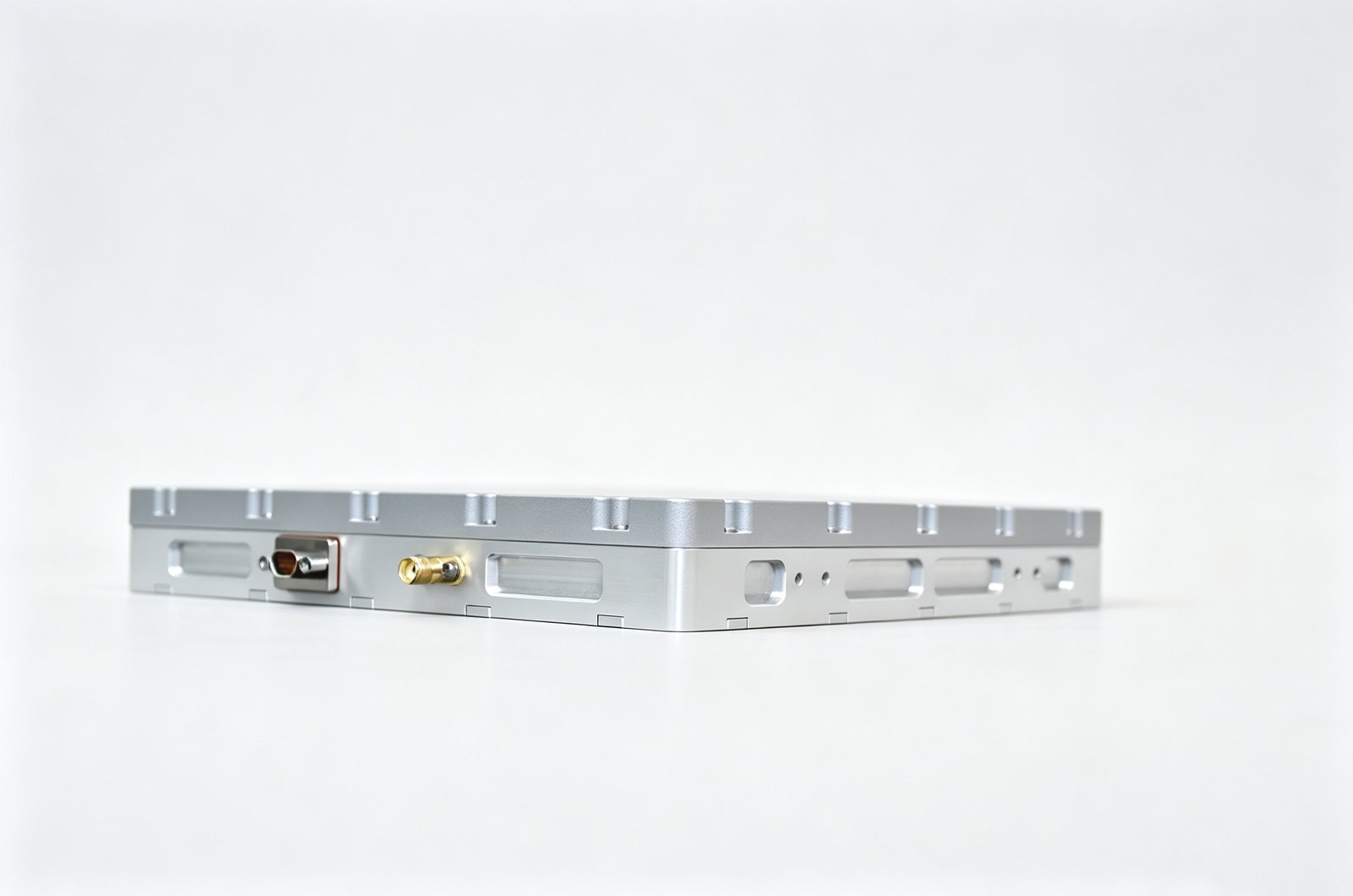

YDAJ-S8180 Anti-Jamming Anti-Spoofing GNSS Antenna Multi-Band High Precision Positioning BDS GPS Galileo GLONASS 180x180x25.5mm (+0.5mm) - Image 7

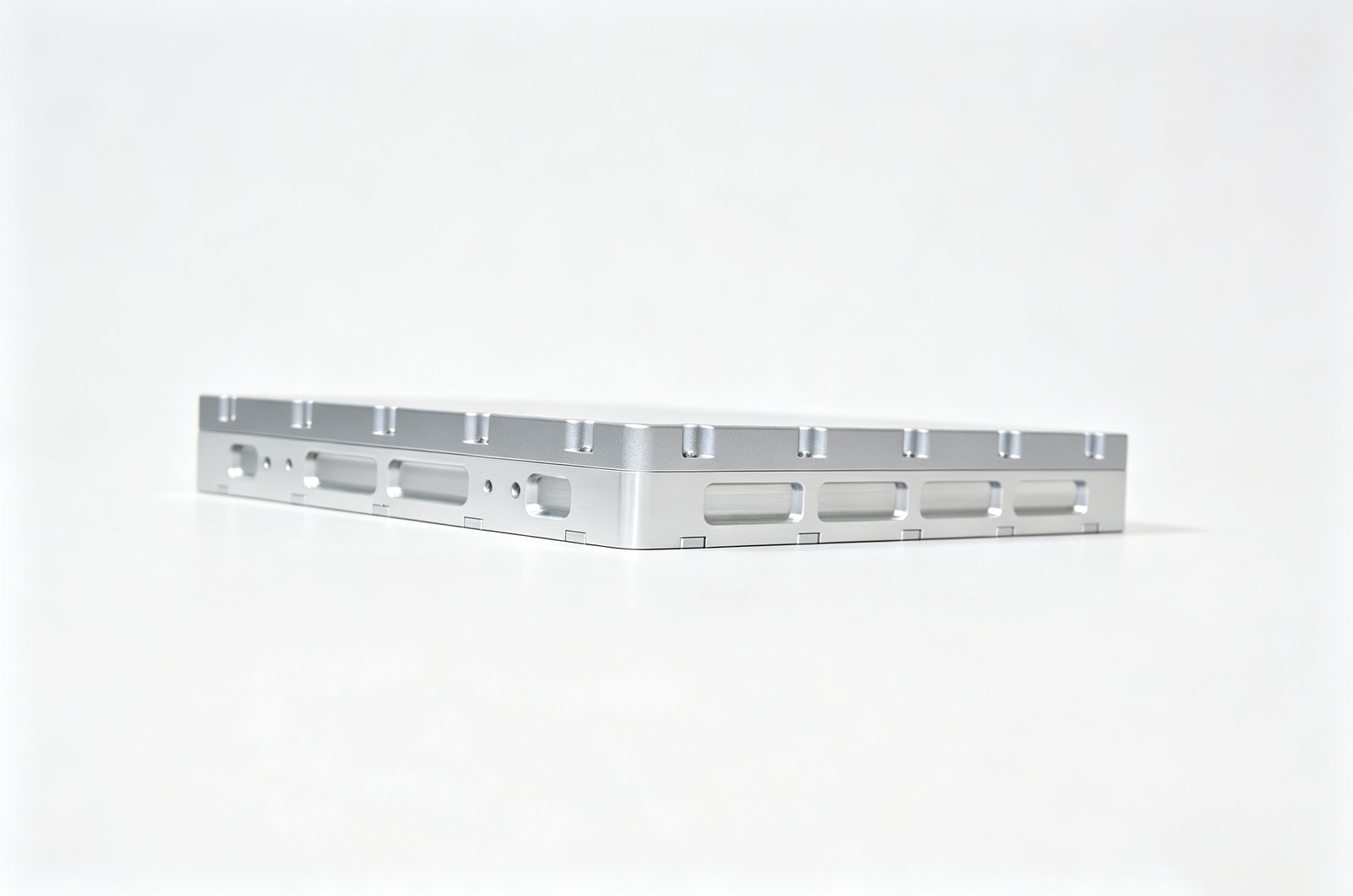

YDAJ-S8180 Anti-Jamming Anti-Spoofing GNSS Antenna Multi-Band High Precision Positioning BDS GPS Galileo GLONASS 180x180x25.5mm (+0.5mm) - Image 8

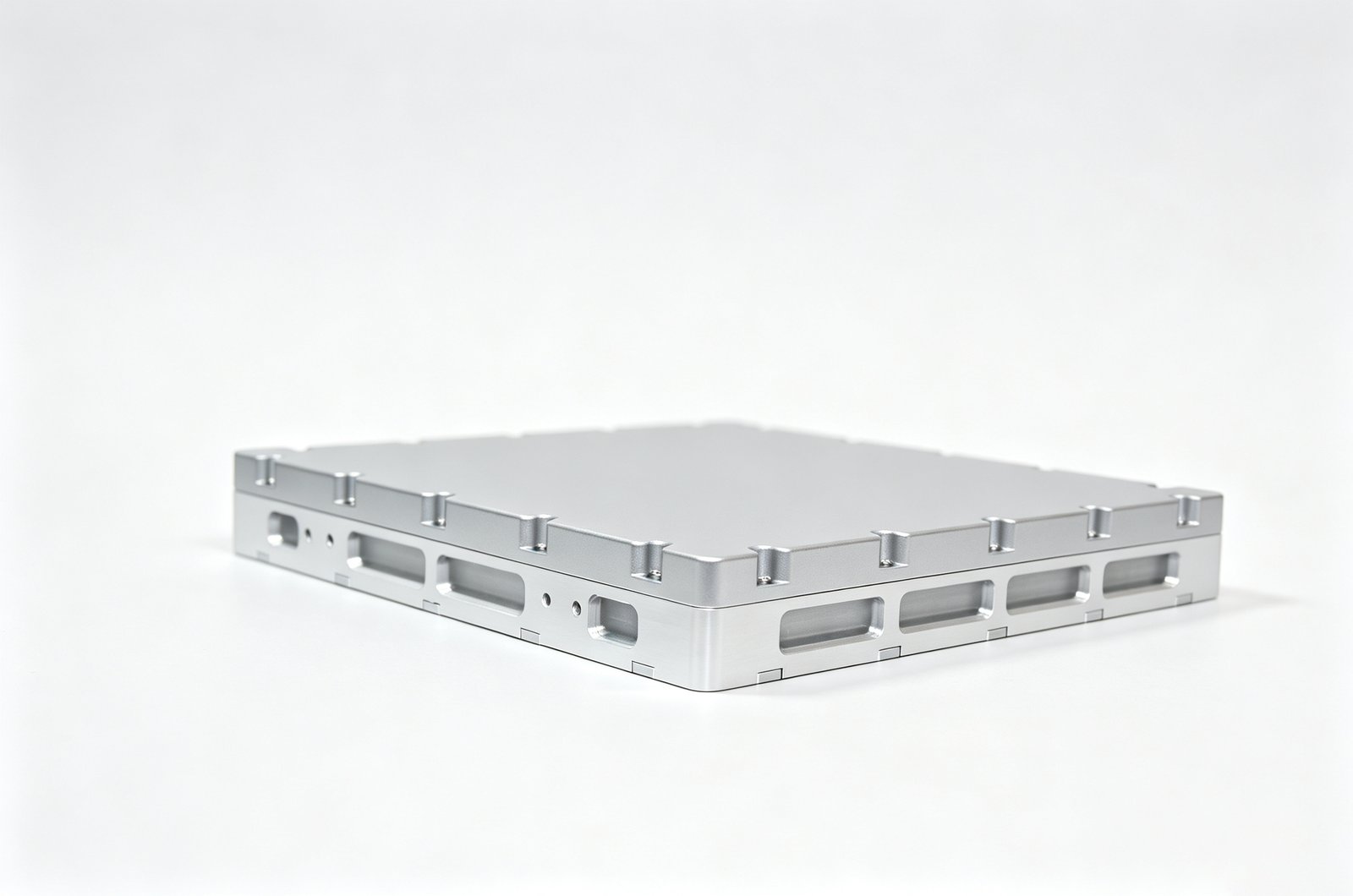

YDAJ-S8180 Anti-Jamming Anti-Spoofing GNSS Antenna Multi-Band High Precision Positioning BDS GPS Galileo GLONASS 180x180x25.5mm (+0.5mm) - Image 9

YDAJ-S8180 Anti-Jamming Anti-Spoofing GNSS Antenna Multi-Band High Precision Positioning BDS GPS Galileo GLONASS 180x180x25.5mm (+0.5mm) - Image 10

YDAJ-S8180 Anti-Jamming Anti-Spoofing GNSS Antenna Multi-Band High Precision Positioning BDS GPS Galileo GLONASS 180x180x25.5mm (+0.5mm) - Image 11

YDAJ-S8180 Anti-Jamming Anti-Spoofing GNSS Antenna Multi-Band High Precision Positioning BDS GPS Galileo GLONASS 180x180x25.5mm (+0.5mm) - Image 12

YDAJ-S8180 Anti-Jamming Anti-Spoofing GNSS Antenna Multi-Band High Precision Positioning BDS GPS Galileo GLONASS 180x180x25.5mm (+0.5mm)

Name: Magnetic RTK GNSS GPS Mushroom Type Antenna 5.5dBi
Price: 4165.00 USD
Availability: InStock

Supported Navigation Bands: BDS B1I/B1C, GPS L1, Galileo E1

Anti-interference Capability: Mitigates suppression jamming, navigation spoofing, and mixed jamming-spoofing compound interference

Interference Monitoring Function: Real-time output of jamming power, jamming quantity and spoofing source statistics

Integrated Navigation Receiver: Optimized for UAV platforms under severe electromagnetic interference environments

RF Signal Output: Provides purified navigation signals after anti-jamming and anti-spoofing processing

Typical Deployment Scenarios: High-security mission execution, anti-spoofing required applications, strategic-level projects, heavy-lift UAVs, complex operational environments, industrial UAVs, logistics distribution, power grid inspection

product details

Type: GPS/GNSS Antenna

Connectivity: J30J-9ZK+SMA-K

Brand Name: OEM/ODM

Model Number: YDAJ-S8180

Place of Origin: Guangdong, China

Material: ABS

Number of Array Elements: 8

Dimensions: 180x180x25.5mm (+0.5mm)

Weights : 890g

Power consumption: ≤ 10 W (Typical ,continuous mode) , ≤ 17 W ( AJ active)

Frequencies: B1/L1/E1

Anti-single Broadband Capability: Interference-to-signal ratio ≥115dB@-130dBm

Anti-three Broadband Capability: Interference-to-signal ratio ≥105dB@-130dBm

Anti-seven Broadband Capability: Interference-to-signal ratio ≥90dB@-130dBm

Supply voltage: DC12V~36V

Temperature range: -40°C~+70°C

Packaging and delivery

Selling Units: Single item

Single package size: 20X10X10 cm

Single gross weight:1.000 kg
