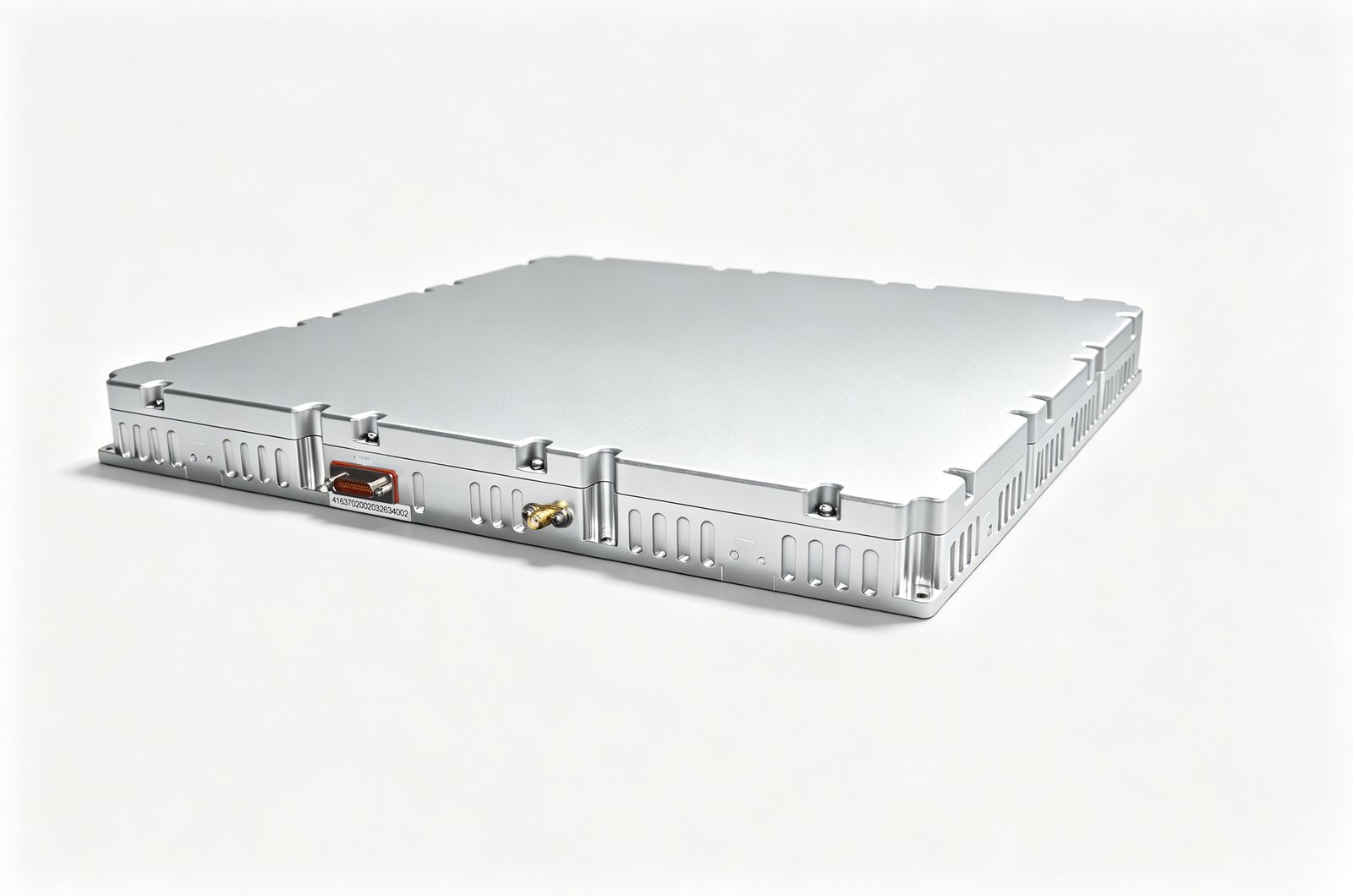

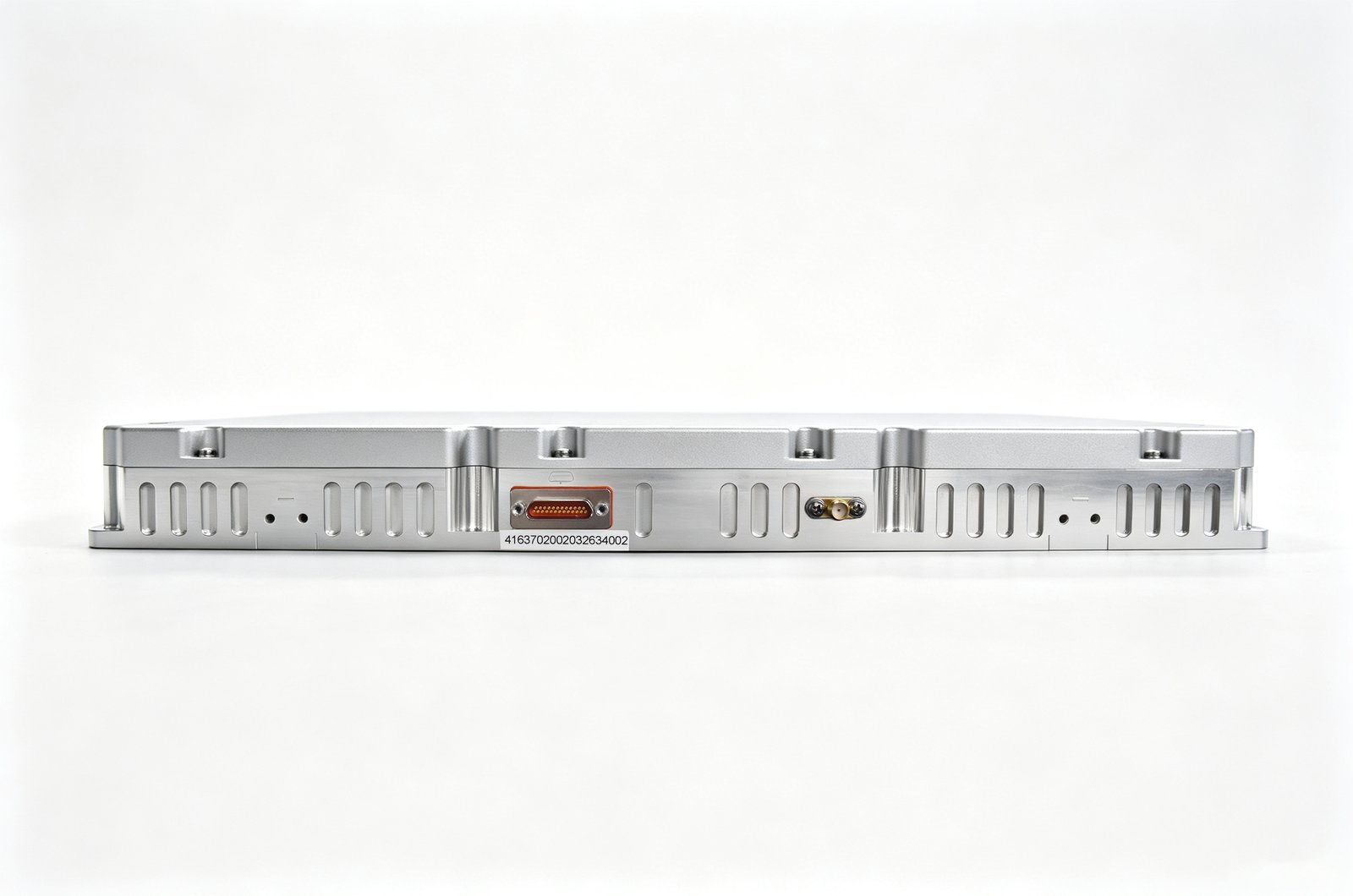

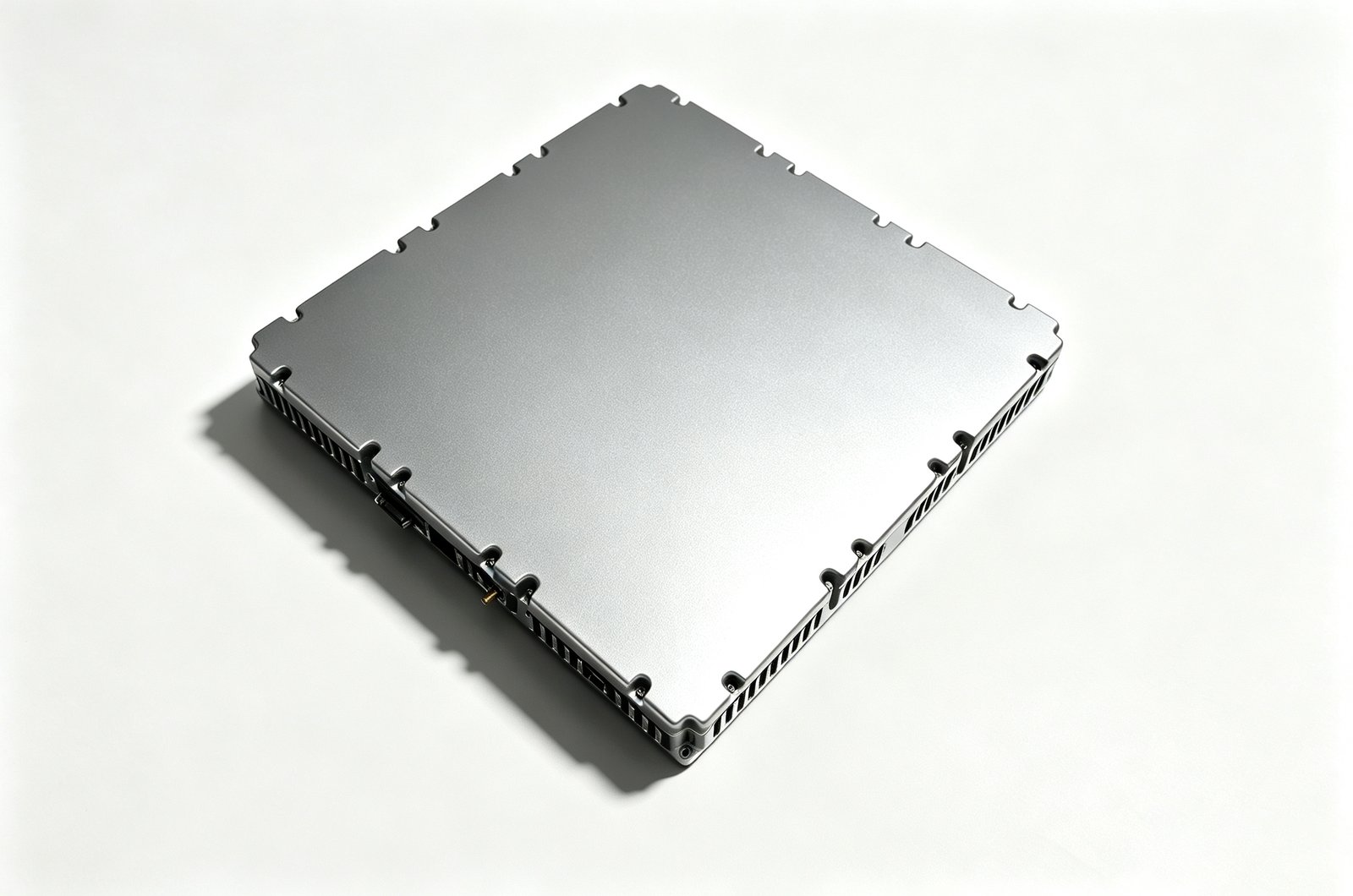

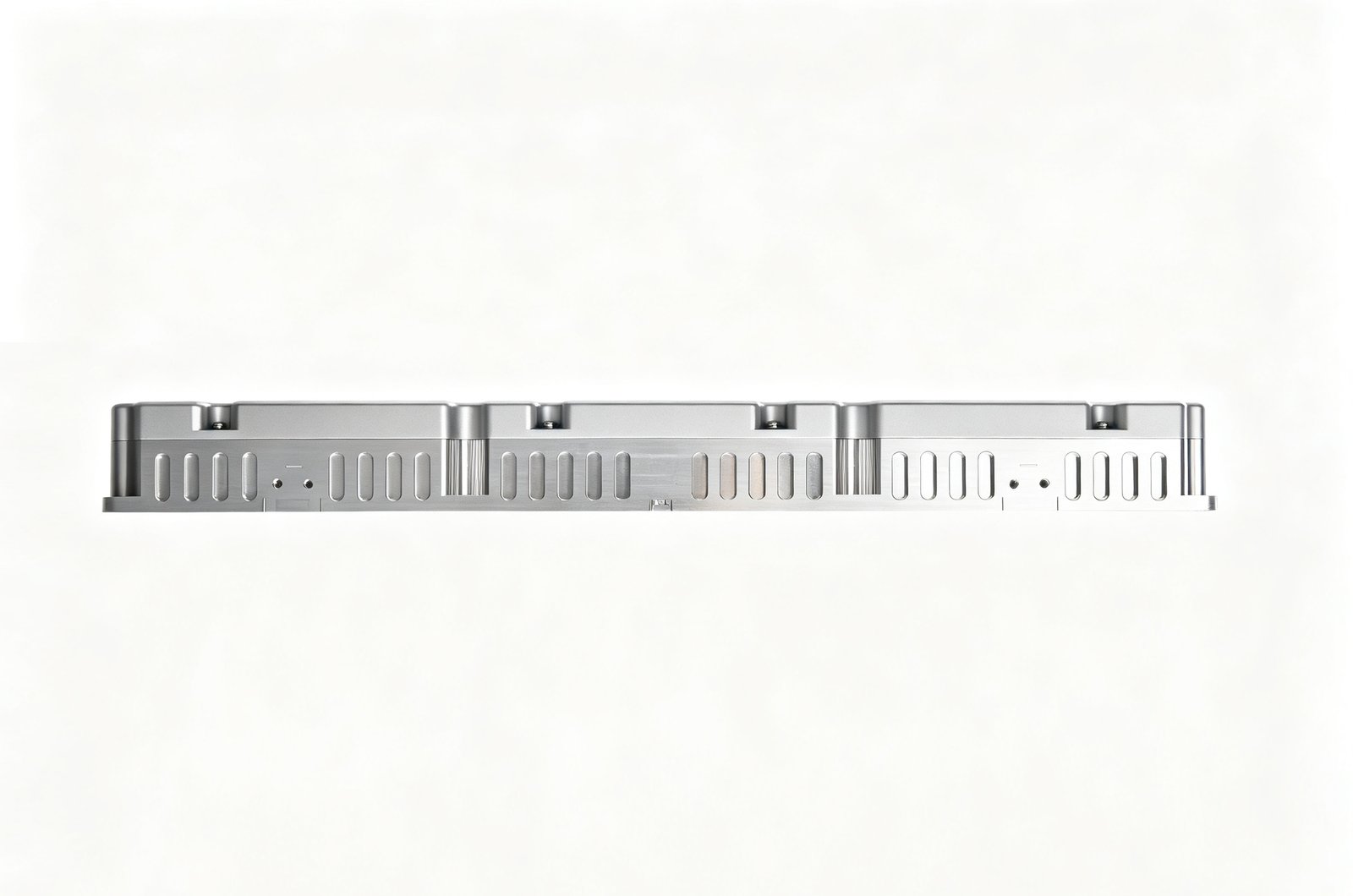

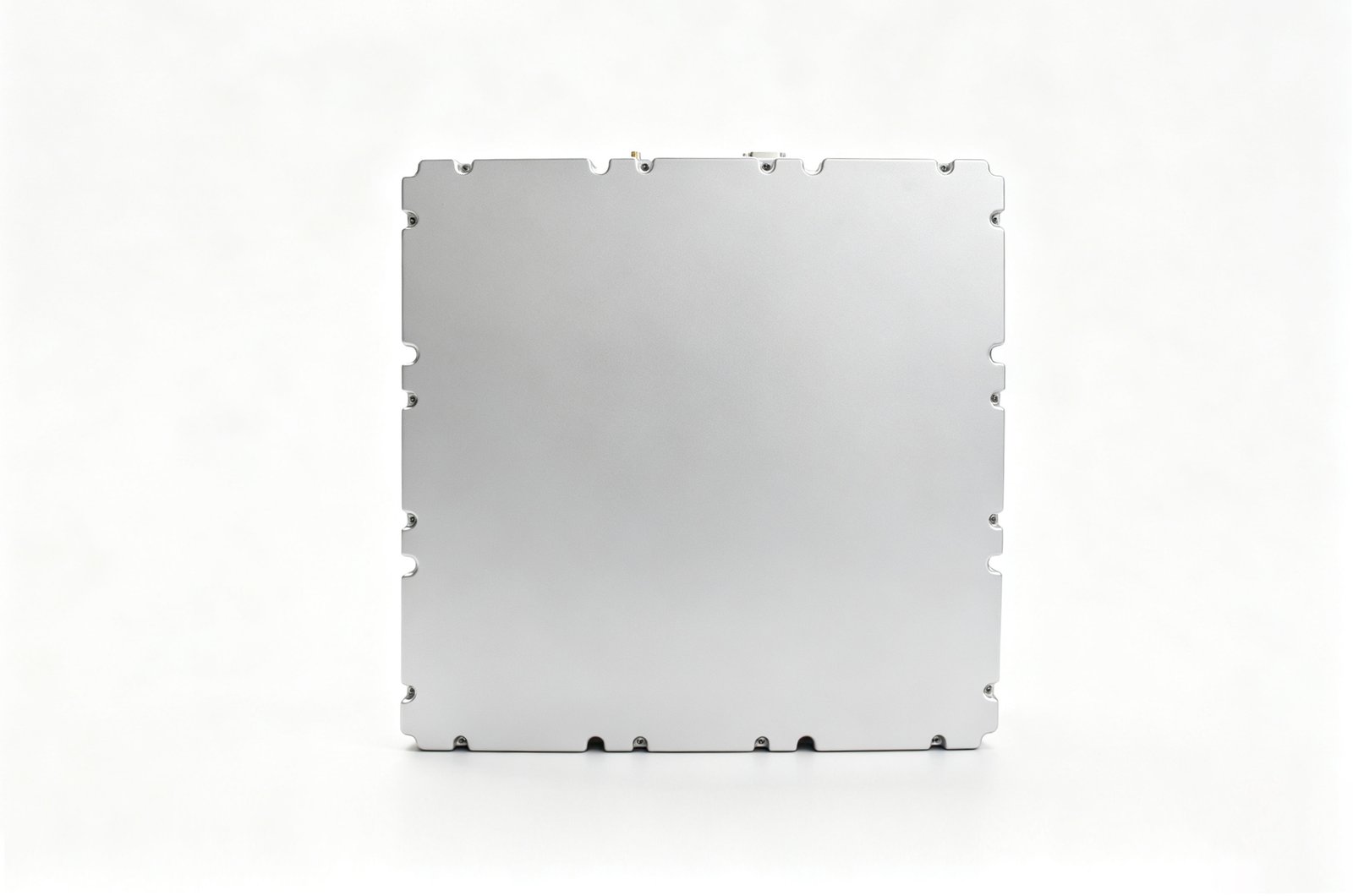

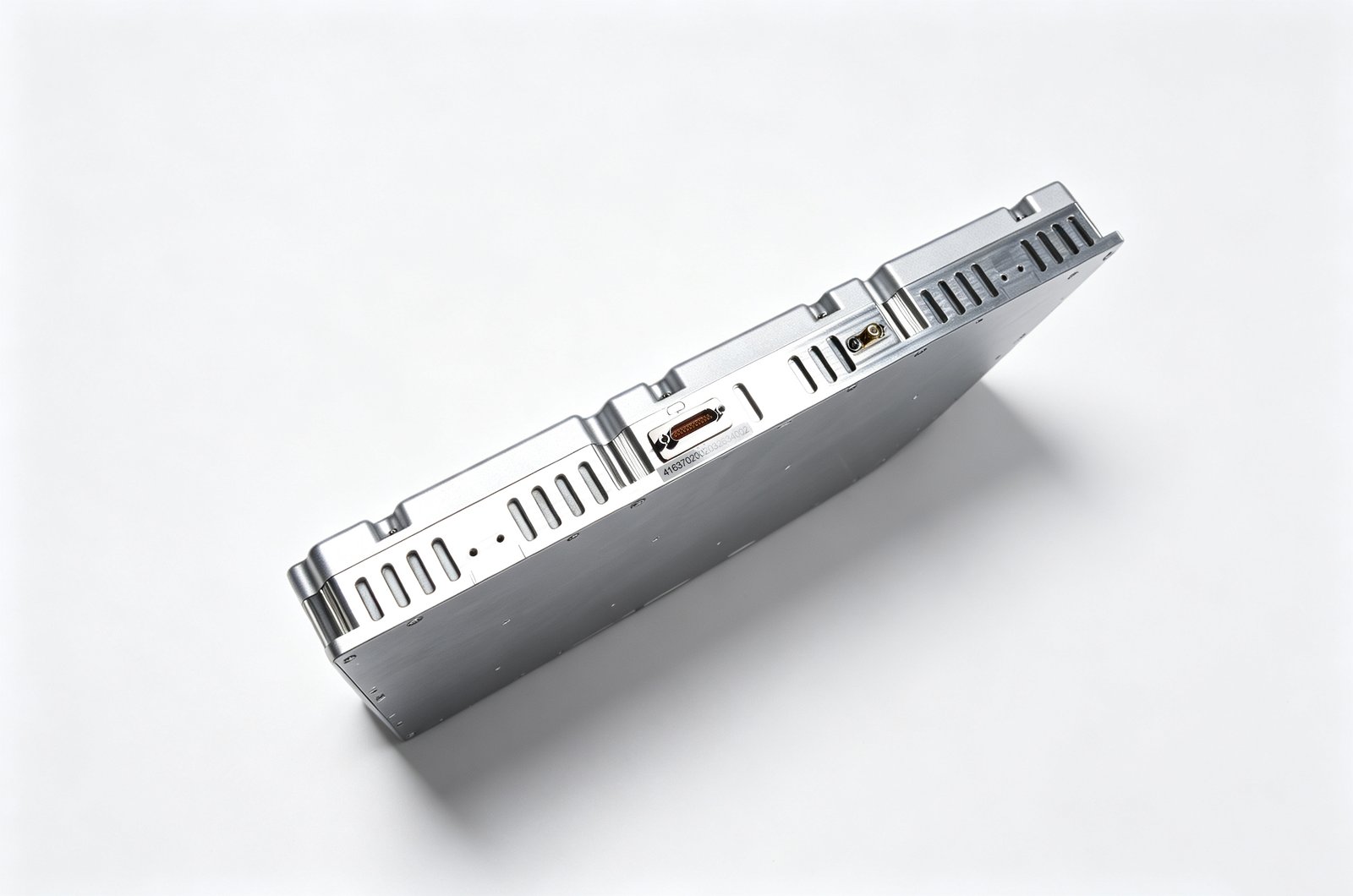

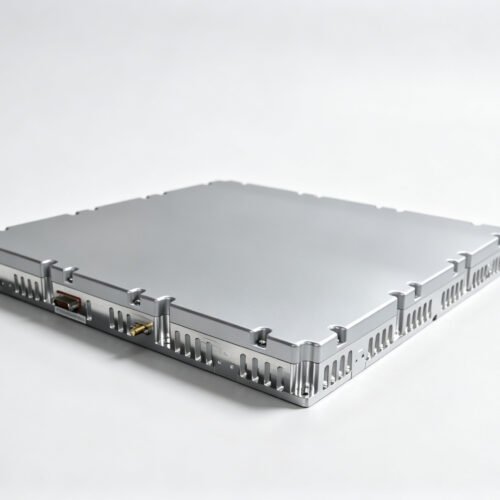

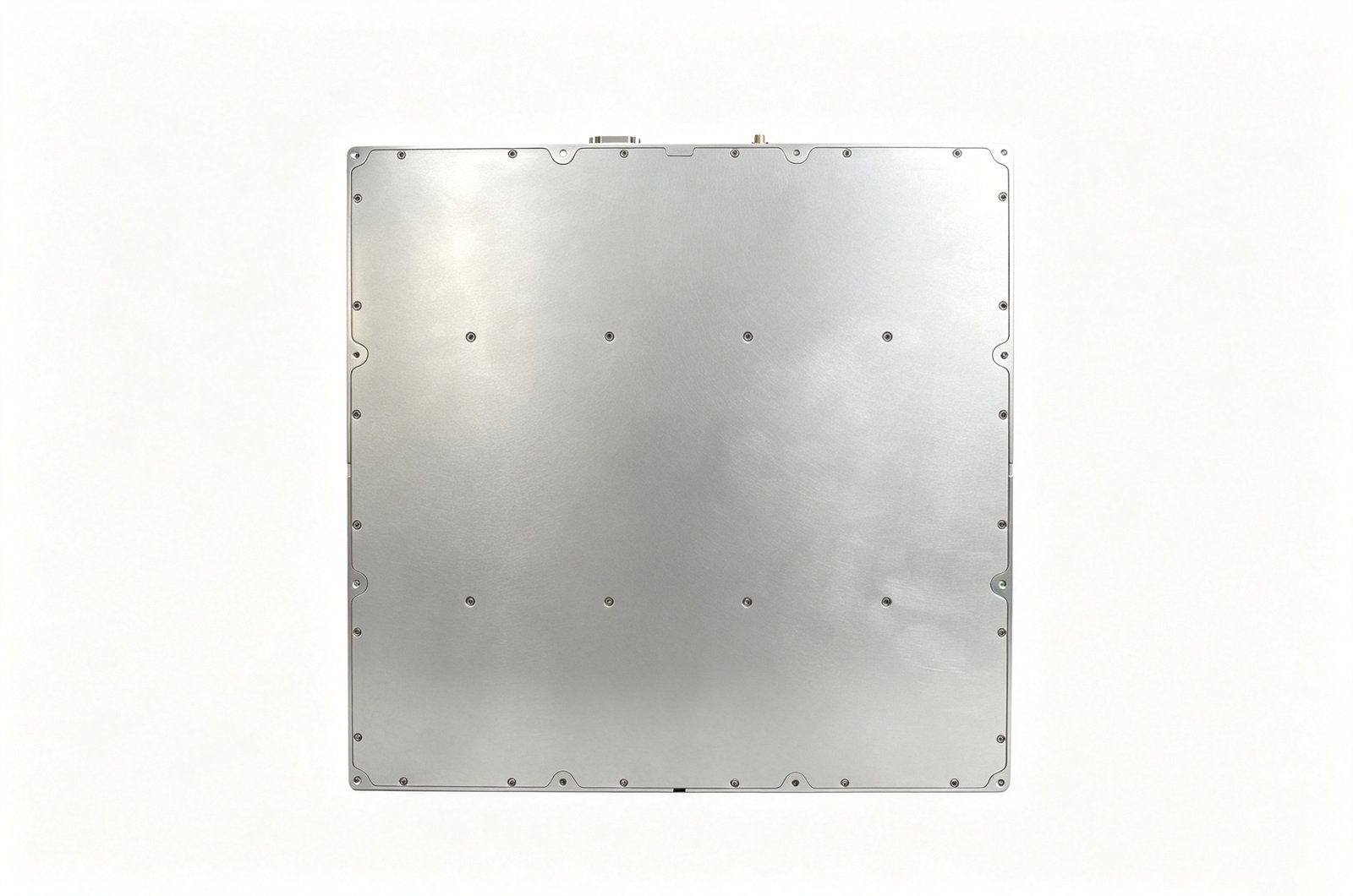

YDAJ-SX370D 370*370MM Dual 16-element Anti-Jamming Anti-Spoofing Positioning Antenna High Precision BDS GPS Galileo GLONASS GNSS Antenna

Name: Magnetic RTK GNSS GPS Mushroom Type Antenna 5.5dBi
Price: 24015.00 USD
Availability: InStock

Received Frequency Bands: L1+L5 frequency bands L1: BDS B1I/B1C, GPS_L1, Galileo E1 L5: BDS B2a, GPS_L5, Galileo E5a

Anti-Jamming Function: Capable of countering suppression jamming, spoofing, and combined suppression-spoofing interference

Interference Environment Awareness: Supports real-time reporting of suppression jamming power, suppression jamming count, and spoofing source count

Built-in Receiver: Integrated navigation receiver optimized for strong interference environments and UAV applications

RF output: The RF port outputs a clean navigation signal after suppression and deception interference.

Both forward-type and generative spoofing can suppress spoofing signal sources from one or more different directions.

product details

Type: GPS/GNSS Antenna

Connectivity: J30J-9ZK+SMA-K

Brand Name: OEM/ODM

Model Number: YDAJ-SX370D

Place of Origin: Guangdong, China

Material: ABS

Number of Array Elements: Dual 16

Dimensions: 370x370x28mm (+0.5mm)

Weight: ≤2800g

Power consumption: ≤ 44W (Typical ,continuous mode) , ≤ 78W ( AJ active)

Frequencies: B1/L1/E1+L5

Anti-single Broadband Capability: Interference-to-signal ratio ≥115dB@-130dBm

Anti-seven Broadband Capability: Interference-to-signal ratio ≥105dB@-130dBm

Anti-fifteen Broadband Capability: Interference-to-signal ratio ≥90dB@-130dBm

Supply voltage: DC24V~36V

Temperature range: -40°C~+70°C

Packaging and delivery

Selling Units: Single item

Single package size: 20X10X10 cm

Single gross weight:1.000 kg
