YDAJ-SX280 Anti-Jamming Anti-Spoofing Multi-Band GNSS Positioning Antenna High Precision BDS GPS Galileo GLONASS 280x280x28mm

Name: Magnetic RTK GNSS GPS Mushroom Type Antenna 5.5dBi
Price: 12672.00 USD
Availability: InStock

Supported Navigation Bands: BDS B1I/B1C, GPS L1, Galileo E1

Anti-interference Capability: Mitigates suppression jamming, navigation spoofing, and mixed jamming-spoofing compound interference

Interference Monitoring Function: Real-time output of jamming power, jamming quantity and spoofing source statistics

Integrated Navigation Receiver: Optimized for UAV platforms under severe electromagnetic interference environments

RF Signal Output: Provides purified navigation signals after anti-jamming and anti-spoofing processing

Typical Deployment Scenarios: High-security mission execution, anti-spoofing required applications, strategic-level projects, industrial UAVs, logistics distribution, power grid inspection

product details

Type: GPS/GNSS Antenna

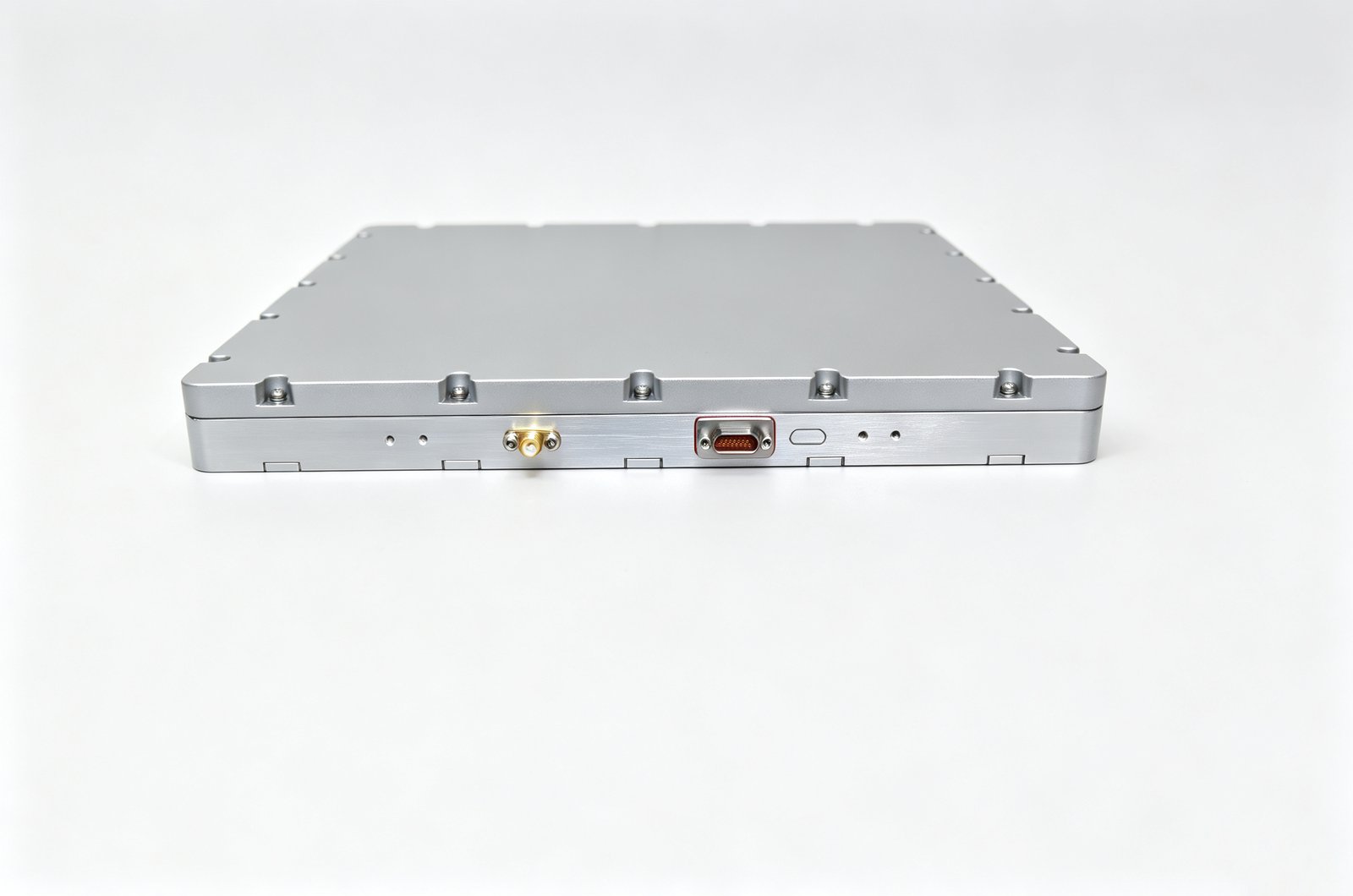

Connectivity: J30J-9ZK+SMA-K

Brand Name: OEM/ODM

Model Number: YDAJ-SX280

Place of Origin: Guangdong, China

Material: ABS

Number of Array Elements: 16

Dimensions: 280x280x28mm (+0.5mm)

Weight: 890g

Power consumption: ≤ 23 W (Typical ,continuous mode) , ≤ 40 W ( AJ active)

Frequencies: B1/L1/E1

Anti-single Broadband Capability: Interference-to-signal ratio ≥115dB@-130dBm

Anti-seven Broadband Capability: Interference-to-signal ratio ≥105dB@-130dBm

Anti-fifteen Broadband Capability: Interference-to-signal ratio ≥90dB@-130dBm

Supply voltage: DC12V~36V

Temperature range: -40°C~+70°C

Packaging and delivery

Selling Units: Single item

Single package size: 20X10X10 cm

Single gross weight:1.000 kg
