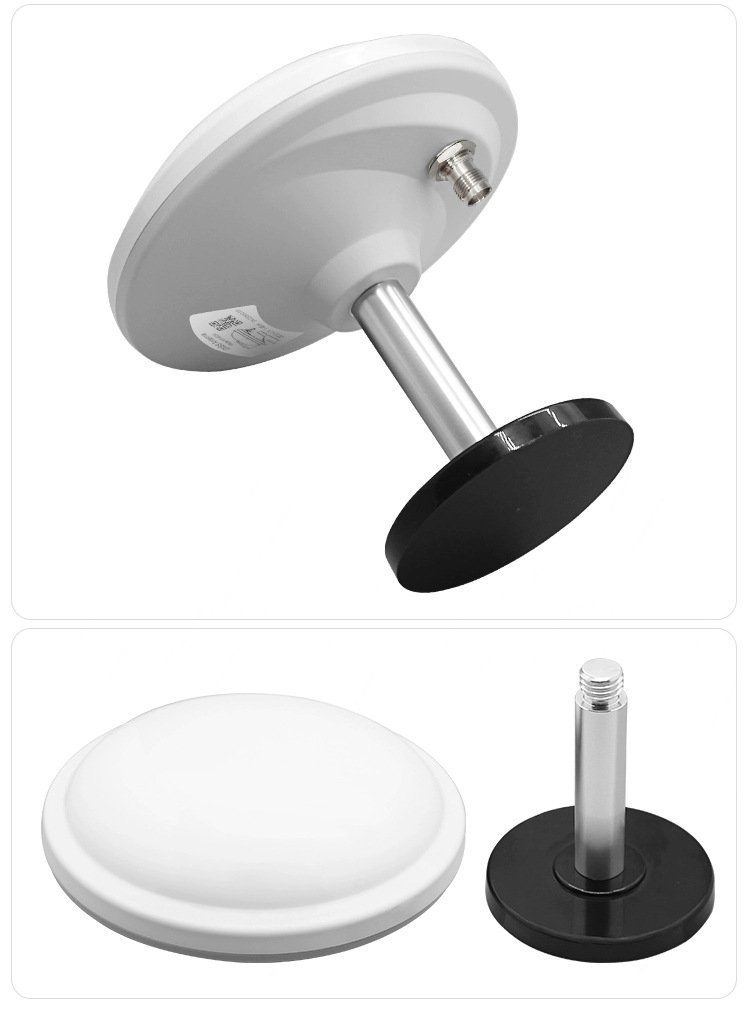

Yunding Wholesales New Design Magnetic RTK GNSS GPS GOLNASS Mushroom Type Antenna for Navigation & Positioning

Cost-effective

A cost-effective, high-precision measurement antenna with high quality and low price, without compromising performance

Ultra high precision

Can receive GPS, GLONASS,Galileo and Beidou multi-band signals, and can achieve millimeter-level positioning with RTK system

Waterproof and dustproof

Adopt industry-leadingpackaging technology to achieve IP67 waterproof and dustproof grade, and theantenna housing has excellentweather resistance

Easy Installation

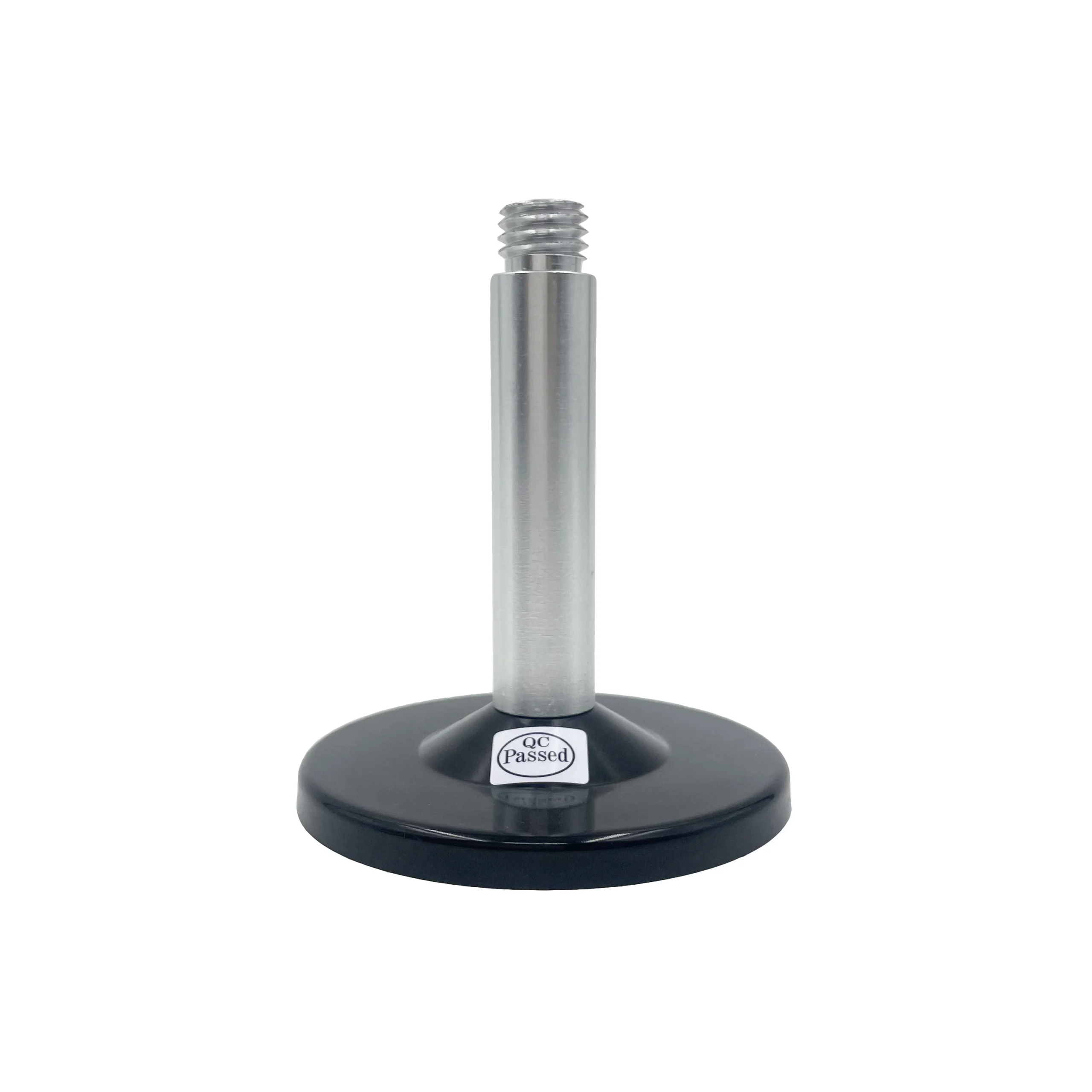

Internal thread installation, firmand vibration-free. With Qitianxin M87D magnetic bracket, it can meet the surveying and mapping operations in various environments

product details

Polarization mode	RHCP
Antenna axis ratio(dB)	≤3DB
Horizontal coverage	0~360°
Nominal Impedance	50ohm
VSWR	≤1.5
Maximum gain(dB)	5.5dBi
Phase center error(mm)	±2mm
Connector	TNC-K
LNA Gain(dB)	L1: 38±2dB(typical) L2:40±2dB
Noise Figure(dB)	≤1.8dB
Output/Input VSWR	≤2.0
