15.2mm 2.4G Wifi Antenna Internal Copper Spring Antenna 2dBi Gain
15.2mm 2.4G Wifi Antenna Internal Copper Spring Antenna 2dBi Gain
- Can be welded directly, and the right angle welding tink is convenient for welding
product details

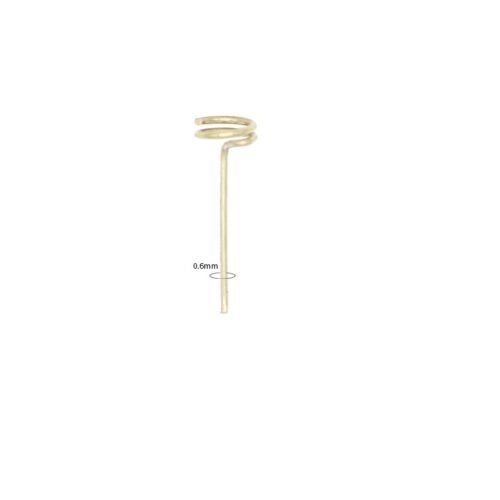

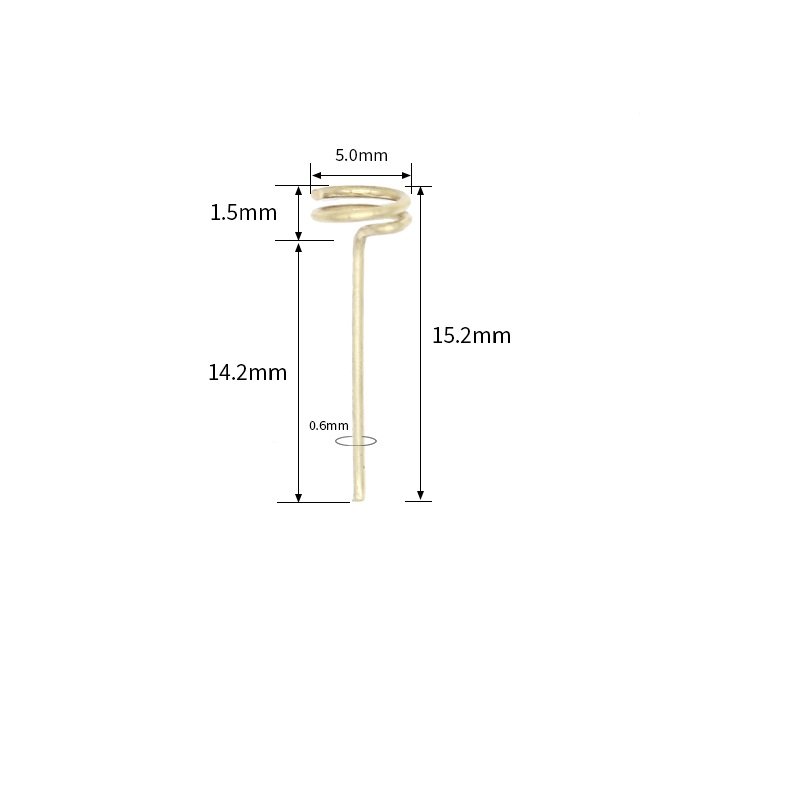

15.2mm internal copper spring antenna covering the 2.4 GHz WiFi band with 2 dBi gain, designed for direct soldering into space-constrained wireless boards.
Specifications
- Frequency Range: 2.4G
- Gain: 2dBi
- V.S.W.R: ≤2.0
- Impedance: 50Ω
- Polarization: linearity
- Radiation direction: omnidirectional
- Antenna Name: spring/helix antenna
- Connector type: Direct welding
- Power capacity: 2W
- Antenna material: Pure copper
- Operating Temperature: -40℃~+80℃
- Storage Temperature: -40℃~+85℃
Applications
Suited to embedding inside WiFi dongles, Bluetooth and ZigBee modules, wireless sensor nodes and smart-home devices working in the 2.4 GHz band.
Custom OEM/ODM orders are supported.
