22*22mm Metal Stamping Antenna for Satellite Dish Antenna Metal Stamping Antenna

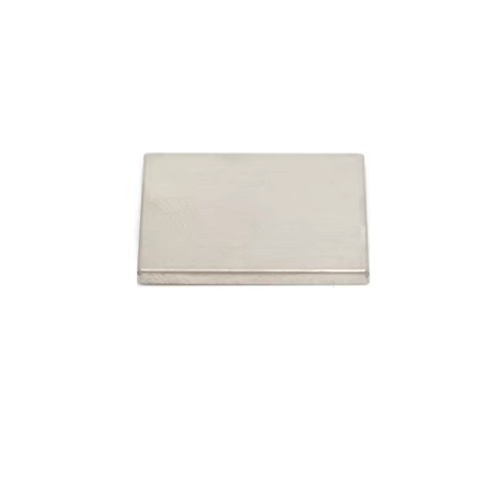

Flat square silver metal stamping antenna on a white background.

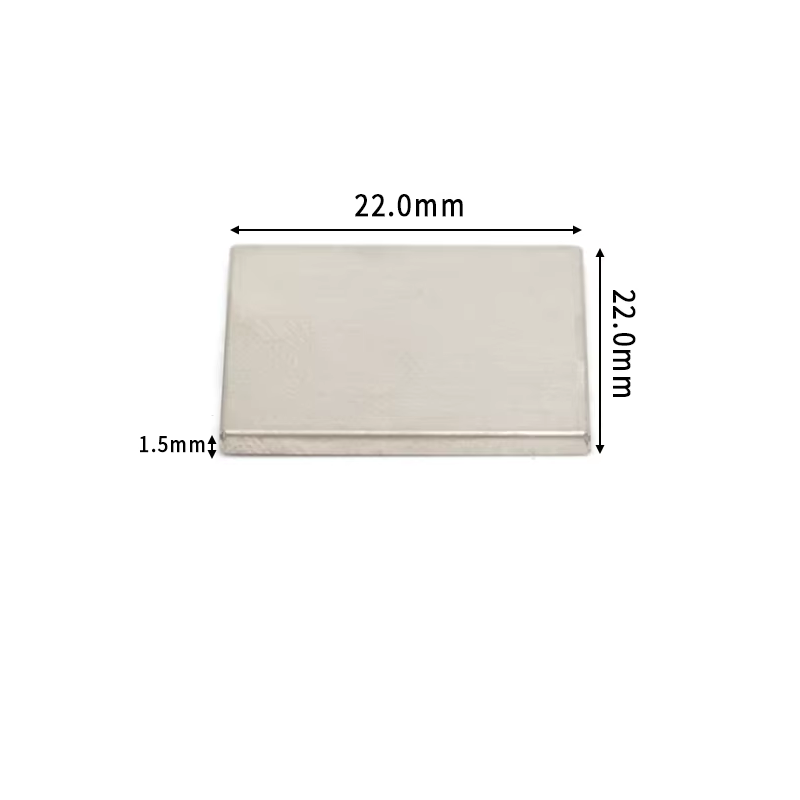

Flat square stamped metal antenna plate 22mm by 22mm and 1.5mm thick

22*22mm Metal Stamping Antenna for Satellite Dish Antenna Metal Stamping Antenna

Highly conductive High tensile elasticity, The conductivity of the antenna is strong and has a good compression and stretching effect
ANTI-CORROSION, ANTI-TEMPERATURE, LONG SERVICE LIFEService life test more than 20,000 times Salt spray test 48hours, strict quality control
High impedance matching Antenna and device impedance matchingReduces power loss in wireless devices

product details

This 22 x 22 mm metal stamping antenna covers the 2.4G band and is intended for integration into satellite dish electronics and similar RF receiving equipment. It connects by direct welding and radiates omnidirectionally, providing an internal antenna for 2.4 GHz Wi-Fi boards.

Specifications

Frequency Range: 2.4G
Gain: 2dBi
V.S.W.R: ≤2.0
Impedance: 50Ω
Polarization: linearity
Radiation Direction: omnidirectional
Antenna Name: Shrapnel antenna
Connector Type: Direct welding
Power Capacity: 2W
Antenna Material: Stainless steel
Operating Temperature: -40℃~+80℃
Storage Temperature: -40℃~+85℃

Applications

The 2.4G band is used by Wi-Fi, Bluetooth, ZigBee, and many IoT modules, so this antenna suits wireless receivers, gateways, and embedded RF boards. The omnidirectional pattern and direct-weld mount simplify installation inside the equipment.

Yunding supports OEM/ODM production with size and tuning customization.
