23mm Yunding Factory Price Built-in WiFi Dual-band 2.4G&5.8G High-gain Stamped Antenna

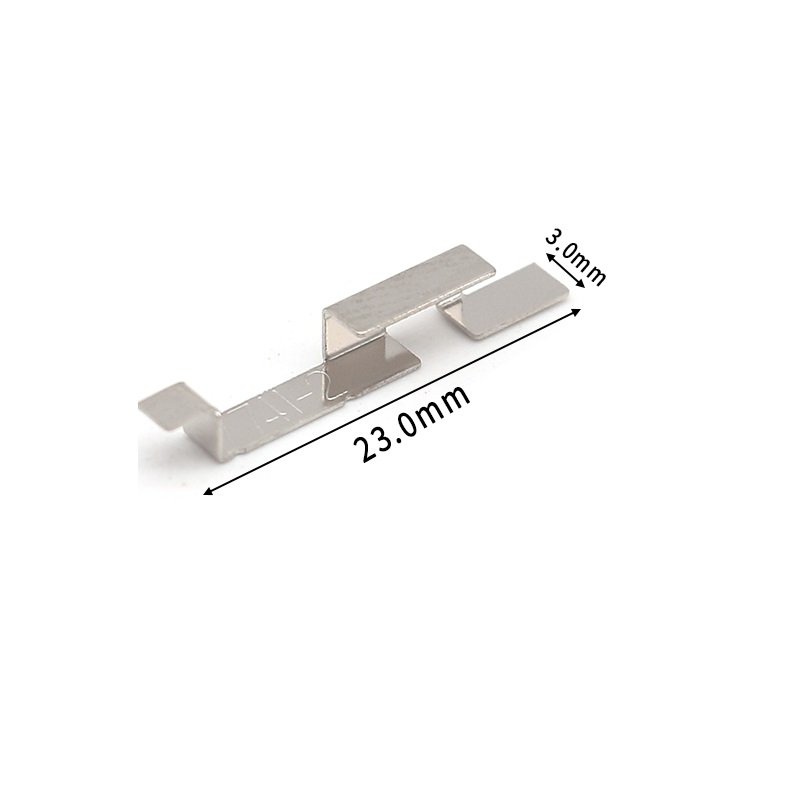

Compact stamped WiFi antenna 23mm long and 3mm thick with folded tab

23mm Yunding Factory Price Built-in WiFi Dual-band 2.4G&5.8G High-gain Stamped Antenna

Highly conductive High tensile elasticity, The conductivity of the antenna is strong and has a good compression and stretching effect
ANTI-CORROSION, ANTI-TEMPERATURE, LONG SERVICE LIFEService life test more than 20,000 times Salt spray test 48hours, strict quality control
High impedance matching Antenna and device impedance matchingReduces power loss in wireless devices

product details

This 23 mm stamped antenna from Yunding is a direct-weld internal option for 2.4G&5.8G dual-band Wi-Fi equipment. The compact length suits space-constrained boards in routers, range extenders, and wireless modules where the aerial stays inside the housing.

Specifications

Connector Type: Direct welding
Frequency Range: 2.4G&5.8G
Gain: 2dBi
V.S.W.R: ≤2.0
Impedance: 50Ω
Polarization: linearity
Radiation Direction: omnidirectional
Antenna Name: Shrapnel antenna
Power Capacity: 2W
Antenna Material: Stainless steel
Operating Temperature: -40℃~+80℃
Storage Temperature: -40℃~+85℃

Applications

Applications include dual-band Wi-Fi routers, range extenders, wireless gateways, and IoT modules. The omnidirectional radiation pattern gives coverage in all directions around the device, and the stainless-steel body is suited to board-level assembly.

Yunding supports OEM and ODM orders, including customized dimensions to match your enclosure.
