40.1X9mm High Gain 3dbi Internal 2.4G Flexible FPC Wireless Wifi Communication Antenna

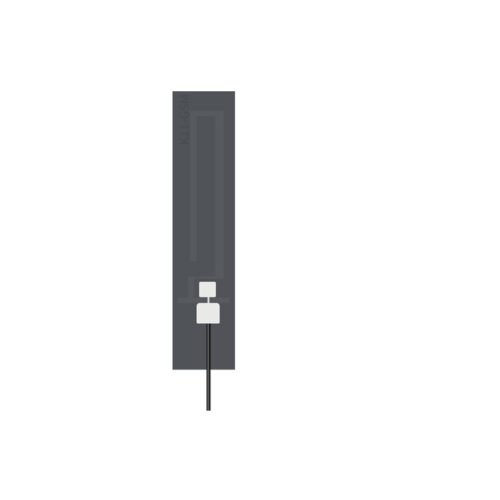

Rectangular dark grey FPC antenna with visible traces and an attached black cable

Narrow FPC antenna 40.1mm tall and 9mm wide with traced meander line

40.1X9mm High Gain 3dbi Internal 2.4G Flexible FPC Wireless Wifi Communication Antenna

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

The 40.1 x 9 mm internal FPC antenna is a slim element positioned for 2.4 GHz WiFi communication inside a host device. While the range spans 698-2700 MHz, this part targets wireless module boards in compact enclosures.

Specifications

Antenna Material: Pure copper
Frequency Range: 698-2700MHz
Gain: 3dBi
V.S.W.R: ≤1.5
Impedance: 50Ω
Polarization: linearity
Antenna Name: FPC internal antenna
Connector Type: IPEX / Direct welding (Customized)
Antenna Cable: RG1.13 or Customized
Operating Temperature: -30℃ ~ +75℃
Application Field: Wireless monitoring / WIFI / ZIGBEE / Bluetooth module / Smart home / Smart wear

Applications

The 2.4 GHz ISM band is used by WiFi, Bluetooth, and ZigBee links, so it suits WiFi communication modules, wireless gateways, and smart-home devices. The broader 698-2700 MHz range also covers 4G LTE and GSM service.

Yunding offers OEM and ODM production with size, cable, and connector adjustments for internal wireless devices.
