45.1X9.5mm Yunding Customized 2.4/5.8G Internal Antenna Soft Material FPC Patch Antenna For Communication

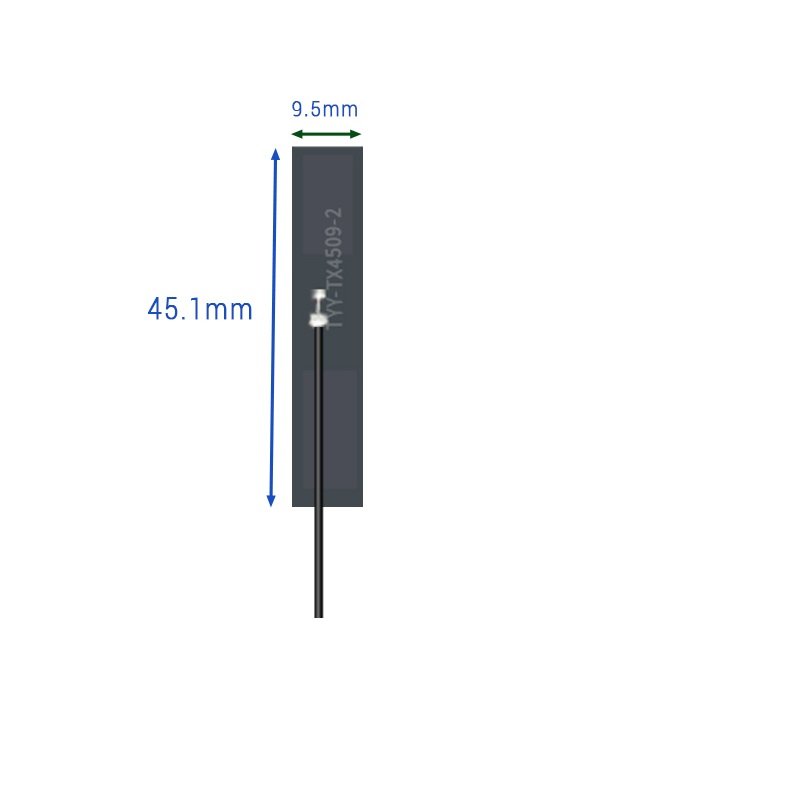

Black rectangular FPC antenna marked TYY-TX4509-2 with black cable and connector.

Slim internal antenna 45.1mm tall and 9.5mm wide with side coax exit

45.1X9.5mm Yunding Customized 2.4/5.8G Internal Antenna Soft Material FPC Patch Antenna For Communication

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This FPC patch antenna is a compact 45.1×9.5 mm internal antenna for dual-band 2.4/5.8G communication equipment. The soft substrate allows mounting along curved surfaces inside routers, modules, and gateways, with an IPEX or direct welding connection and an RG1.13 feed cable.

Specifications

Antenna name: FPC internal antenna
Frequency range: 2400-2500 MHz / 5100-5800 MHz
Gain: 3.5 dBi
V.S.W.R: <=1.5
Impedance: 50 Ohm
Polarization: linear
Connector type: IPEX / direct welding (customized)
Antenna material: pure copper
Antenna cable: RG1.13 or customized
Operating temperature: -30 deg C ~ +75 deg C

Applications

Applications include wireless monitoring, Wi-Fi, ZigBee, Bluetooth module, smart home, and smart wearable devices. The dual band coverage suits both 2.4 GHz short-range radio links and 5.8 GHz Wi-Fi connections.

Yunding Antenna offers OEM and ODM support for cable, connector, and size customization.
