40mm Customized 2.4G/GSM LTE Internal FPC Patch Antenna 4dBi Gain GSM 4G Flexible FPC with Horizontal Polarization for Connectors

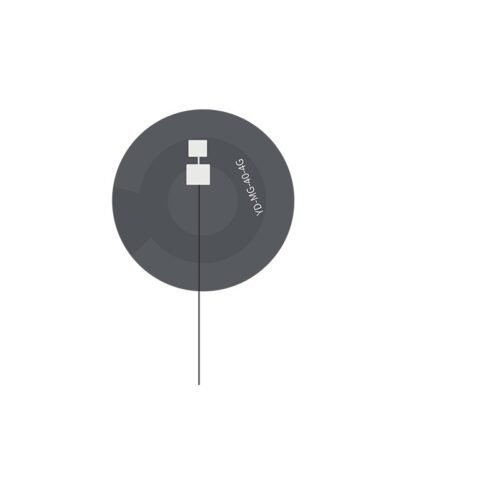

Round dark grey FPC antenna with attached thin cable and YD-MG-40-4G text

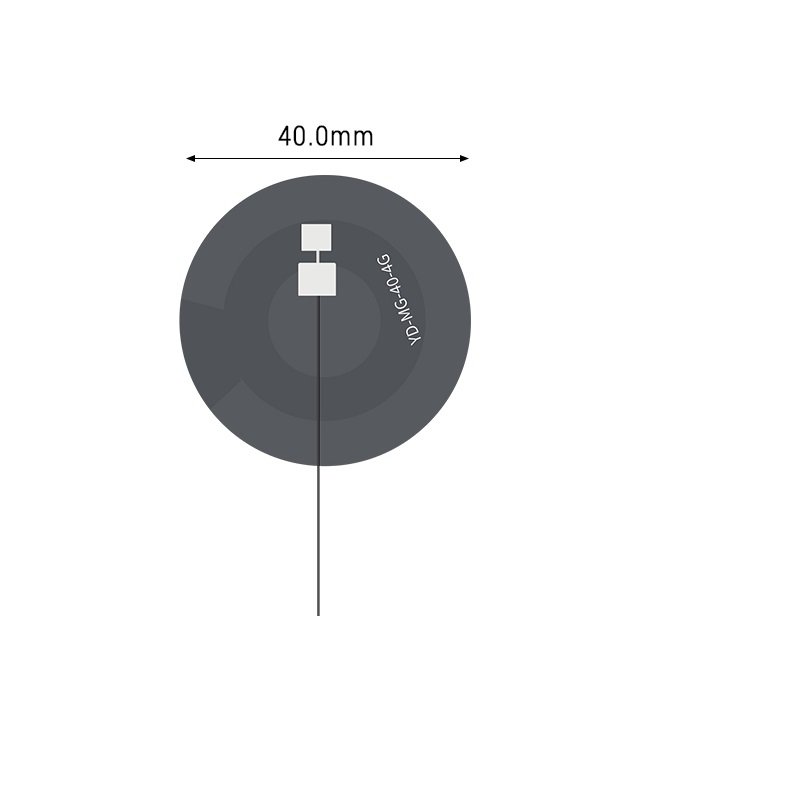

Round flexible patch antenna 40mm across with centre feed pads and lead

40mm Customized 2.4G/GSM LTE Internal FPC Patch Antenna 4dBi Gain GSM 4G Flexible FPC with Horizontal Polarization for Connectors

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This 40 mm internal FPC patch antenna is named for GSM and LTE service with 4 dBi gain and horizontal polarization. The flexible body is a drop-in radiator for 4G modules that must keep the antenna inside a compact enclosure.

Specifications

Frequency Range: 698-2700MHz
Gain: 4dBi
Impedance: 50Ω
V.S.W.R: ≤1.5
Polarization: linearity
Antenna Name: FPC internal antenna
Connector Type: IPEX / Direct welding (Customized)
Antenna Material: Pure copper
Antenna Cable: RG1.13 or Customized
Operating Temperature: -30℃ ~ +75℃
Application Field: Wireless monitoring / WIFI / ZIGBEE / Bluetooth module / Smart home / Smart wear

Applications

With 698-2700 MHz coverage, the antenna suits 4G LTE routers, GSM/LTE modules, IoT gateways, and wireless monitoring units. ZigBee and Bluetooth modules and smart-home controllers within the band are also valid applications.

Yunding Antenna offers OEM and ODM service, with customized connectors, cables, and antenna dimensions.
