45.5X36.8mm Custom 13.56MHz Flexible NFC Antenna for Access Control Vertical Polarization

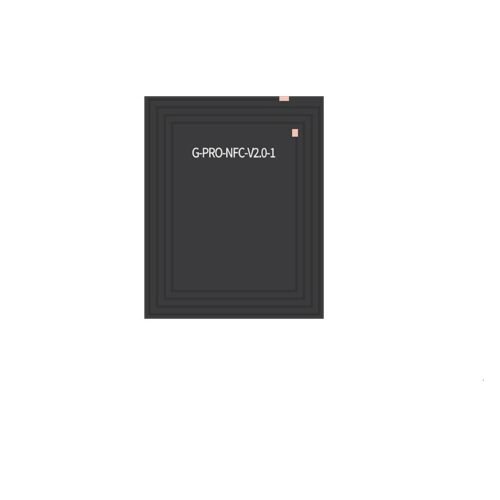

Black rectangular flexible NFC antenna with copper pads and G-PRO-NFC-V2.0-1 text

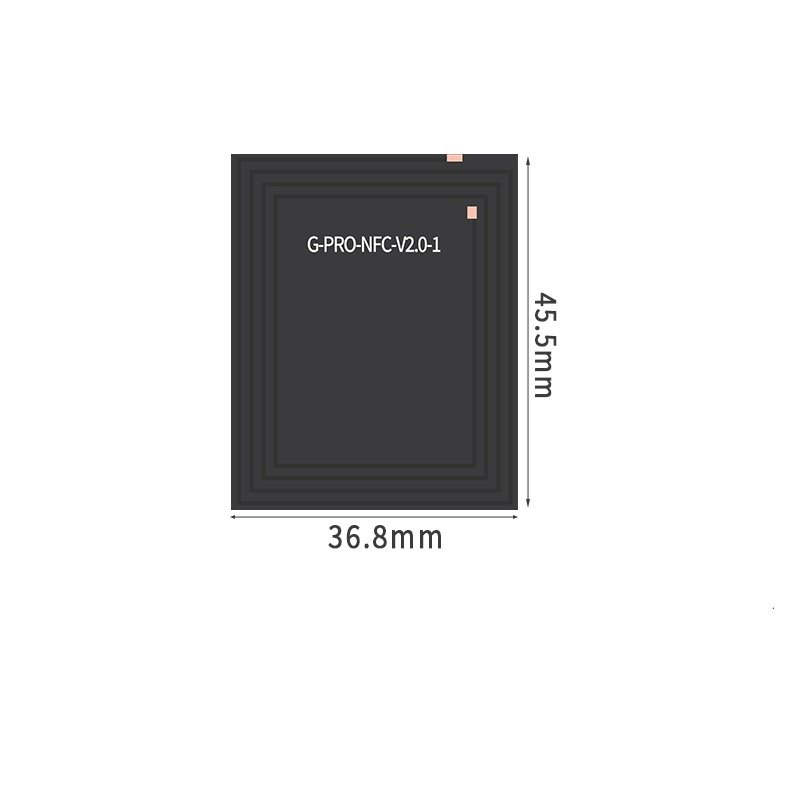

Square NFC antenna 45.5mm by 36.8mm with corner copper terminals

45.5X36.8mm Custom 13.56MHz Flexible NFC Antenna for Access Control Vertical Polarization

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

This 45.5 x 36.8 mm flexible NFC antenna is built to custom specifications with vertical polarization for access control applications. At 13.56 MHz it uses an IPEX or direct-weld connection to fit different reader boards.

Specifications

Connector Type: IPEX / Direct welding (Customized)
Frequency Range: 13.56MHz
Gain: 4dBi
V.S.W.R: ≤1.5
Impedance: 50Ω
Polarization: linearity
Antenna Name: NFC internal antenna
Antenna Material: Pure copper
Antenna Cable: RG1.13 or Customized
Operating Temperature: -30℃ ~ +75℃
Application Field: Wireless monitoring / WIFI / ZIGBEE / Bluetooth module / Smart home / Smart wear

Applications

NFC and RFID services on 13.56 MHz include access control, contactless payment, identification, and smart-home unlocking. It likewise applies to wireless monitoring, WiFi, ZigBee, and Bluetooth module terminals and smart wear devices.

Yunding Antenna accepts OEM and ODM orders with custom dimensions, connectors, and tuning per project.
