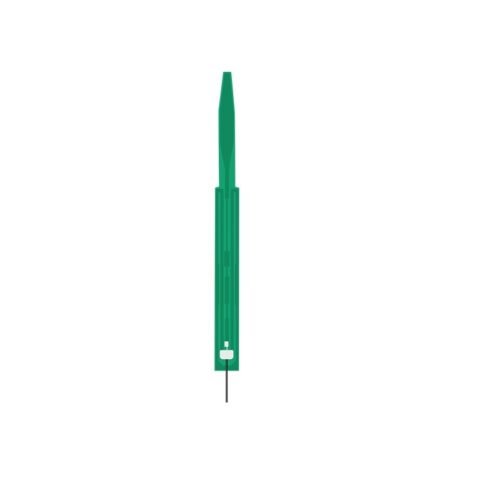

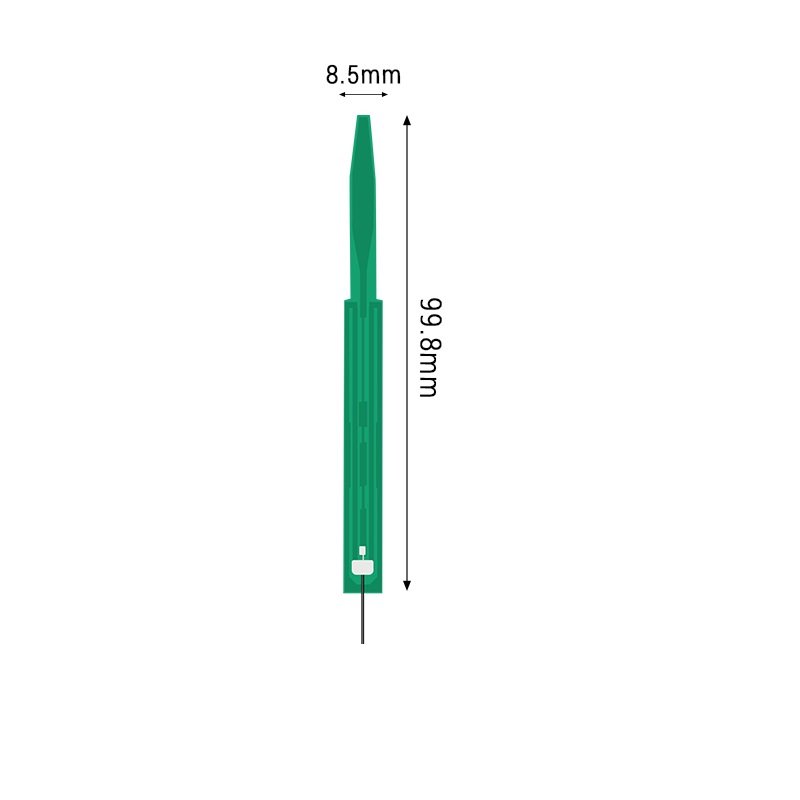

99.8×8.5mm Internal Built-in 4G LTE 3G 2.4G WIFI GSM IPX U.FL Flexible PCB Antenna Manufacturer for GSM Module

Wireless Module with Extended Frequency Range and Built-in Antenna
The coaxial cable and connectors support customization. Common connectors include IPEX1/IPEX2/IPEX3/IPEX4/Welding stripping
Signal Enhanced, with 3M Adhesive Backing, Widely Applicable
Possesses own anechoic chamber and a professional R&D team, capable of supporting built-in antenna design, customization, and tuning

product details

Item	Specifications
Antenna	Frequency Range	4G
	Gain	5dBi
	V.S.W.R	≤1.5
	Impendance	50Ω
	Polarization	linearity
Mechanical	Antenna Name	PCB internal antenna
	Connector type	IPEX/Direct welding( Customized)
	Antenna material	Pure copper
	Antenna cable	RG1.13 or Customized
Environmental	Operating Temperature	-30℃~+75℃
Environmental	Application field	Wireless monitoring/WIFI/ZIGBEE/Bluetooth module/Smart home/Smart wear
