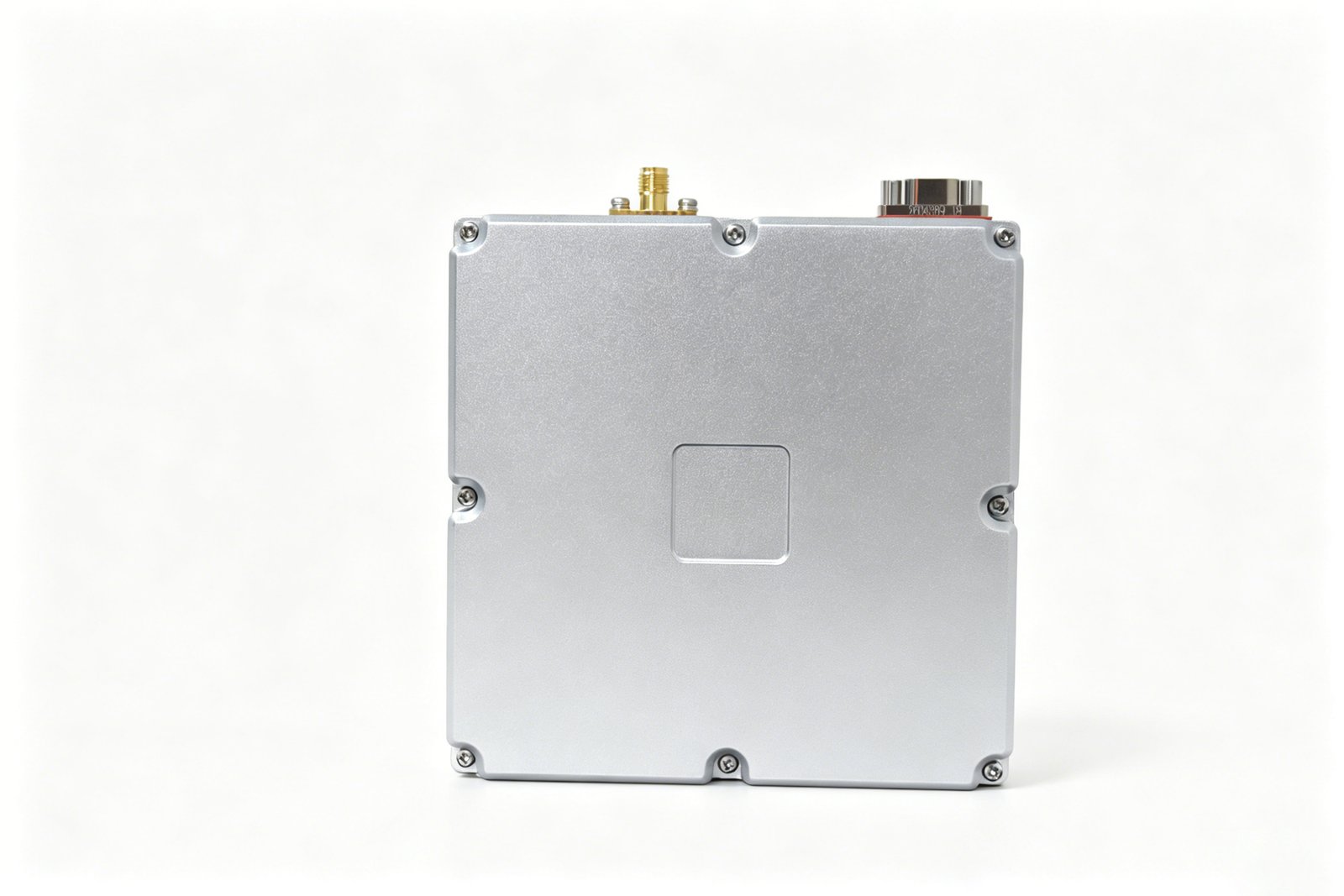

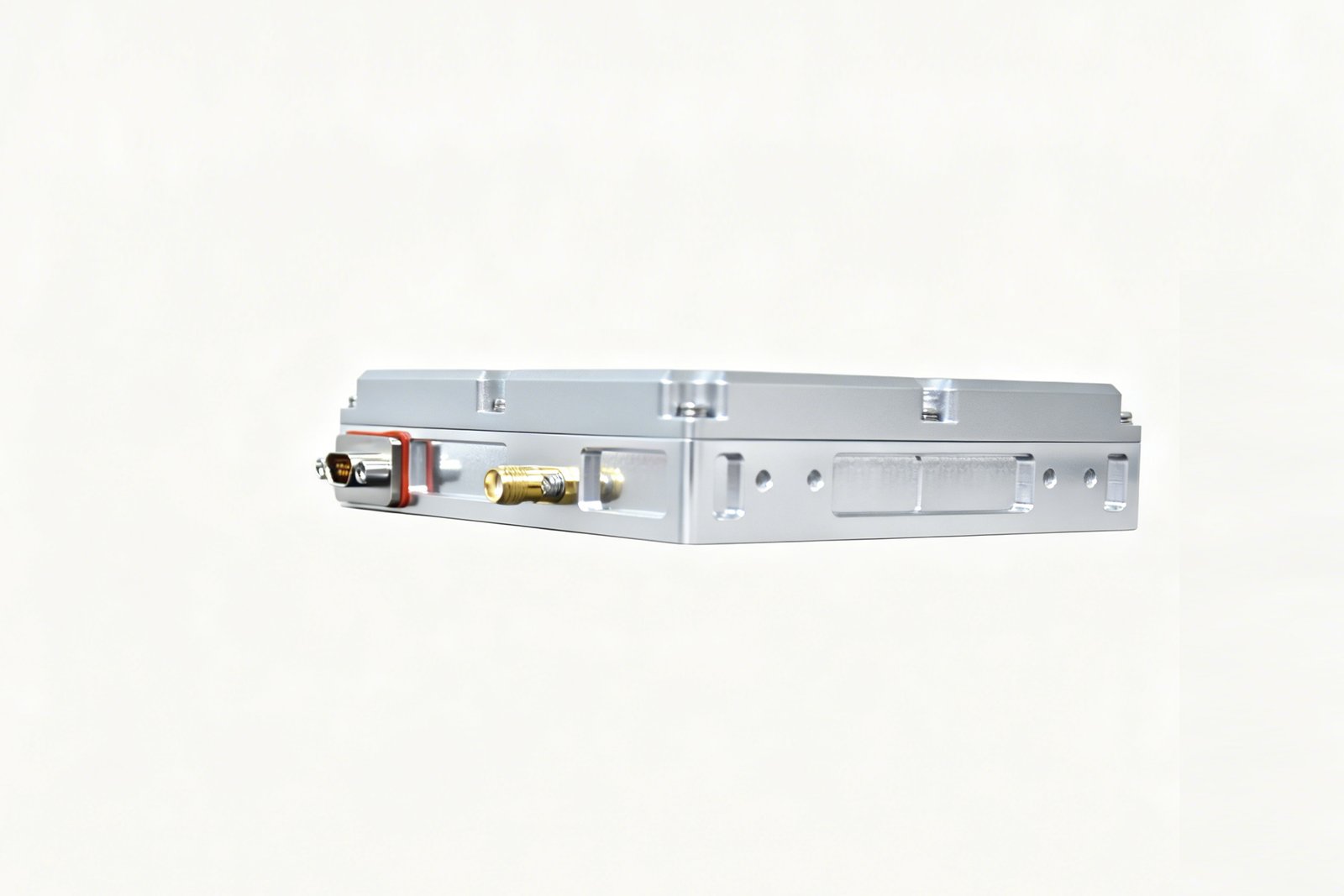

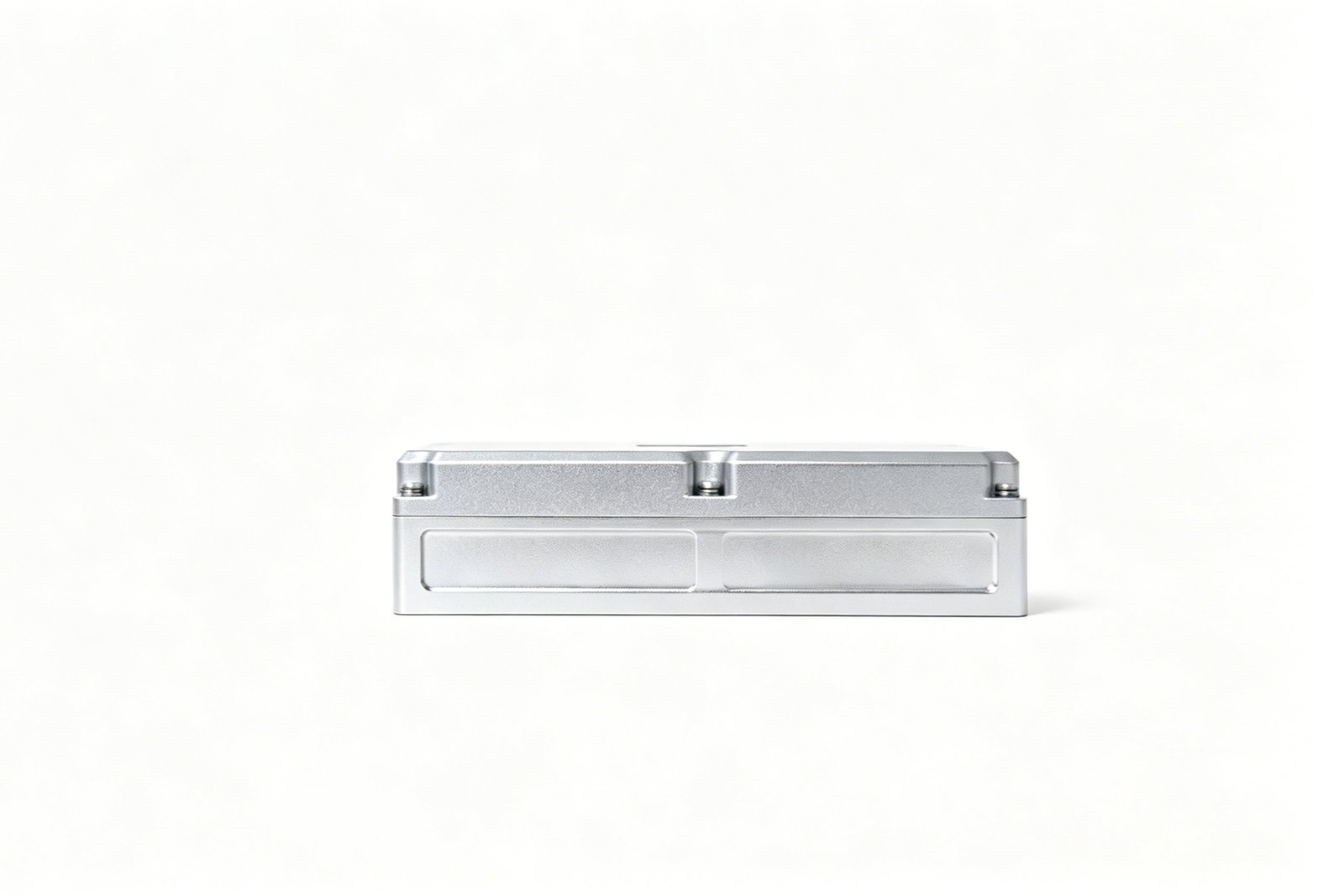

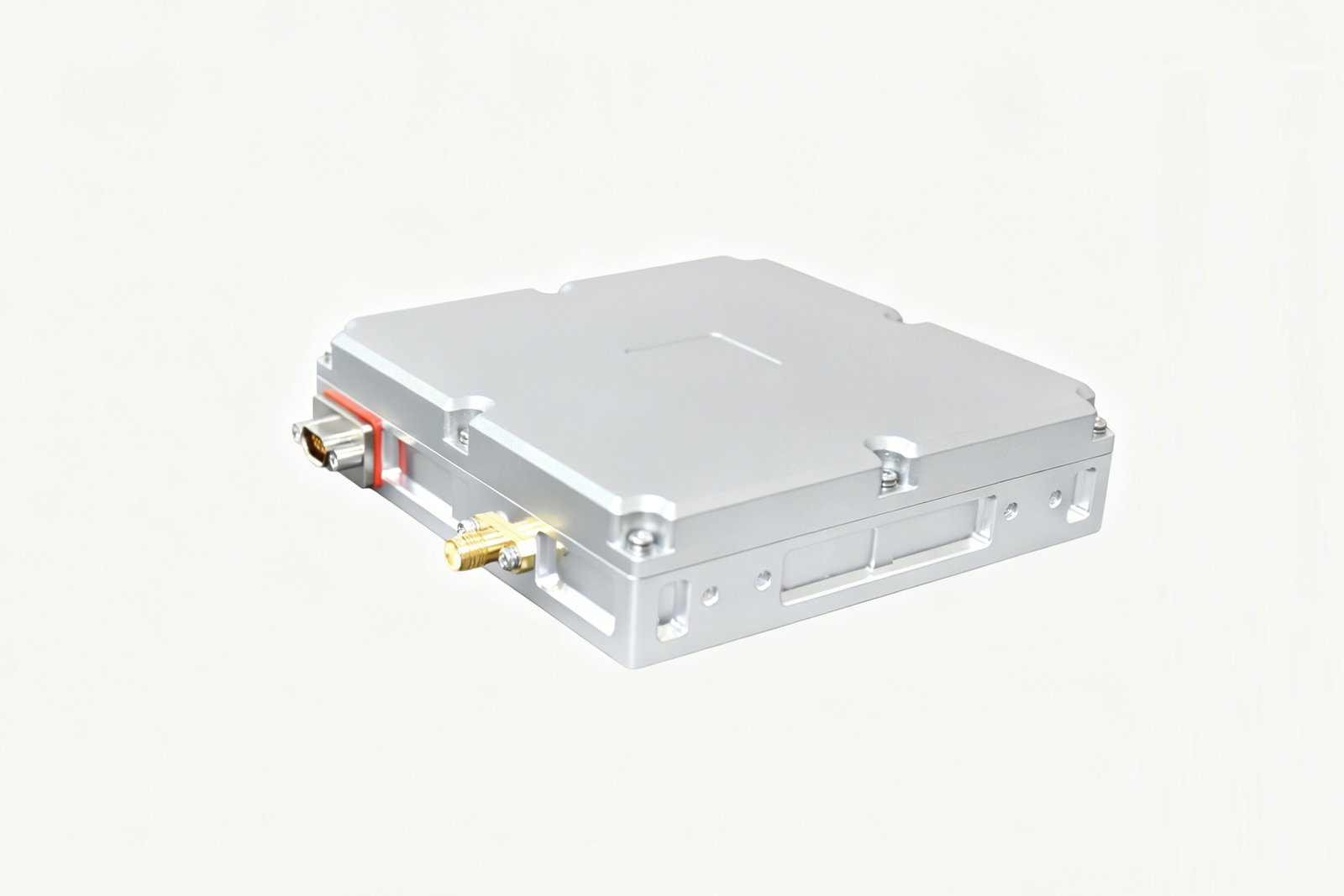

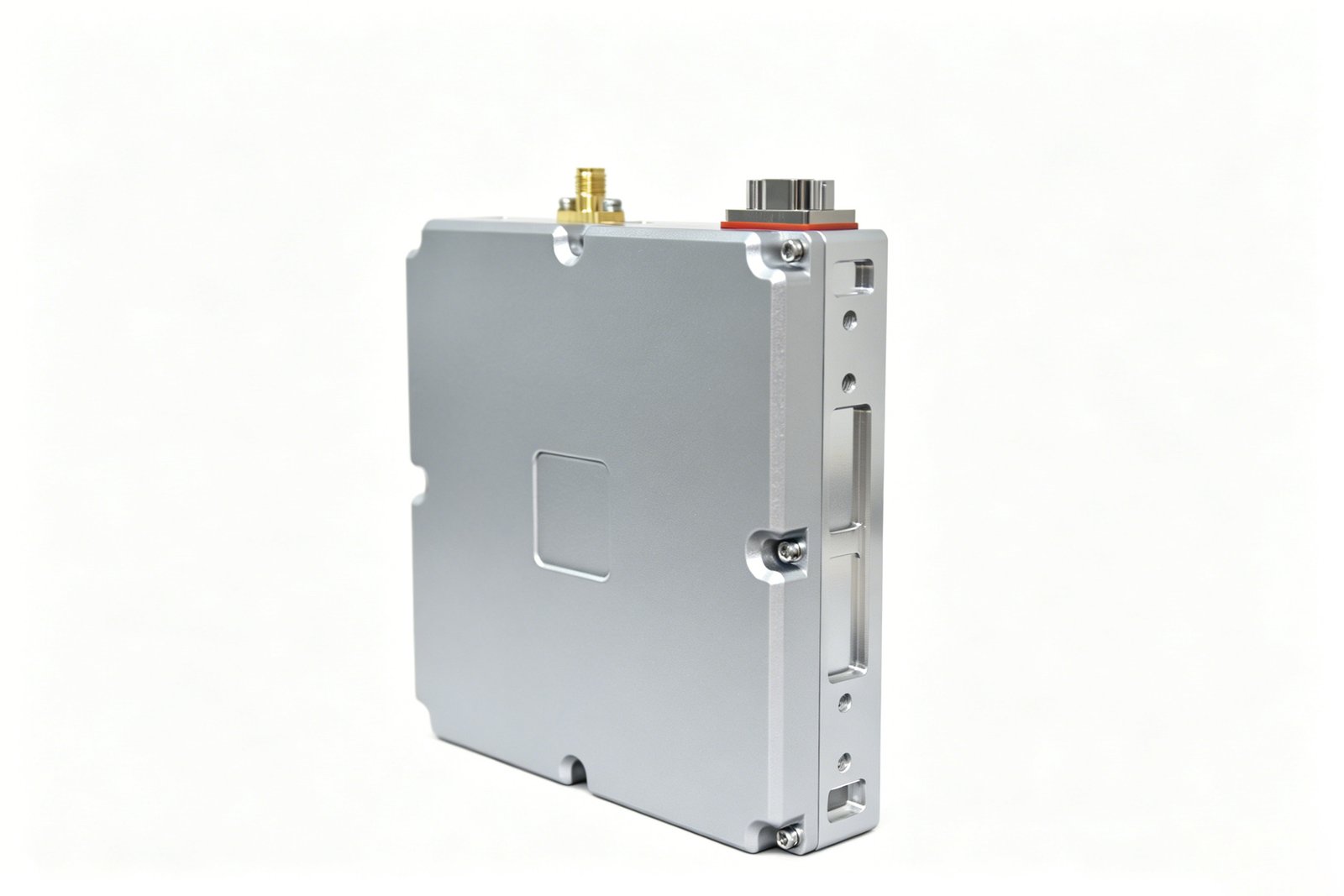

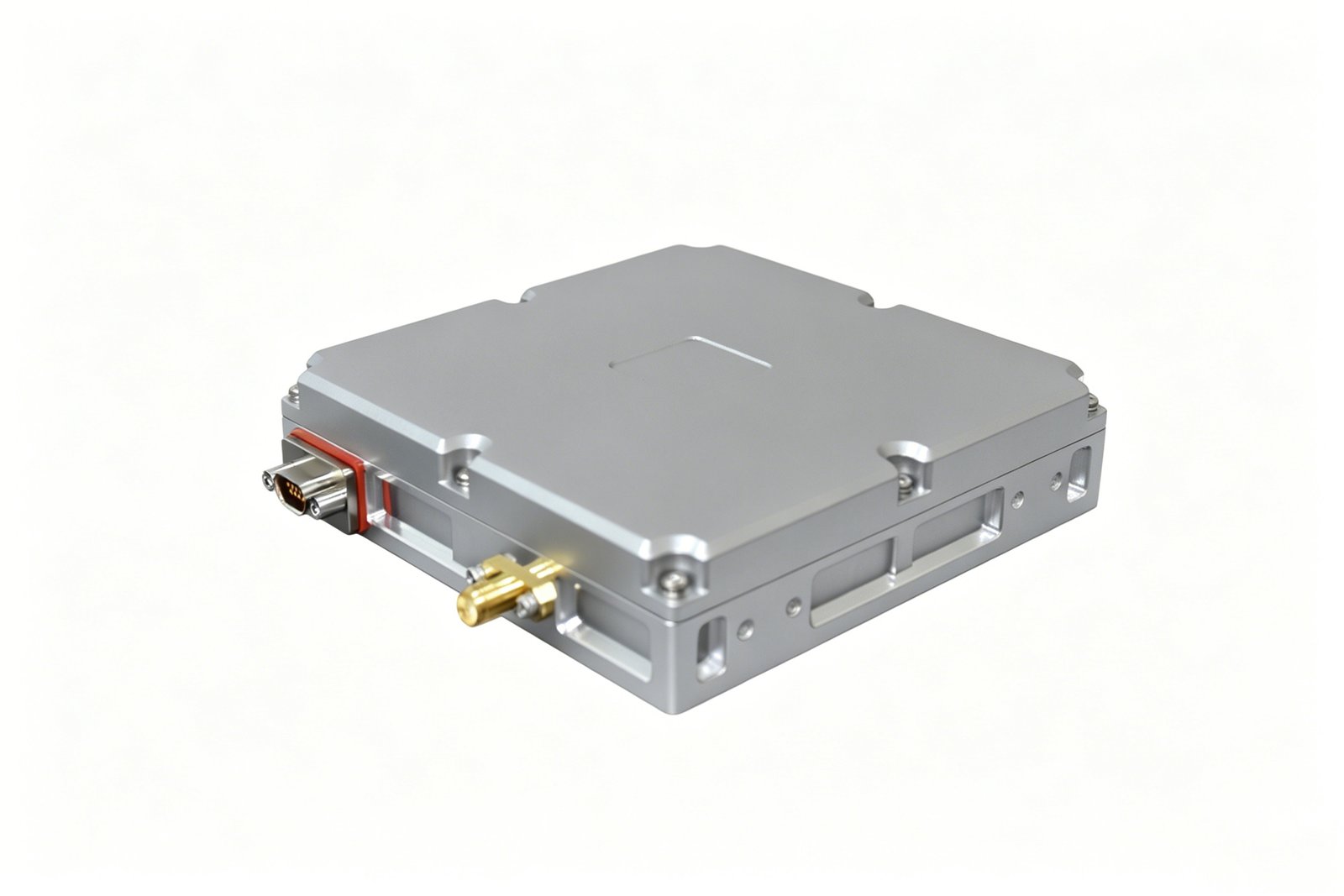

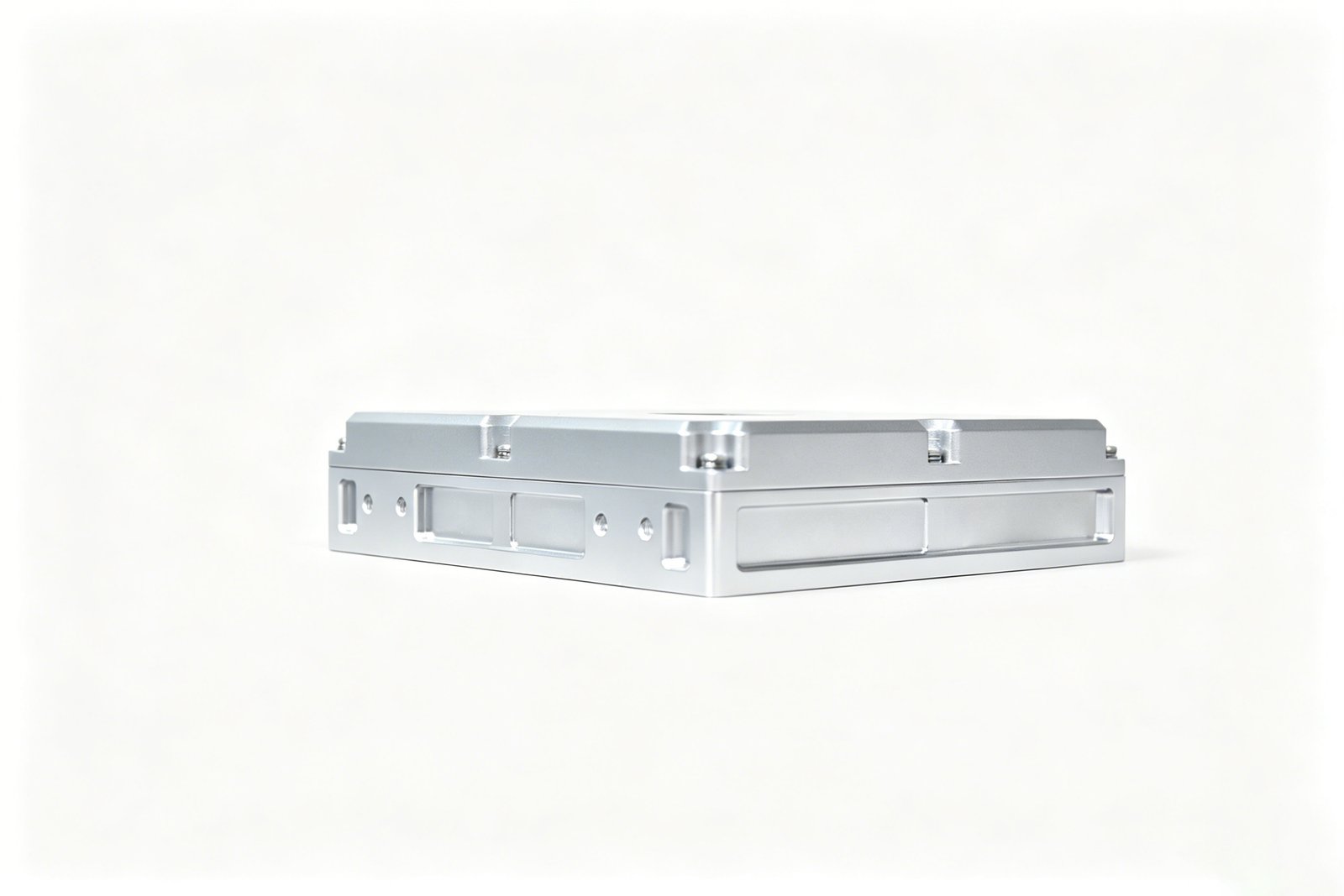

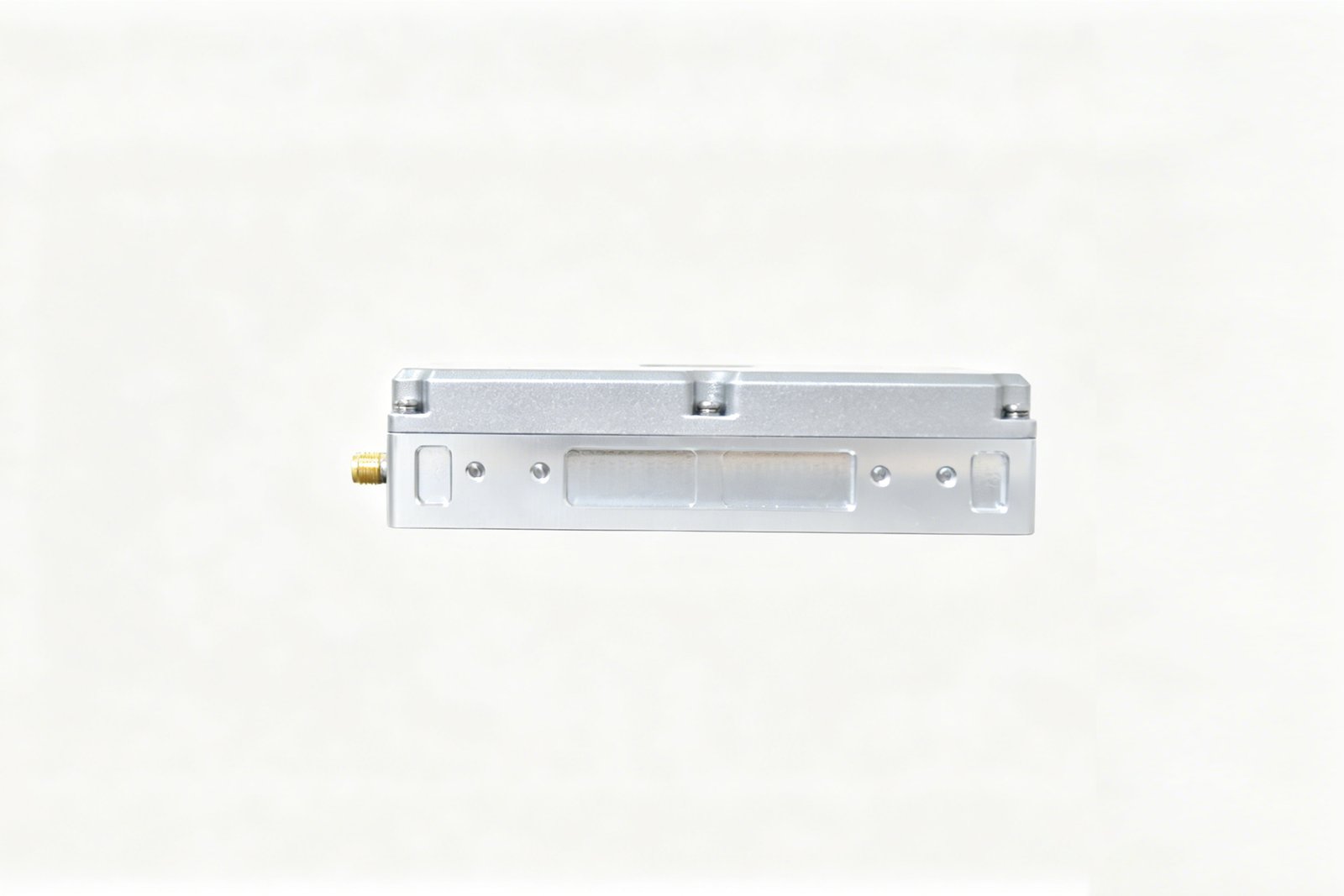

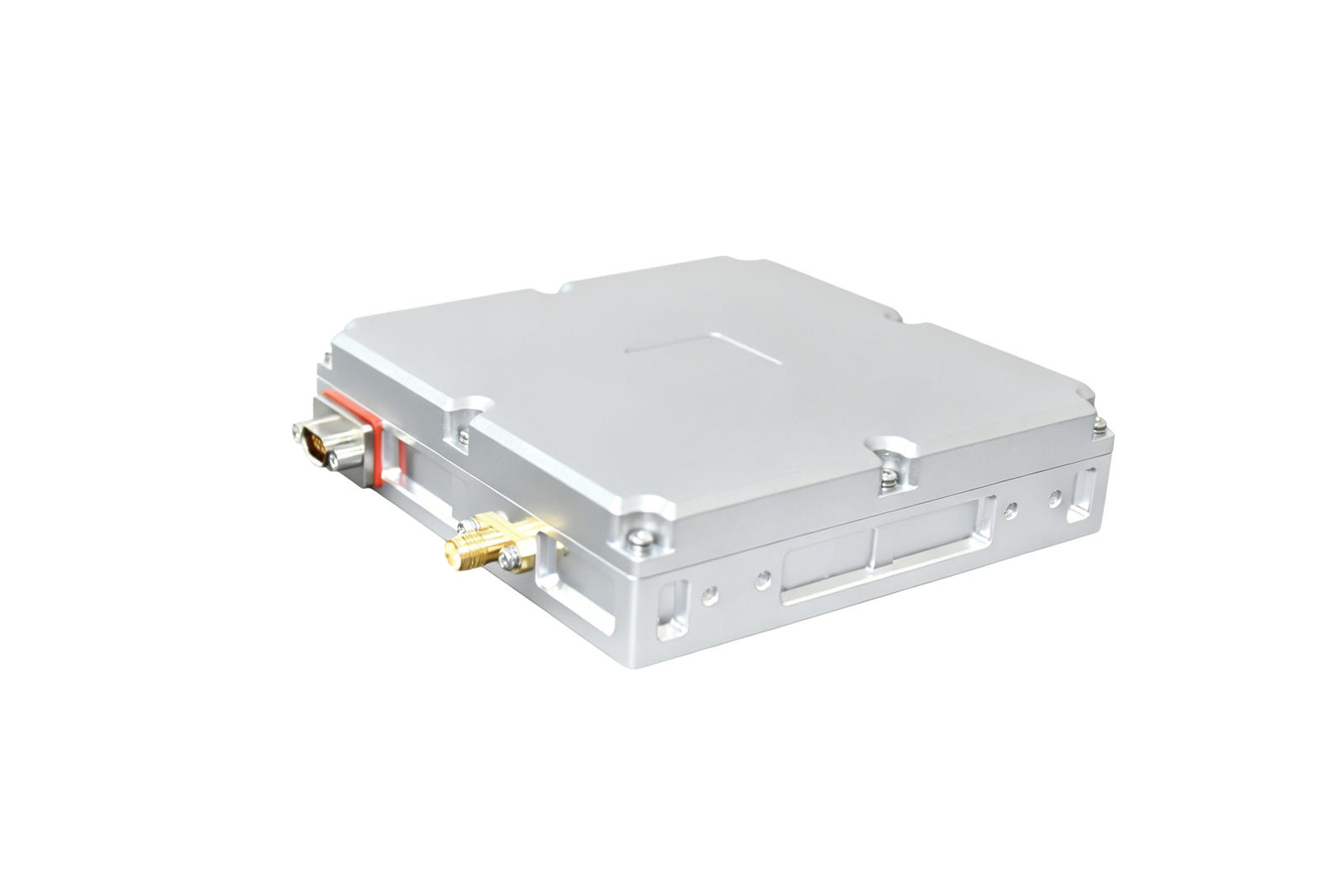

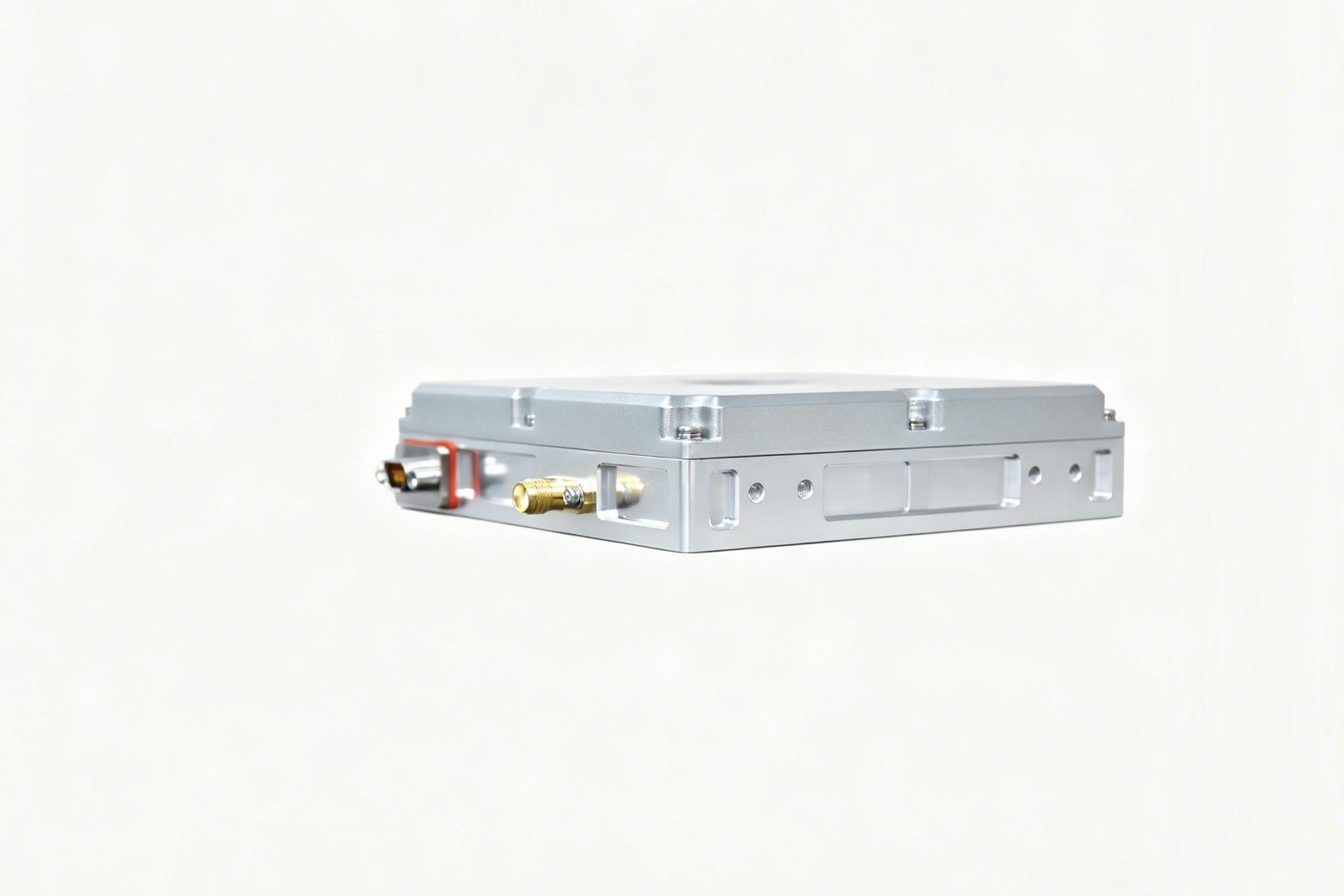

YDAJ-P4100D 100*100mm Dual 4-Element High-Performance Anti-Jamming GNSS Antenna BDS B1 / GPS L1 / Galileo E1+L5 for Industrial Drones
YDAJ-P4100D 100*100mm Dual 4-Element High-Performance Anti-Jamming GNSS Antenna BDS B1 / GPS L1 / Galileo E1+L5 for Industrial Drones
Main Functions:
Received Frequency Bands: L1+L5 frequency bands: L1:BDS B1I/B1C, GPS_L1, Galileo E1 L5:BDS B2a ,GPS_L5, Galileo E5a
Anti-jamming Types: Capable of resisting various suppression interferences such as broadband,narrowband,frequency- sweeping,pulse as well as the combination of the above interferences;
Built-in receiver, capable of outputting positioning solution results after anti-interference processing.
Support RF output after anti-interference processing.
supports the output of interference monitoring information.
Application:Industrial UAVs, Logistics & Delivery, Power Line Inspection
product details
Type: GPS/GNSS Antenna

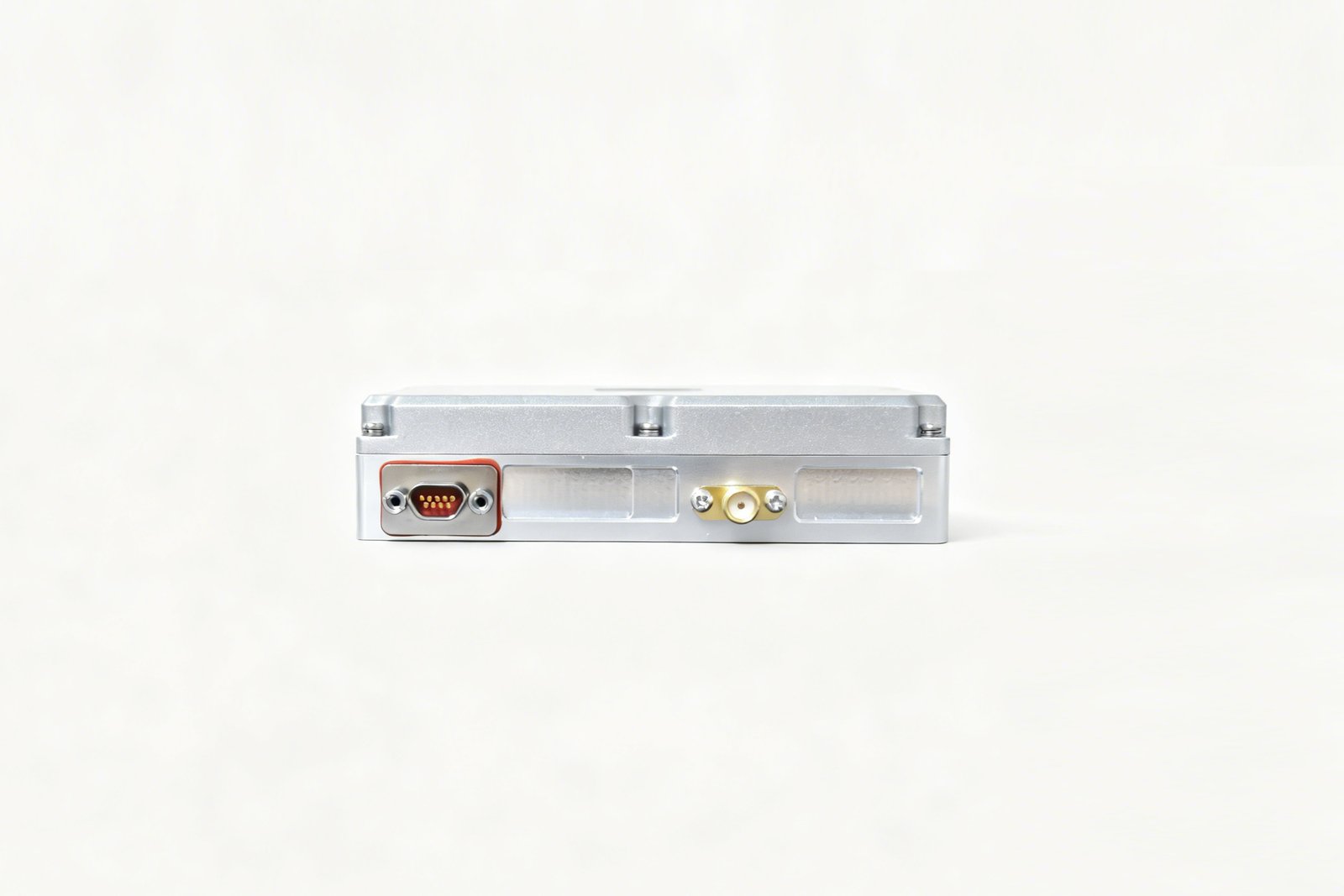

Connectivity: J30J-9ZK+SMA-K
Brand Name: OEM/ODM
Model Number: YDAJ-P4100D
Place of Origin: Guangdong, China
Number of Array Elements: Dual 4-element

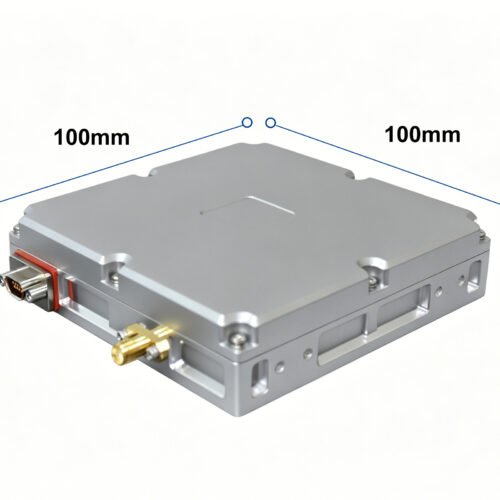

Size: 100mmx100mmx24.5mm (+0.5mm)
Weight: ≤400g
Power consumption: ≤ 11W (Typical ,continuous mode) , ≤ 15W ( AJ active)
Frequencies: B1/L1/E1+L5
Anti-single Broadband Capability: Interference-to-signal ratio ≥ 115dB@-130dBm
Anti-three Broadband Capability: Interference-to-signal ratio ≥ 95dB@-130dBm
Supply voltage: DC12V~36V
Temperature range: -40°C~+70°C
Packaging and delivery
Selling Units: Single item
Single package size: 20X10X10 cm
Single gross weight:1.000 kg
