16.8mm Built-in Stamped Antenna Manufacturer Price WiFi 2.4G Omnidirectional Internal Antenna

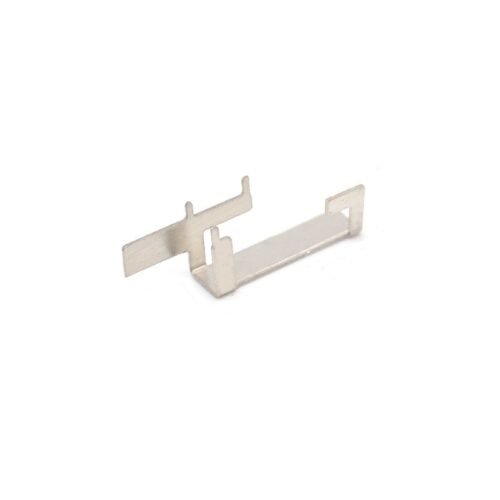

Silver metal built-in stamped antenna with PCB mounting pins

Stamped metal WiFi antenna 16.8mm long with a 6mm upright contact tab

16.8mm Built-in Stamped Antenna Manufacturer Price WiFi 2.4G Omnidirectional Internal Antenna

Highly conductive High tensile elasticity, The conductivity of the antenna is strong and has a good compression and stretching effect
ANTI-CORROSION, ANTI-TEMPERATURE, LONG SERVICE LIFEService life test more than 20,000 times Salt spray test 48hours, strict quality control
High impedance matching Antenna and device impedance matchingReduces power loss in wireless devices

product details

This 16.8 mm internal stamped antenna is a direct-weld, omnidirectional 2.4G Wi-Fi radiator for manufacturers. It is meant for integration inside wireless devices where an external antenna cannot be used, such as gateways, sensors, and Wi-Fi modules.

Specifications

Antenna Material: Stainless steel
Frequency Range: 2.4G
Gain: 2dBi
V.S.W.R: ≤2.0
Impedance: 50Ω
Polarization: linearity
Radiation Direction: omnidirectional
Antenna Name: Shrapnel antenna
Connector Type: Direct welding
Power Capacity: 2W
Operating Temperature: -40℃~+80℃
Storage Temperature: -40℃~+85℃

Applications

2.4G-band applications include Wi-Fi, Bluetooth, and ZigBee devices, smart-home equipment, and industrial wireless nodes. The compact shrapnel design and 50 ohm impedance match common RF front-end circuits without additional matching hardware.

Yunding provides OEM and ODM services, with size and tuning tailored to your product.
